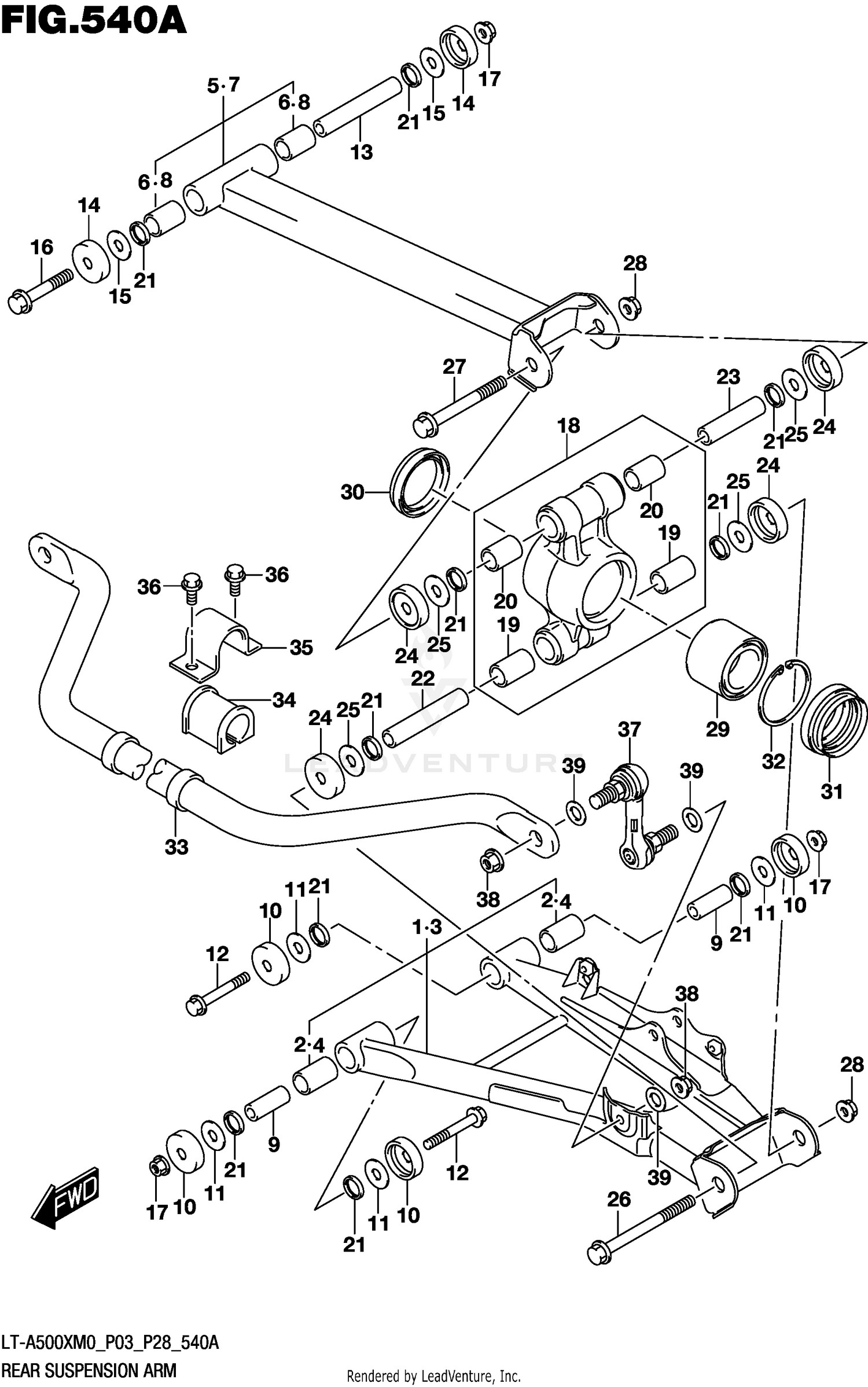

Rear Suspension Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM SET, RR SUSPENSION
61510-34810
|
$36.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BUSH
51236-31G00
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM SET, RR SUSPENSION
61520-34810
|
$38.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#5
ARM SET, RR SUSPENSION
61530-31830
|
$249.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#7
ARM SET, RR SUSPENSION
61540-31830
|
$244.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#9
SPACER, RR SPNSN ARM LOWER
61552-31G10
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, FR SUSPENSION ARM PIVOT
51255-31G10
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08211-10281
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (10X70)
09103-10392
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, RR SPNSN ARM UPPER
61554-31G00
|
$26.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, FR SUSPENSION ARM PIVOT
51255-31G10
|
$22.33 | ||
|
Unavailable |
|||
|
#15
WASHER
08211-10281
|
$2.57 | ||
|
Unavailable |
|||
|
#16
BOLT (10X120)
09103-10388
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT (M10)
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
KNUCKLE SET, RR SUSPENSION
61600-11820
|
$368.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#20
.BUSH, RR KNUCKLE UPPER
61551-31G10
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL
52454-45G00
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, RR SPNSN ARM UPPER
61554-31G00
|
$26.11 | ||
|
Unavailable |
|||
|
#23
SPACER, RR KNUCKLE UPPER
61553-31G10
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, FR SUSPENSION ARM PIVOT
51255-31G10
|
$22.33 | ||
|
Unavailable |
|||
|
#25
WASHER
08211-10281
|
$2.57 | ||
|
Unavailable |
|||
|
#26
BOLT (10X120)
09103-10388
|
$7.61 | ||
|
Unavailable |
|||
|
#27
BOLT (10X96)
09103-10387
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT (M10)
09159-10115
|
$4.46 | ||
|
Unavailable |
|||
|
#29
BEARING,RR HUB
43440-58J00
Superseded by 43440-58J01
|
$96.66 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL, REAR HUB INNER DUST
61615-31G00
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, REAR HUB OUTER DUST
61616-31G00
|
$24.01 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
08331-4162A
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAR, RR STABILIZER
61651-34K00
|
$195.13 | ||
|
Available to order. Add to View Price |
|||
|
#34
BUSH, RR STABILIZER
61652-34K00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, RR STABILIZER
61653-34K00
|
$13.72 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT (8X16)
09103-08283
Superseded by 09103-08570
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#37
JOINT, RR STABILIZER
61660-31G20
|
$104.64 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
09159-10223
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER (10.5X22X2.3)
09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
