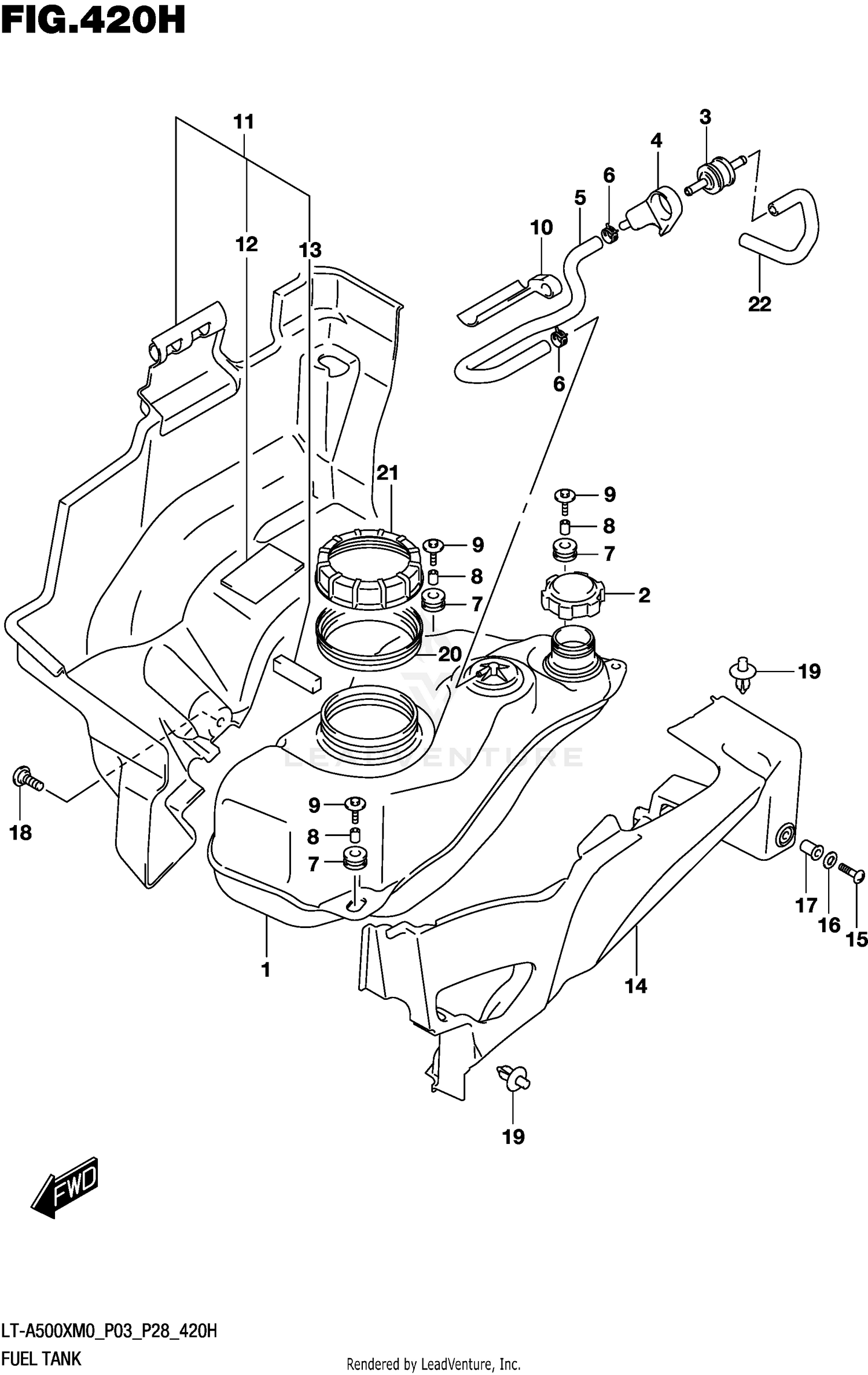

Fuel Tank (lt-a500xpzm0 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL
44100-31G21
|
$361.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY, FUEL TANK
44200-31G00
|
$67.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, CHECK
85451-75100
|
$62.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION,CHECK VALVE
44881-31G00
Superseded by 44881-31G01
|
$4.97 | ||
|
Unavailable |
|||
|
#5
HOSE, FUEL TANK BREATHER NO.1
44434-34K00
|
$35.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
09401-09403
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION,REAR
44281-03G00
Superseded by 44281-03G01
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6.5X10X14)
09180-06293
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X30)
09116-06050
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, SIDE
44541-34K00
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FUEL TANK LOWER
44390-34K00
|
$210.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CUSHION, COVER NO.1
44542-10G00
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CUSHION, COVER NO.2
53146-05G00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,FUEL TANK OUTER
44391-34K01
Superseded by 44391-34K02
|
$31.13 | ||
|
Unavailable |
|||
|
#15
SCREW
02142-0520B
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER (5.5X20X1.4)
09160-05046
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT (M5)
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW (6X16)
09139-06137
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP (D:2.4,ID:23.7)
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GASKET, FUEL PUMP
44596-26J00
|
$37.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
RETAINER, FUEL PUMP
44597-26J00
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, FUEL TANK BREATHER NO.2
44424-18K02
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
