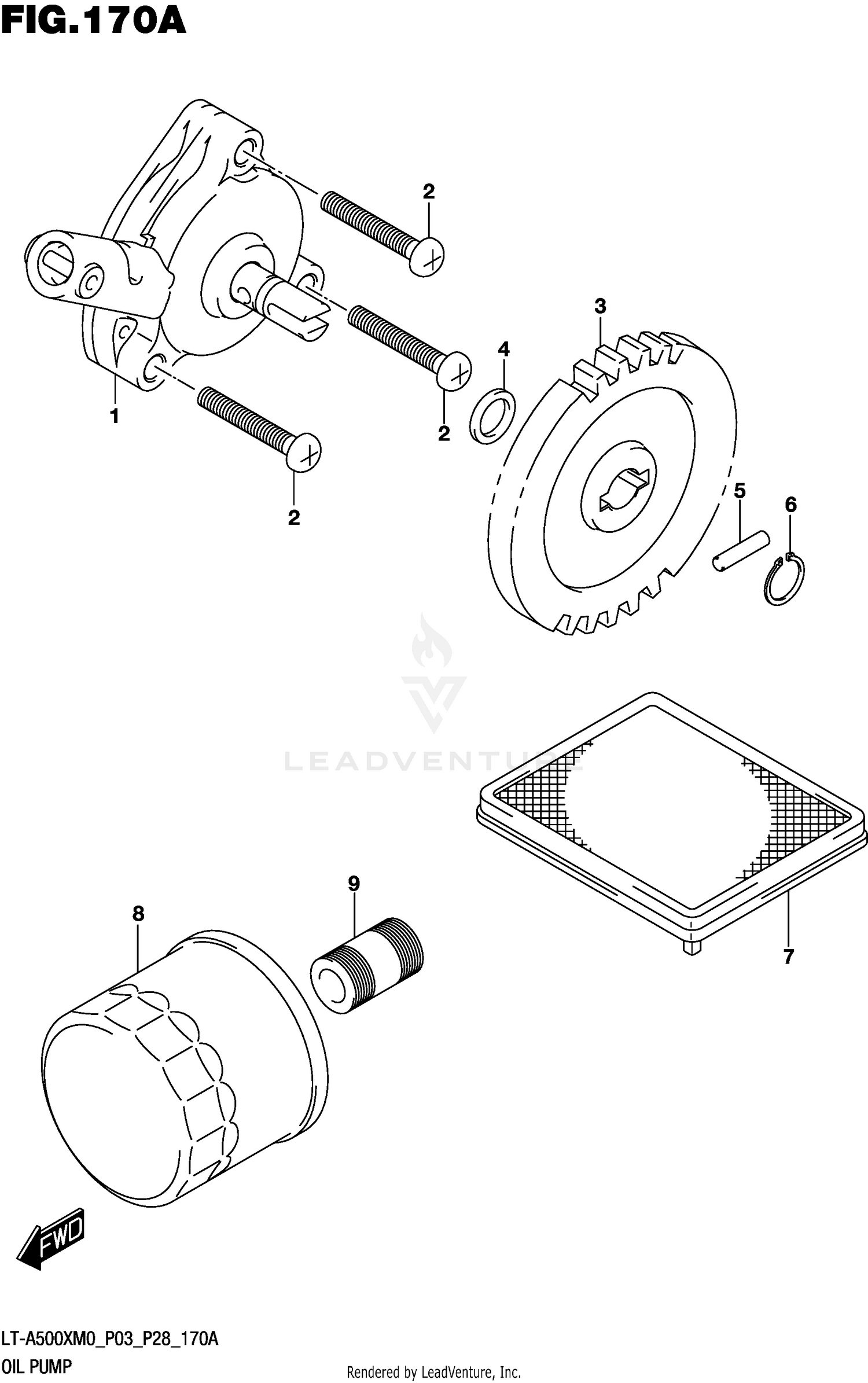

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, ENG OIL
16400-11H00
|
$204.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW (6X30)
09125-06119
|
|||
|
Unavailable |
|||
|
#3
SPROCKET, OIL PUMP DRIVE
16331-31H00
|
$55.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN (4X15.8)
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
STRAINER,ENG OIL
16520-32E00
Superseded by 16520-32E01
|
$17.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
FILTER ASSY,ENGINE OIL
16510-07J00
Superseded by 16510-07J10
|
$16.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
UNION,OIL STAND
16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
