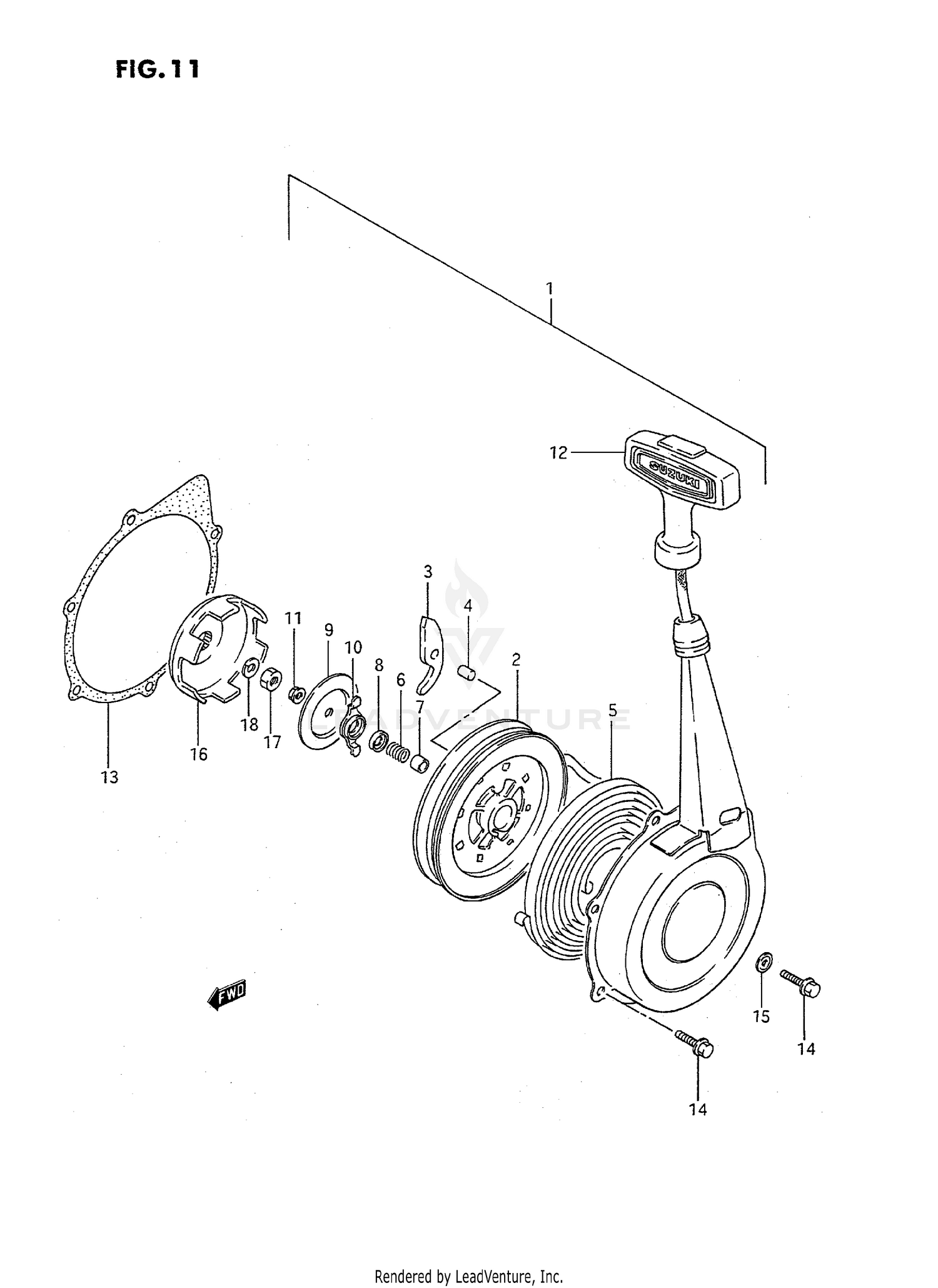

Recoil Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER ASSY,RE
18100-19B00
Superseded by 18100-19B03
|
$327.26 | ||
|
Available to order. Add to View Price |
|||
|
#1
STARTER ASSY,RE
18100-19B01
Superseded by 18100-19B03
|
$327.26 | ||
|
Unavailable |
|||
|
#2
REEL
18120-24400
|
$47.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
RATCHET
18131-24411
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, RATCHET
18344-24400
|
$1.45 | ||
|
Unavailable |
|||
|
#5
.SPRING,SPIRAL
18142-24400
|
$38.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, FRICTION
18153-24400
|
$0.85 | ||
|
Unavailable |
|||
|
#7
SHAFT, SUB
18176-24400
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SPRING
18275-24400
|
$0.85 | ||
|
Unavailable |
|||
|
#9
RATCHET SET
18151-24400
Superseded by 18130-24400
|
$22.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
..GUIDE,RATCHET
18132-24400
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
18334-24400
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
Unavailable |
|||
|
#12
ROPE ASSY (ROPE OD:5)
18200-24400
|
$45.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROPE ASSY (ROPE OD:6)
18200-19B01
|
$45.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, RECOIL
18299-19B00
Superseded by 18299-19B11
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, RECOIL
18299-19B10
Superseded by 18299-19B11
|
$9.02 | ||
|
Unavailable |
|||
|
#14
BOLT, EXHAUST DRAIN
01547-06125
Superseded by 01547-06127
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CUP, STARTER
18410-19B01
|
$60.28 | ||
|
Unavailable |
|||
|
#17
NUT
08310-12108
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08310-00103
Superseded by 08310-0010A
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
LOCK WASHER
08321-21107
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK WASHER
08321-01103
Superseded by 08321-0110A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
