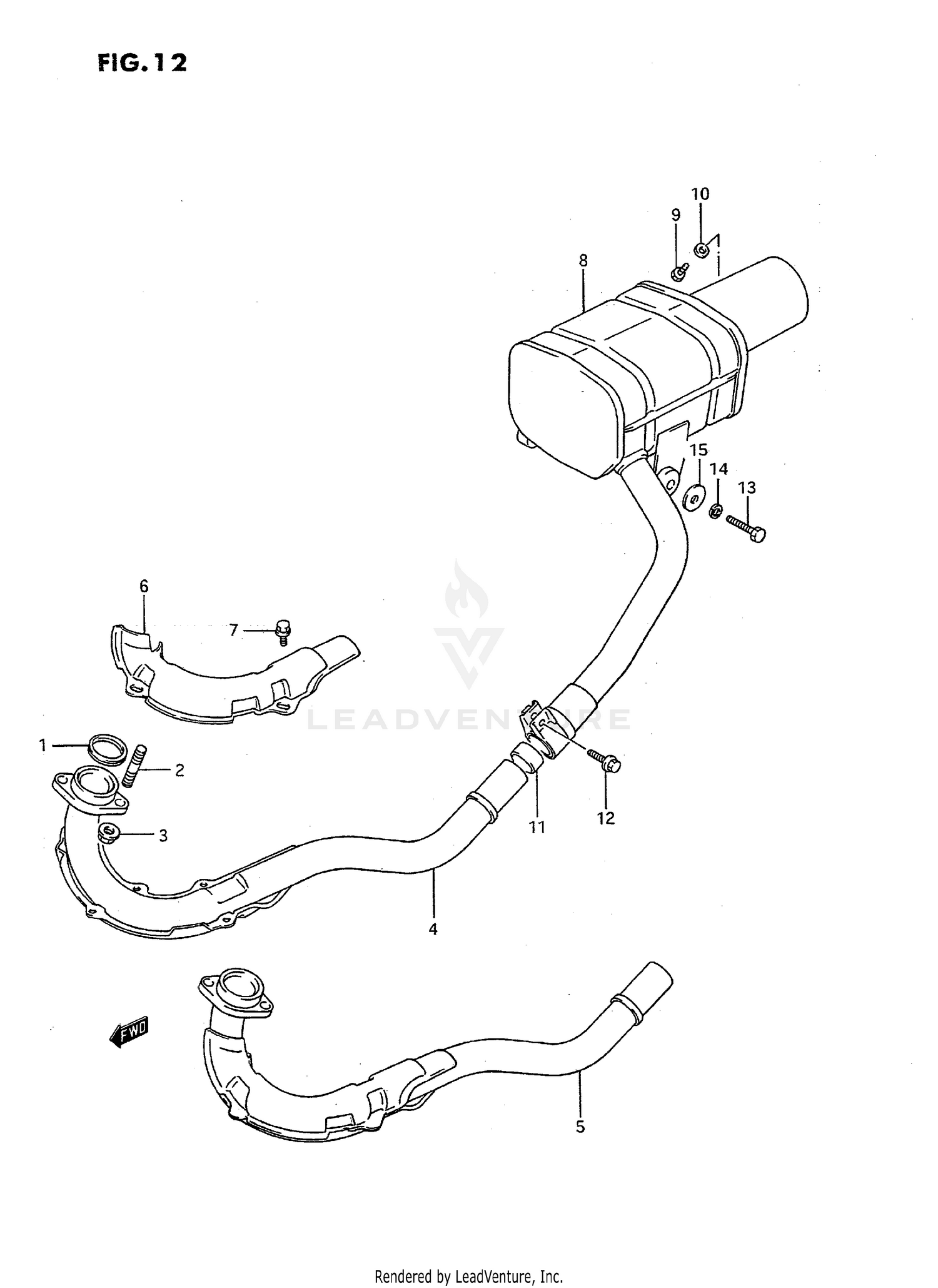

Muffler (model J/k) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,EXHAUST PIPE
14181-12010
Superseded by 14181-42A00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
STUD BOLT
01421-08205
Superseded by 01421-0820A
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08361-15085
Superseded by 08361-1508A
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EXHAUST
14120-19B10
Superseded by 14100-19B20
|
$145.40 | ||
|
Unavailable |
|||
|
#5
PIPE, EXHAUST
14100-19B20
|
$145.40 | ||
|
Unavailable |
|||
|
#6
COVER, EXHAUST PIPE UPPER
14190-19B20
|
$19.48 | ||
|
Unavailable |
|||
|
#7
BOLT,6X12
09103-06123
Superseded by 09103-061V0-XC0
|
$1.96 | ||
|
Unavailable |
|||
|
#8
BODY,MUFFLER
14310-19B12
Superseded by 14310-19B14
|
$602.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, DRAIN
09247-12103
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
09168-12002
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET,2ND MUFFLER
14773-14201
Superseded by 14773-14202
|
$26.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X20)
01517-08205
Superseded by 01550-0820A
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01517-08405
Superseded by 01550-08407
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-08258
Superseded by 01500-08257
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER (8.5X26X1.6)
09160-08004
Superseded by 09160-08134
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFER TO FIG.12A (C-12) FOR
SPECIAL NOTE
|
|||
|
Unavailable |
|||
