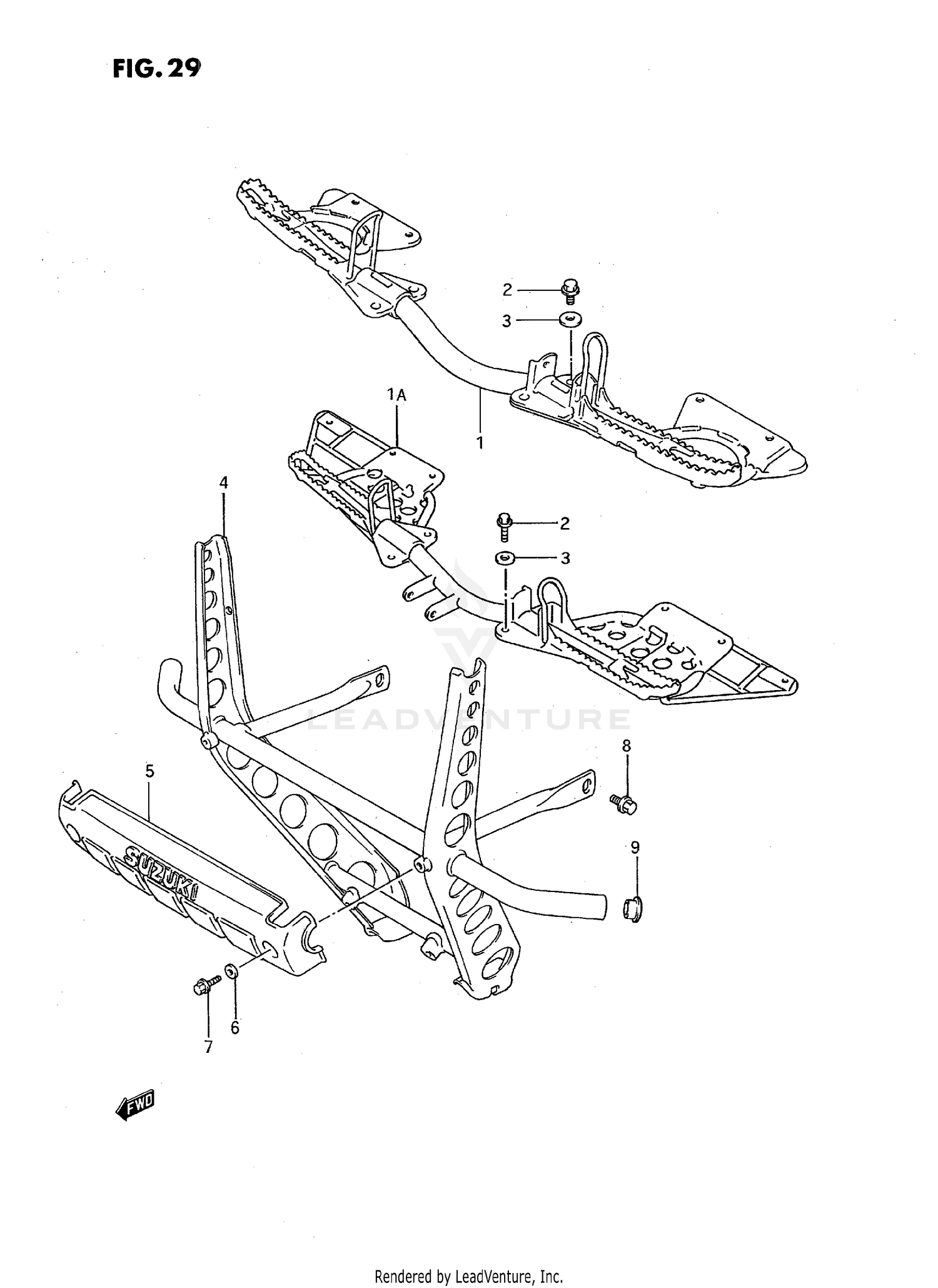

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, FRONT FOOTREST
43510-20B00
Superseded by 43510-39DV0
|
$337.20 | ||
|
Available to order. Add to View Price |
|||
|
#1A
TUBE, FRONT FOOTREST
43510-19B80
Superseded by 43510-39DV0
|
$337.20 | ||
|
Unavailable |
|||
|
#1A
TUBE, FRONT FOOTREST
43510-39D50
Superseded by 43510-39DV0
|
$337.20 | ||
|
Unavailable |
|||
|
#2
BOLT (8X18)
09103-08171
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FRONT RH
09103-08259
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
09160-08093
|
$0.83 | ||
|
Unavailable |
|||
|
#3
WASHER
09160-08501
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GRIP, FRONT
43990-19B02
Superseded by 43990-19B22
|
$370.14 | ||
|
Unavailable |
|||
|
#4
GRIP, FRONT
43990-19B22
|
$370.14 | ||
|
Unavailable |
|||
|
#5
RUBBER
43976-19B00
|
$31.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09169-05011
Superseded by 09169-05024
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09169-05021
Superseded by 09169-05024
|
$2.59 | ||
|
Unavailable |
|||
|
#7
BOLT
01517-05125
Superseded by 01550-0512B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-05123
Superseded by 01550-0512B
|
$3.13 | ||
|
Unavailable |
|||
|
#7
SCREW
02162-05123
Superseded by 02162-0512A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (8X16)
01517-08165
Superseded by 01550-0816A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (8X16)
01550-08163
Superseded by 01550-0816A
|
$2.88 | ||
|
Unavailable |
|||
|
#9
CAP
43978-18900
|
$5.69 | ||
|
Unavailable |
|||
|
#9
CAP
09250-18003
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
