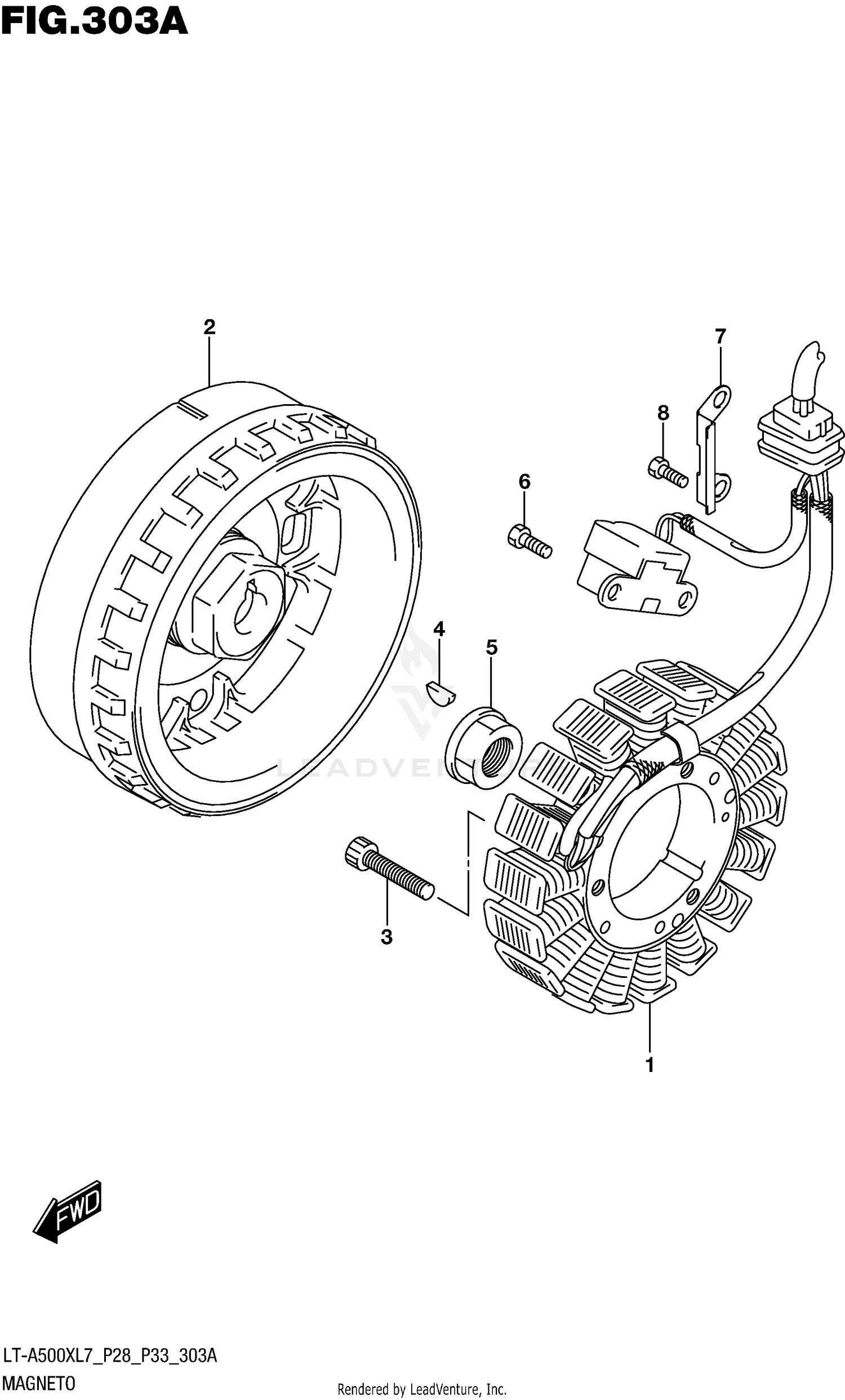

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
32101-11H00
Superseded by 32101-11H01
|
$712.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY, MAGNETO
32102-11H00
|
$905.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07130-0635A
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY
09420-05007
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,MAGNETO ROTOR
31792-11H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (5X10)
09100-05019
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, MAGNETO LEAD
32371-11H00
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (5X10)
09100-05019
|
$2.11 | ||
|
Unavailable |
|||
