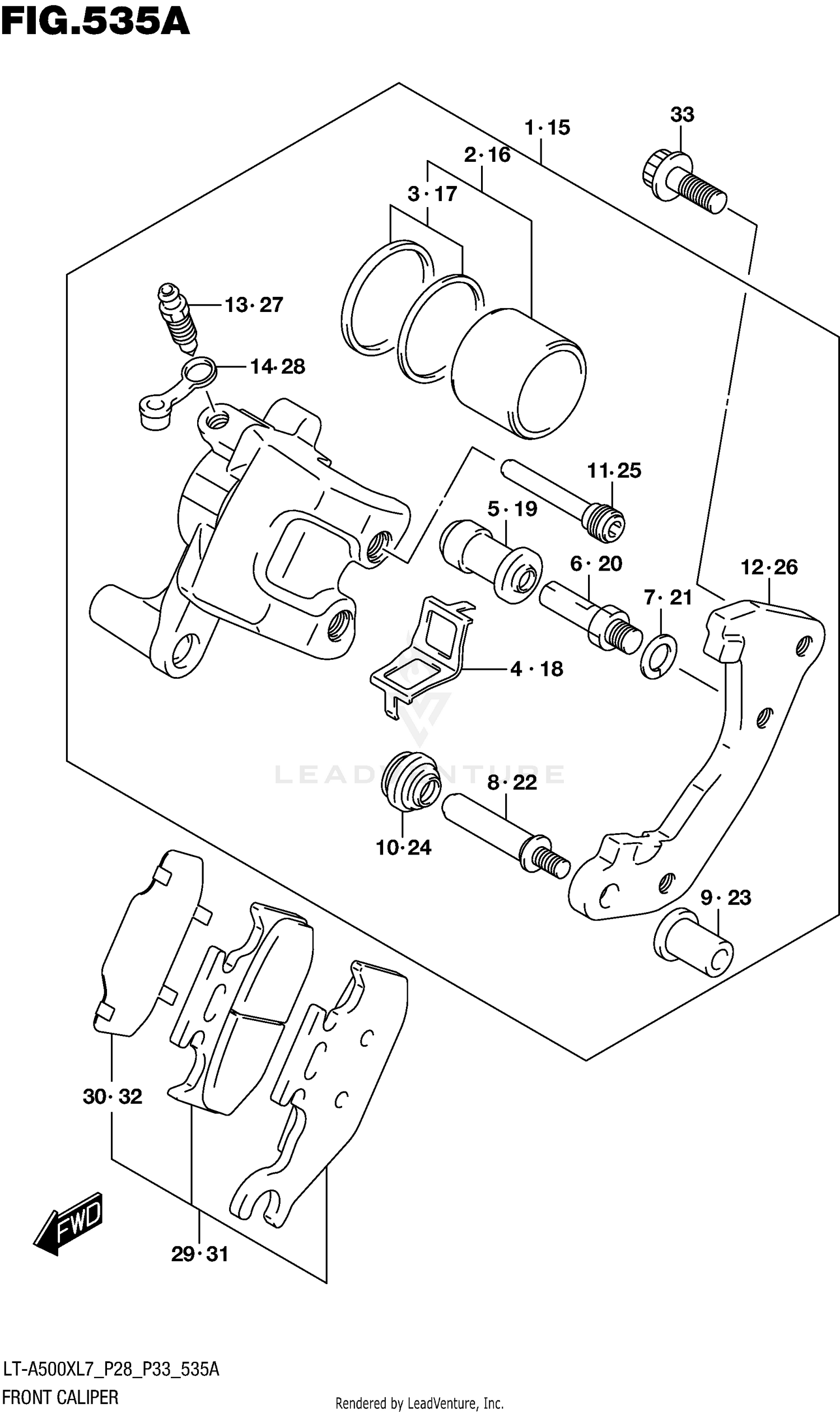

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY,FRONT,R
59100-31G00-999
|
$363.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON SET
59300-13810
|
$42.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
..SEAL SET,PISTON
69100-13820
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPRING, PAD
59315-27C00
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOOT
59386-13A00
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
.PIN
59382-13A00
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
.WASHER
59314-13A00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PIN
59387-00B20
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
.NUT
59388-00B20
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOOT
59303-14500
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PIN,HANGER
59145-39D00
|
$24.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BRACKET, RH
59151-31G00
|
$60.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BLEEDER
59121-01A00
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
.CAP
59122-01A00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER ASSY,FRONT,L
59300-31G01-999
|
$363.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
.PISTON SET
59300-13810
|
$42.57 | ||
|
Unavailable |
|||
|
#17
..SEAL SET,PISTON
69100-13820
|
$11.31 | ||
|
Unavailable |
|||
|
#18
.SPRING, PAD
59315-27C00
|
$15.83 | ||
|
Unavailable |
|||
|
#19
.BOOT
59386-13A00
|
$10.26 | ||
|
Unavailable |
|||
|
#20
.PIN
59382-13A00
|
$10.21 | ||
|
Unavailable |
|||
|
#21
.WASHER
59314-13A00
|
$2.30 | ||
|
Unavailable |
|||
|
#22
.PIN
59387-00B20
|
$24.63 | ||
|
Unavailable |
|||
|
#23
.NUT
59388-00B20
|
$20.14 | ||
|
Unavailable |
|||
|
#24
.BOOT
59303-14500
|
$7.14 | ||
|
Unavailable |
|||
|
#25
.PIN,HANGER
59145-39D00
|
$24.35 | ||
|
Unavailable |
|||
|
#26
.BRACKET, LH
59351-31G00
|
$60.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
.BLEEDER
59121-01A00
|
$11.27 | ||
|
Unavailable |
|||
|
#28
.CAP
59122-01A00
|
$5.60 | ||
|
Unavailable |
|||
|
#29
PAD & SHIM SET RH
59100-31850
|
$137.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
.SHIM
69132-28C00
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#31
PAD & SHIM SET LH
59100-31860
|
$137.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
.SHIM
69132-28C00
|
$10.69 | ||
|
Unavailable |
|||
|
#33
BOLT (8X20)
09106-08176
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
