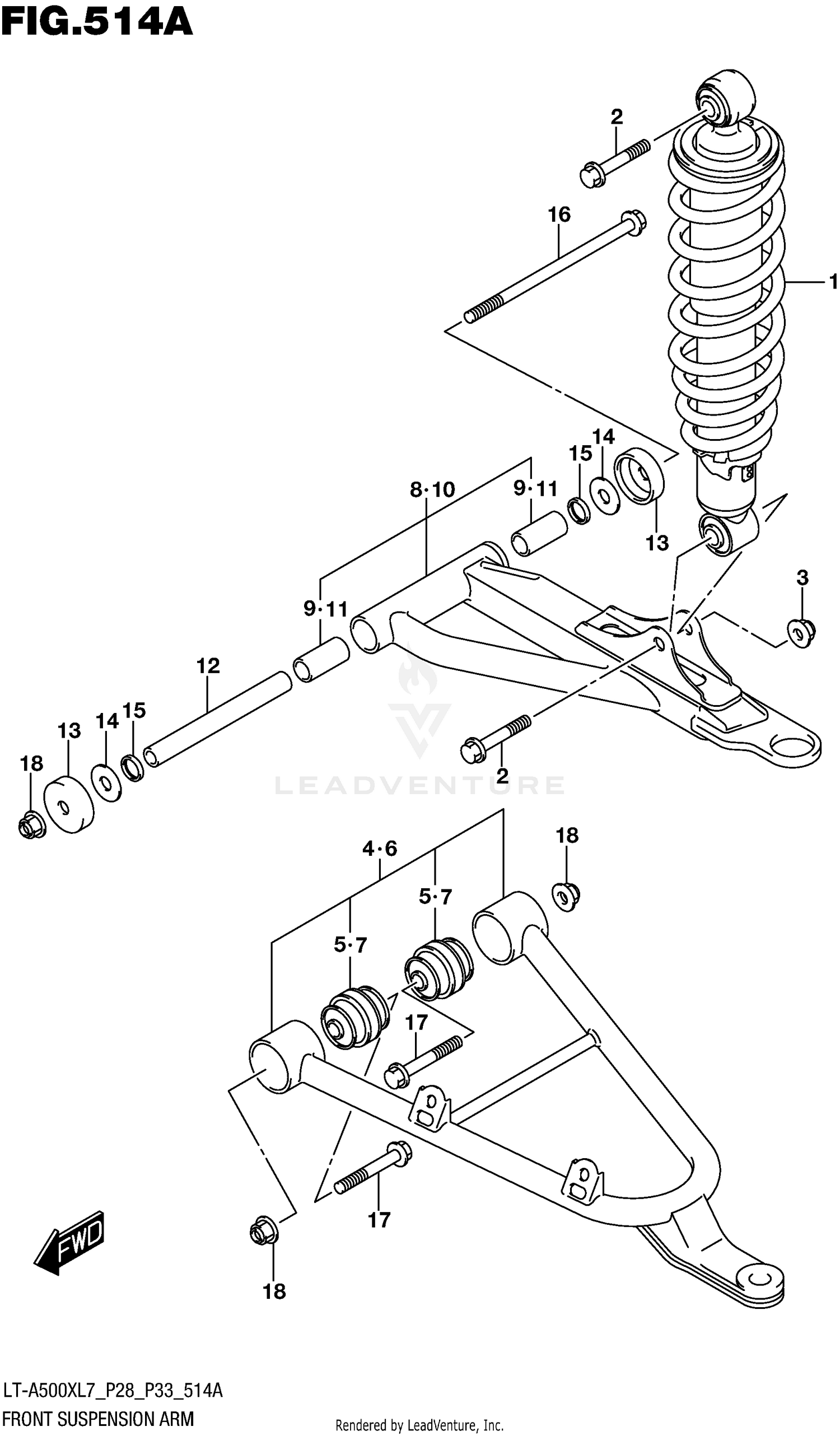

Front Suspension Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABSORBER ASSY, FRONT SHOCK
52100-11H10-019
|
$180.32 | ||
|
Available to order. Add to View Price |
|||
|
#1
(BLACK)
52100-11H10-019
|
$180.32 | ||
|
Unavailable |
|||
|
#2
BOLT (10X48)
09103-10126
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM SET, SUSPENSION LOWER RH
52410-31820
|
$346.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BUSH
09319-10055
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM SET, SUSPENSION LOWER LH
52420-31820
|
$343.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BUSH
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#8
ARM SET, SUSPENSION UPPER RH
52430-31820
|
$335.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BUSH
51236-31G00
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM SET, SUSPENSION UPPER LH
52440-31820
|
$323.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#12
SPACER, PIVOT
52455-31G10
|
$36.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL,KNUCKLE ARM (28.6X3
51255-18900
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08211-10281
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
52454-45G00
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (10X160)
09103-10389
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (10X57)
09103-10255
|
$8.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09159-10115
|
$4.46 | ||
|
Unavailable |
|||
