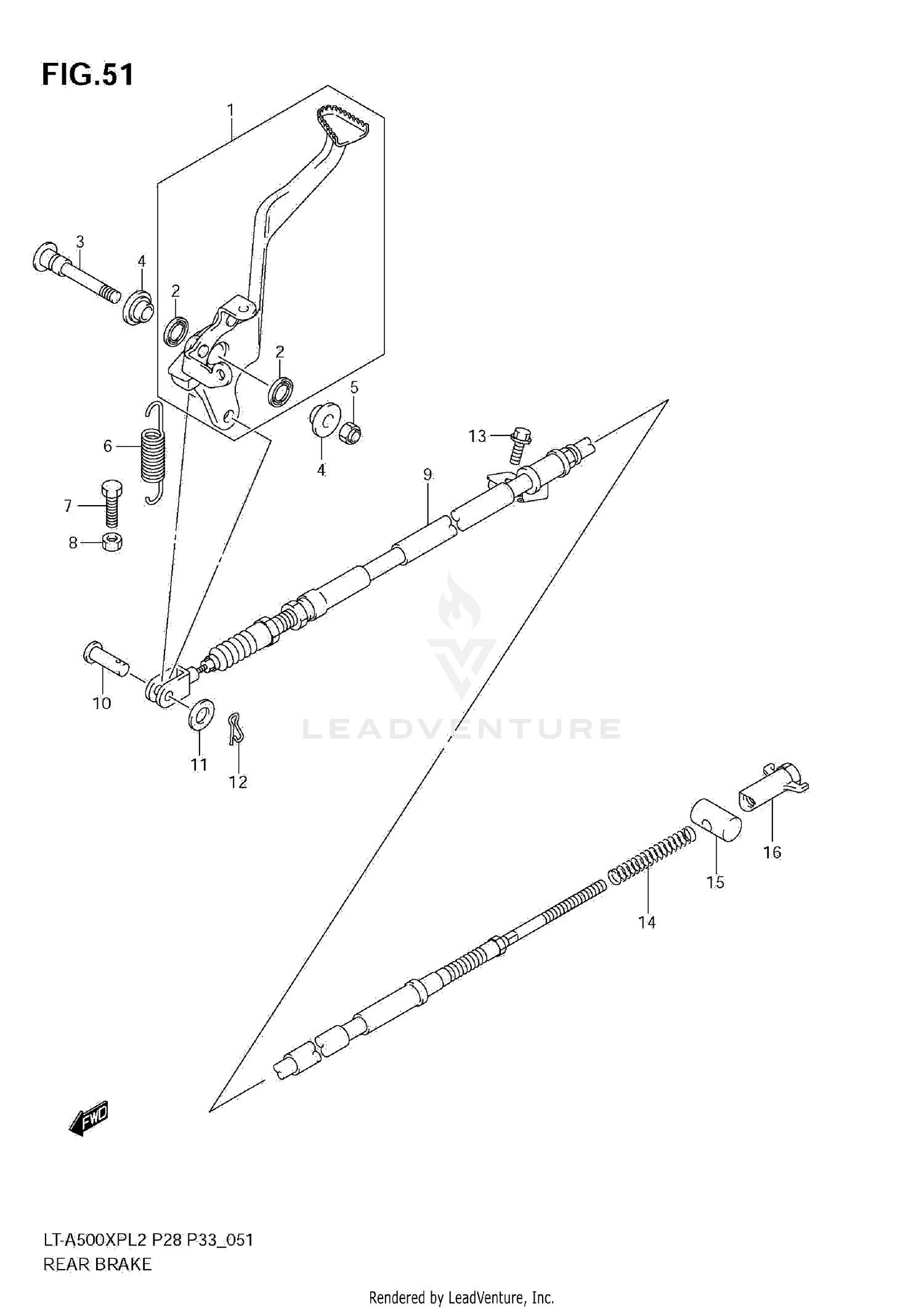

Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
43100-31GB0
|
$248.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
.OIL SEAL (15X21X3)
09284-15006
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, BRAKE PEDAL
43142-31GB0
|
$53.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
43212-31GB0
|
$20.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09159-10115
|
$4.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPRING
09443-11036
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01500-0620A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CABLE, REAR BRAKE
58510-31G00
|
$111.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09200-05001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLIP
09385-06012
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09440-08042
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN
09209-13006
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09150-06015
|
$4.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
