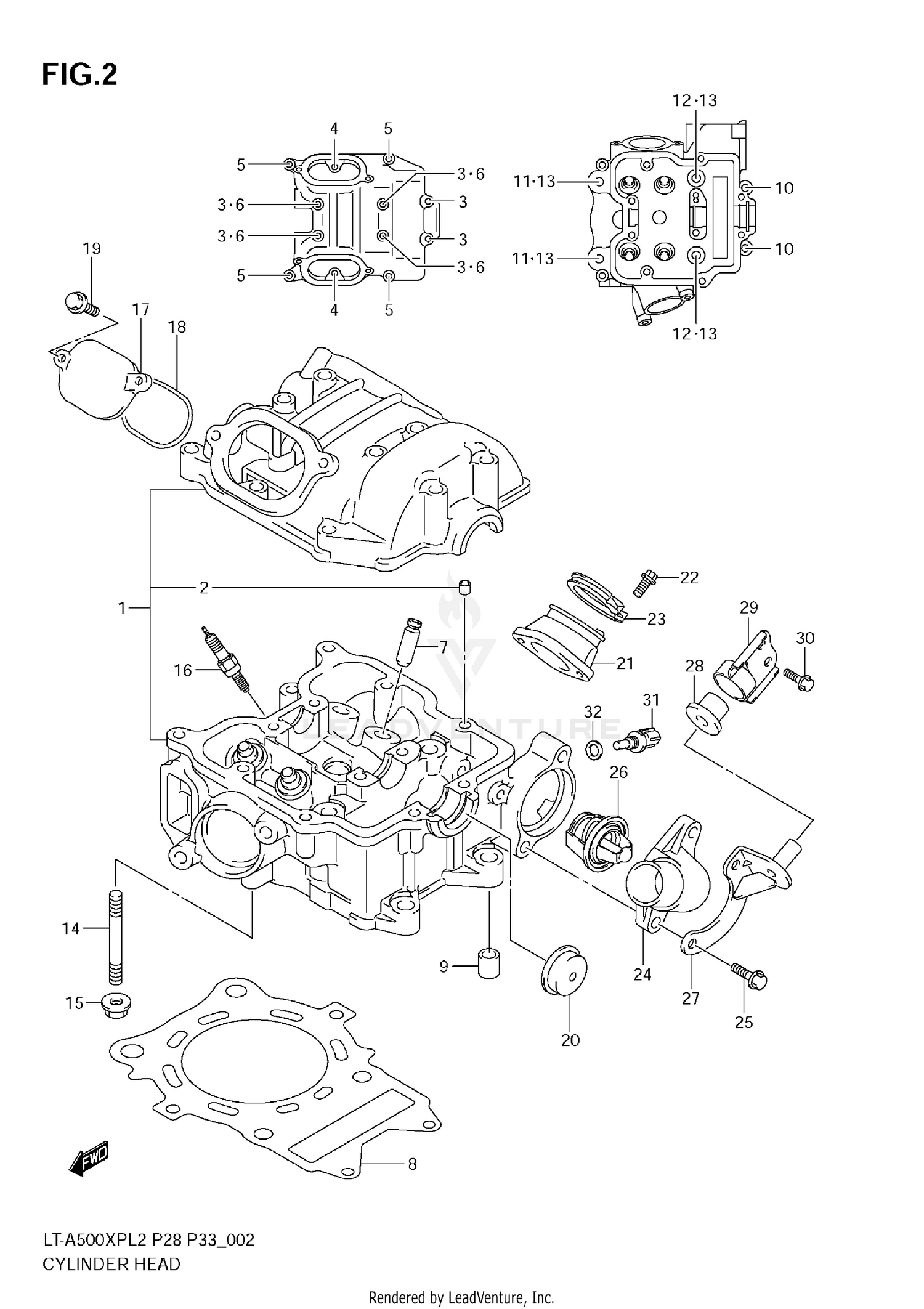

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-11H10
|
$1,509.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN (8X11)
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X60)
09103-06064
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GUIDE,VALVE (OS:0.3)
11115-14D71
|
$44.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET, CYLINDER HEAD
11141-31H00
|
$43.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT (8X135)
09103-08212
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (10X190)
09103-10179
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (10X200)
09103-10180
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET (10.2X20X2.3)
09168-10031
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
STUD BOLT
01421-0850A
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08316-1008A
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR6E)
09482-00528
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (U20ESR-N)
09482-00529
|
$7.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR6EIA-9)
09482-00590
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR7E)
09482-00516
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (U22ESR-N)
09482-00515
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR8E)
09482-00456
|
$8.32 | ||
|
Unavailable |
|||
|
#16
SPARK PLUG (U24ESR-N)
09482-00457
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP,INSPECTION
11175-47D00
|
$27.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
.O RING,INSPECTION CAP
11177-14D01
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG (OD:30)
09241-25007
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE ASSY,INTAKE
13101-31H00
Superseded by 13101-31H01
|
$48.90 | ||
|
Unavailable |
|||
|
#22
BOLT (6X18)
09106-06105
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
09402-56901
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, THERMOSTAT
17661-31G00
|
$53.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
07130-0825A
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
THERMOSTAT,WATER
17670-06G60
Superseded by 17670-06G61
|
$33.26 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, ENG MTG DAMPER
11653-11H01
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, ENG MTG
11654-31G00
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
STOPPER, ENG MTG
11655-31G03
|
$19.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SENSOR, WATER TEMP
13650-10G00
|
$112.61 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET (12X17X1)
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
