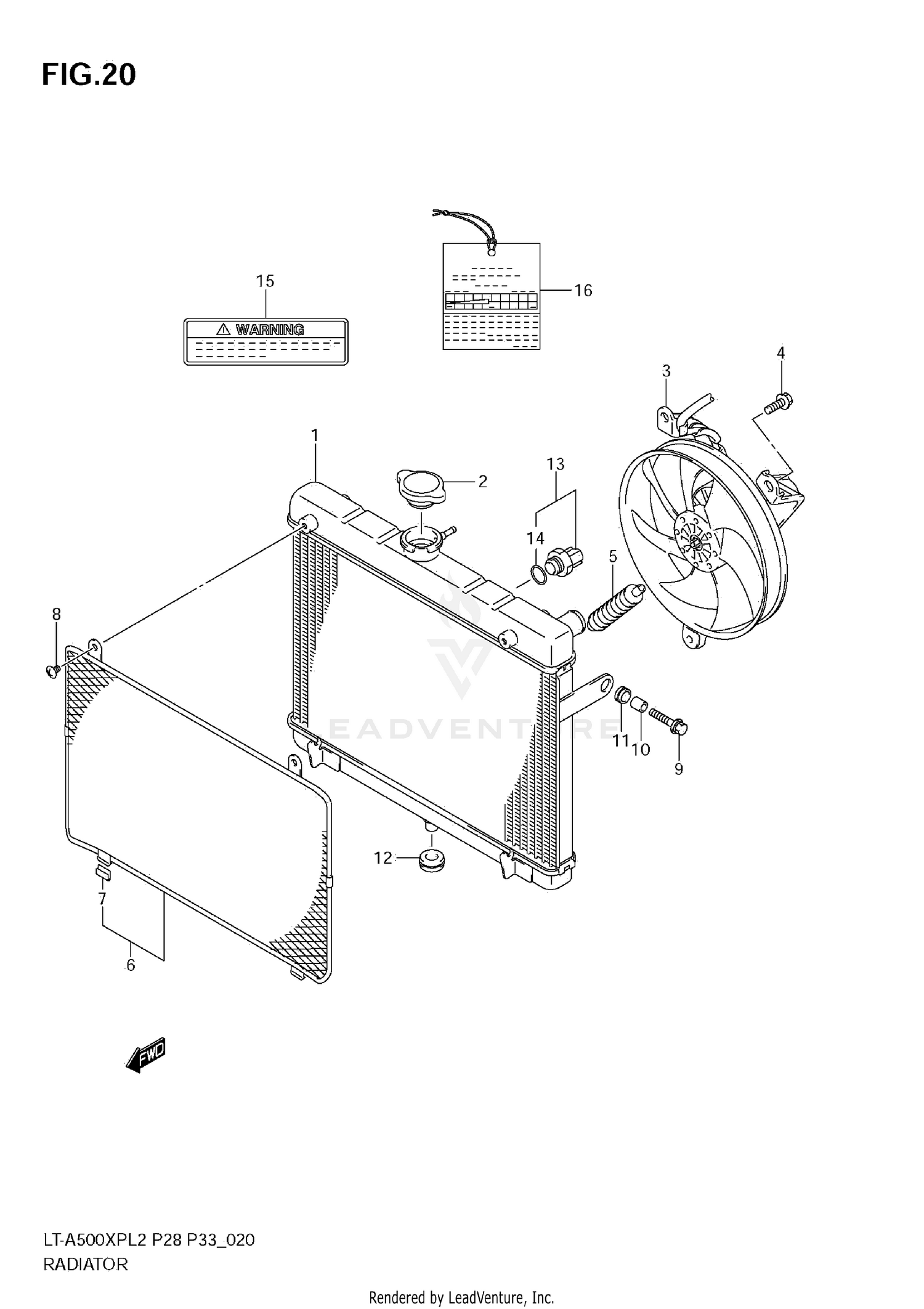

Radiator (lt-a500xpl2 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
17710-31G20
Superseded by 17710-31G40
|
$264.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY, RADIATOR
17730-14G00
|
$55.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
FAN ASSY, RADIATOR
17800-31G10
|
$298.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-0610B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOOT,RDTR FAN MOTOR
17820-07G10
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RADIATOR
17760-09F00
Superseded by 17760-09F01
|
$69.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PROTECTOR,CTR
17765-09F00
Superseded by 17765-09F01
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02142-0608B
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X25)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-10042
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-12036
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH,RADIATOR FAN
17680-50F00
Superseded by 17680-50F01
|
$85.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING
17689-50F00
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
LABEL,COOLING FAN
17991-02F01
Superseded by 17991-02F02
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
TAG,CONSUMER INFORMATION
18810-31H10
Superseded by 18810-31H20
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
