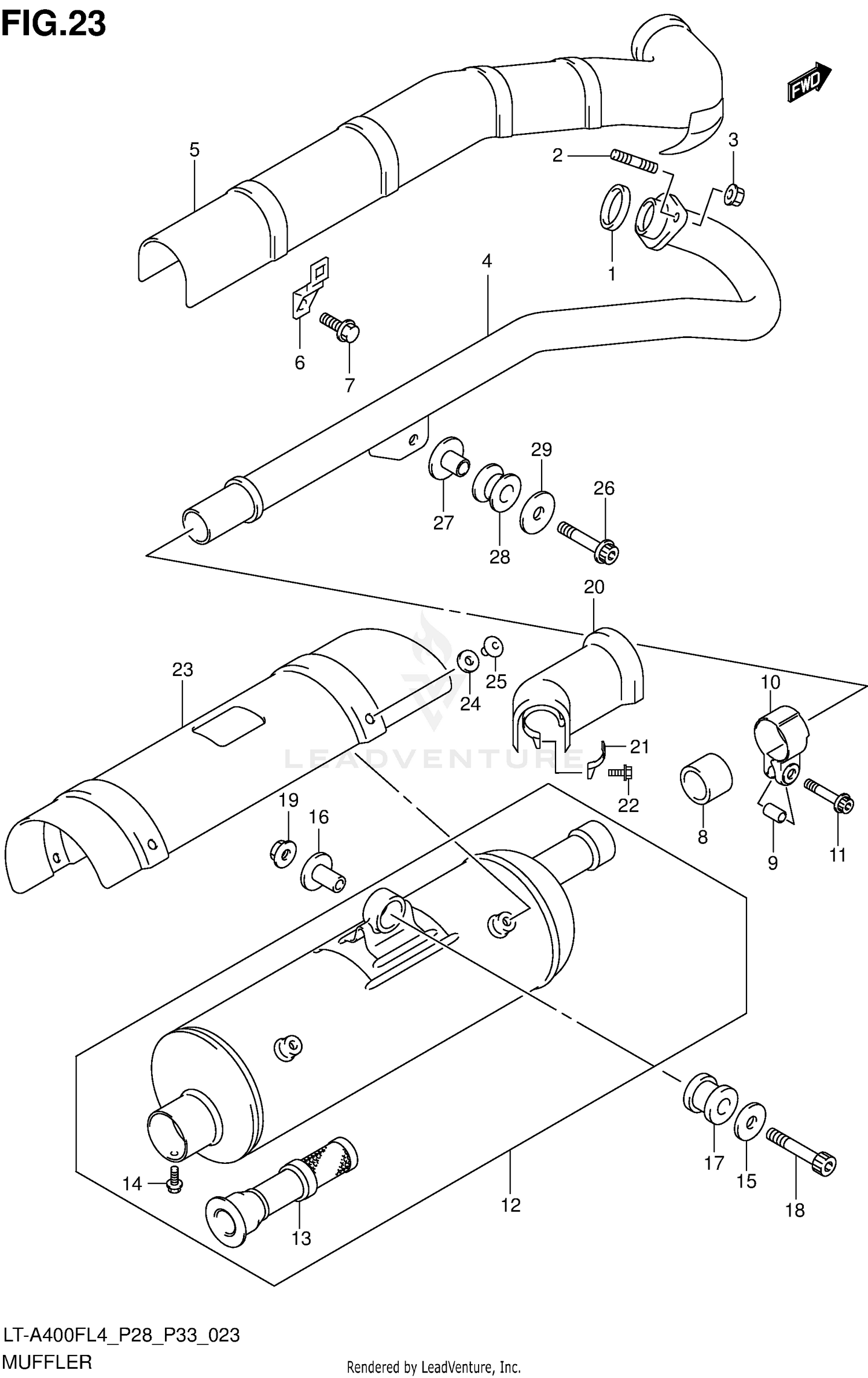

Muffler (lt-a400fzl4 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
.GASKET,EXHAUST
14181-18C00
|
$9.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BOLT,STUD
01421-0825A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE,EXH
14150-27H00
|
$208.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, EXHAUST PIPE FRONT
14180-38F50
|
$144.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP,EXH PIPE COVER
14185-38F10
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, MUFFLER
14771-38F00
|
$30.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
14458-45G01
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, CONNECTOR
14459-38F10
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07120-0840A
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY,MUFFLER
14310-38F40
Superseded by 14310-38F41
|
$810.45 | ||
|
Unavailable |
|||
|
#13
ARRESTER
14850-38F30
|
$101.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT
07120-0508B
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (8.5X30X2.3)
09160-08503
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (8.6X12X24.2)
09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09320-12082
|
$45.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
07130-0845A
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08319-3108A
|
$2.88 | ||
|
Unavailable |
|||
|
#20
COVER,MUF FR
14790-27H00
|
$50.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP,EXH PIPE COVER
14185-38F10
|
$6.65 | ||
|
Unavailable |
|||
|
#22
BOLT
01550-0612A
|
$2.45 | ||
|
Unavailable |
|||
|
#23
COVER,MUF RR
14880-38F10
|
$66.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET (5.8X13X1.4)
09168-06120
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW (6X10)
09139-06076
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (8X35)
09106-08133
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER (8.6X12X17.5)
09180-08151
|
$6.61 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CUSHION
09320-12043
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (8.5X28X1.6)
09160-08135
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
