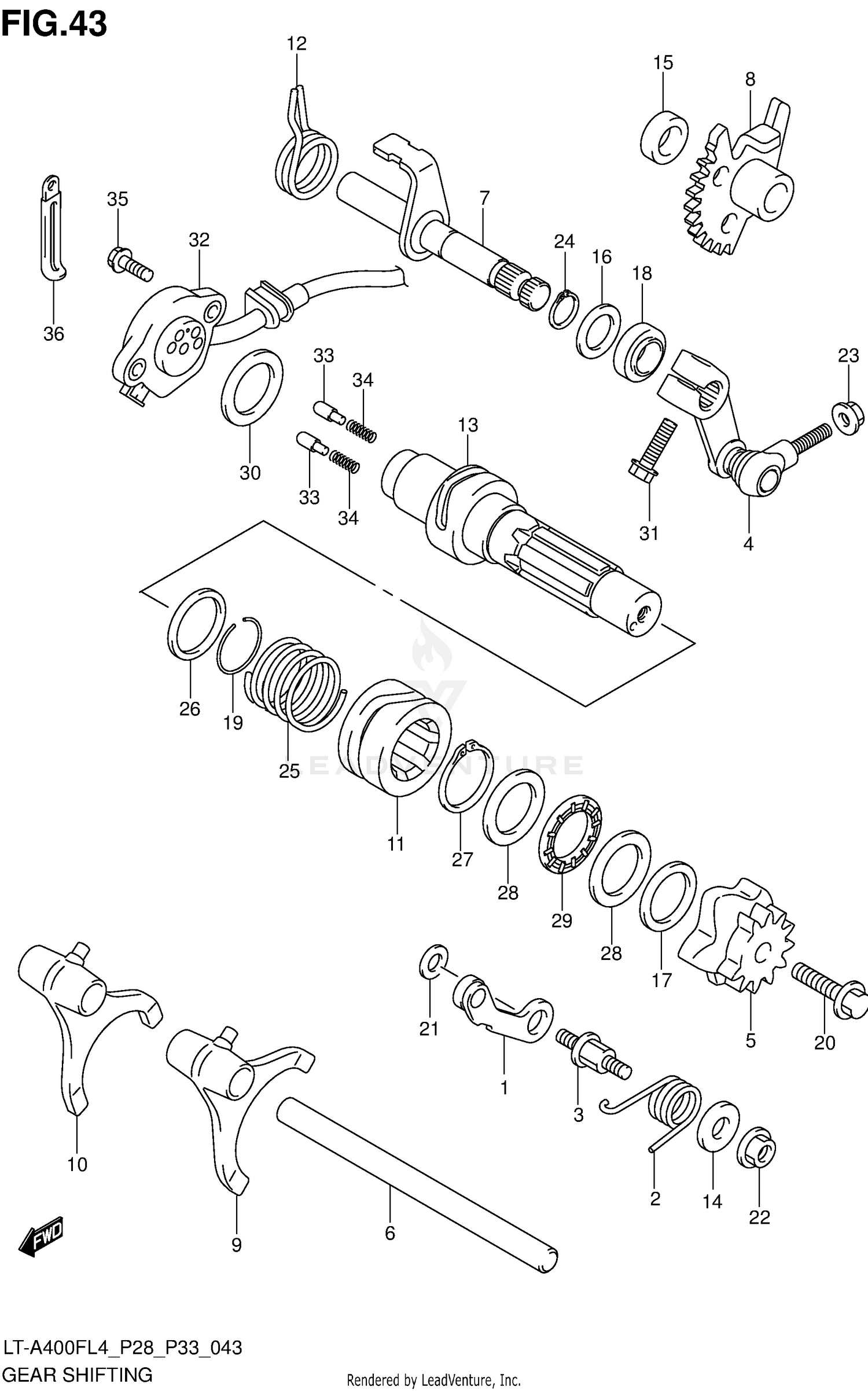

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
SHIM (25X34X1)
09181-25167
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
BASE ASSY,GEAR SHIFT TERM
37720-27H00
|
$159.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN (5X15.5)
09209-05011
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING
09440-04010
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
07120-0516A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#1
STOPPER, SHIFT CAM
25350-26D01
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, GEAR SHIFT CAM STOPPER
25355-38F00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
SUPPORT, CAM STOPPER
25356-12C00
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, SELEDT
25360-11H10
|
$90.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,GR SHIFT CAM STOPPER (N
25381-38F10
|
$37.18 | ||
|
Unavailable |
|||
|
#6
SHAFT, SUB T/M GEAR SHIFT FORK
25411-18900
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,GEAR SHIFT
25510-27H00
Superseded by 25510-27H01
|
$46.44 | ||
|
Unavailable |
|||
|
#8
GEAR, SUB T/M SHAFT (NT:28)
25540-27H00
|
$23.27 | ||
|
Unavailable |
|||
|
#9
FORK, SUB T/M GEAR SHIFT
29511-44D00
|
$101.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
FORK, GEAR SHIFT REVERSE
29511-44D00
|
$101.85 | ||
|
Unavailable |
|||
|
#11
CAM, SUB T/M GEAR SHIFT
29611-27H00
|
$82.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING,SHIFT ARM RETURN
29613-31G00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT,SUB T/M GEAR SHIFT
29620-27H01
|
$118.14 | ||
|
Unavailable |
|||
|
#14
WASHER (6.5X16X2.3)
09160-06022
|
$1.52 | ||
|
Unavailable |
|||
|
#15
SPACER (12X22X8.0)
09180-12100
|
$5.82 | ||
|
Unavailable |
|||
|
#16
SHIM (12X20X1)
09181-12167
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SHIM (20X28X0.5)
09181-20158
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL,OIL (12X22X9)
09285-12006
|
$7.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP
09380-25012
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
08211-06141
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT
08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CIRCLIP
08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SPRING, SUB T/M SHIFT CAM
29612-38F00
|
$2.88 | ||
|
Unavailable |
|||
|
#26
SHIM (25X32X1)
09181-25139
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
08331-31259
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM (20X34X1)
09181-20251
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING (20X35X2)
09263-20014
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
