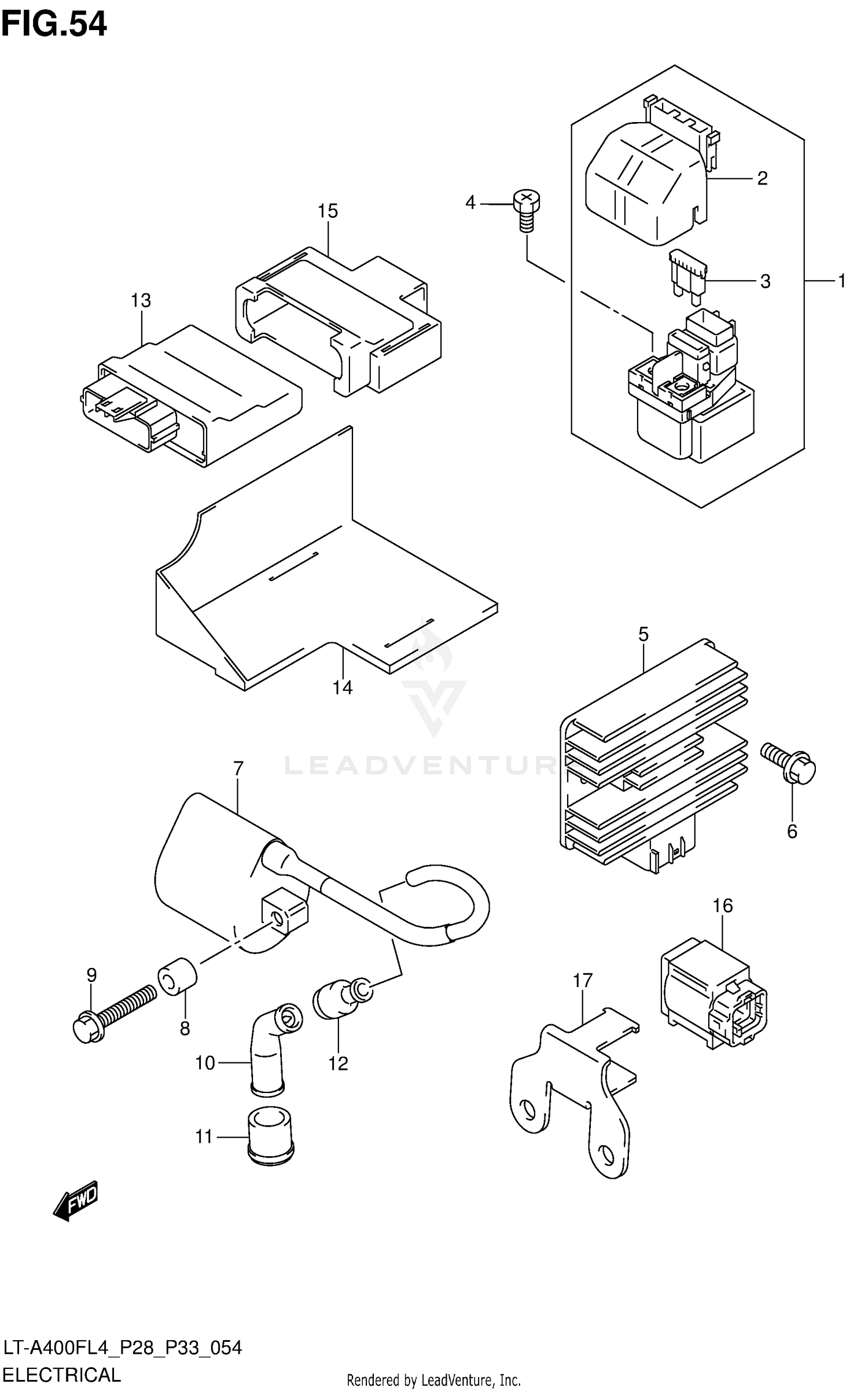

Electrical (lt-a400fzl4 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-38G10
|
$125.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-42F10
|
$306.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY,IGNITION
33410-26G00
Superseded by 33410-26G01
|
$134.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6X12X10)
09180-06095
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0630B
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP, SPARK PLUG
33510-43010
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, SPARK PLUG
33541-44D00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONTROL UNIT,FI
32920-27HB0
Superseded by 32920-27HD1
|
$575.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR, FI CONTROL UNIT
32942-27HA0
|
|||
|
Unavailable |
|||
|
#15
HOLDER, FI CONTROL UNIT
32981-27H00
|
|||
|
Unavailable |
|||
|
#16
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,FUEL CUT SENSOR
33961-27H00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
