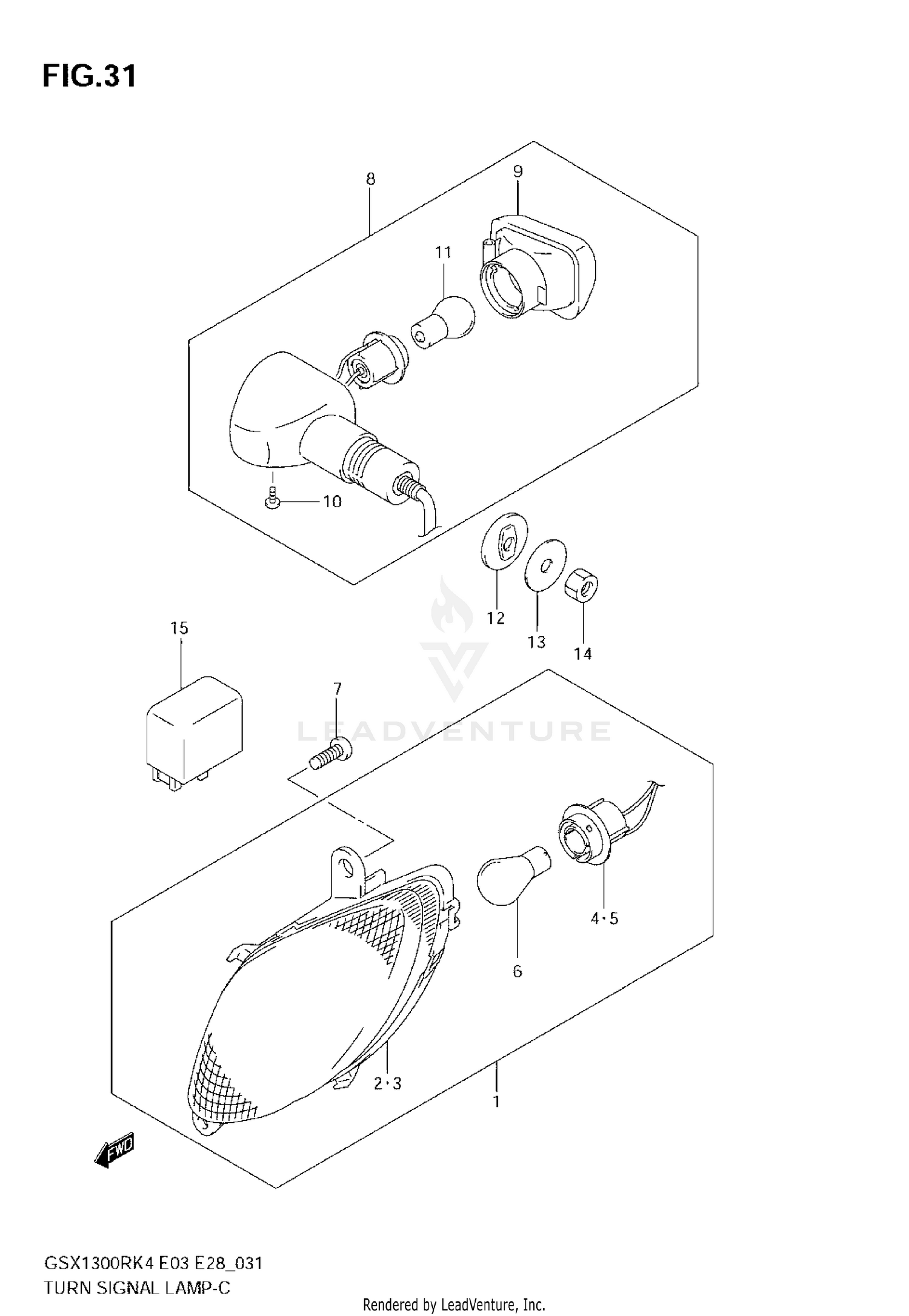

Turnsignal Lamp (model K4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL RH
35601-24F00
|
$77.98 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP ASSY, FRONT TURNSIGNAL LH
35602-24F00
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP UNIT, RH
35610-24F00
|
$53.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
LAMP UNIT, LH
35630-24F00
|
$58.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET & CORD RH
35618-24F00
|
$26.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET & CORD LH
35638-24F00
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY, REAR TURNSIGNAL RH
35603-33E30
|
$125.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
LAMP ASSY, REAR TURNSIGNAL LH
35604-33E30
|
$125.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
LAMP UNIT
35610-33E00
|
$36.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03242-04123
Superseded by 03242-0412B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Unavailable |
|||
|
#12
SPACER, REAR TURNSIGNAL LAMP
35695-17C00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (10.5X30X2.3)
09160-10501
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08310-00103
Superseded by 08310-0010A
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
