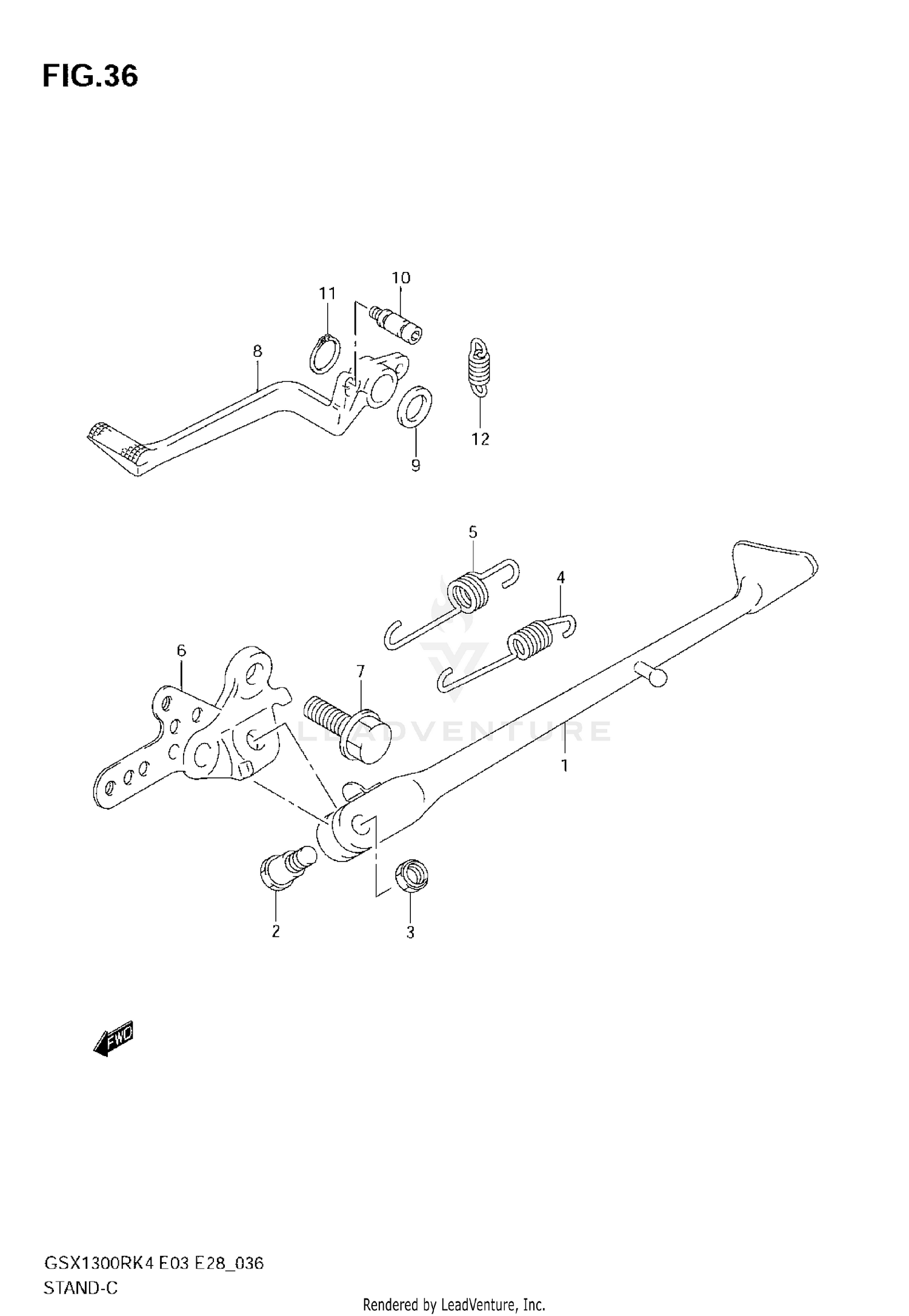

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND,PROP
42310-24F00
|
$185.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, PROP STAND
09111-10059
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
09159-10103
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, INNER
09443-14068
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, OUTER
09443-19015
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,PROP STAND
42330-24F00
Superseded by 42330-24F01
|
$177.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09100-12077
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, BRAKE
43111-24F00
Superseded by 43111-24F01
|
$178.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09160-18022
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOOK,RETURN SPRING
43561-24F00
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
08331-31186
Superseded by 08331-3118A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, RETURN
09443-13032
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
