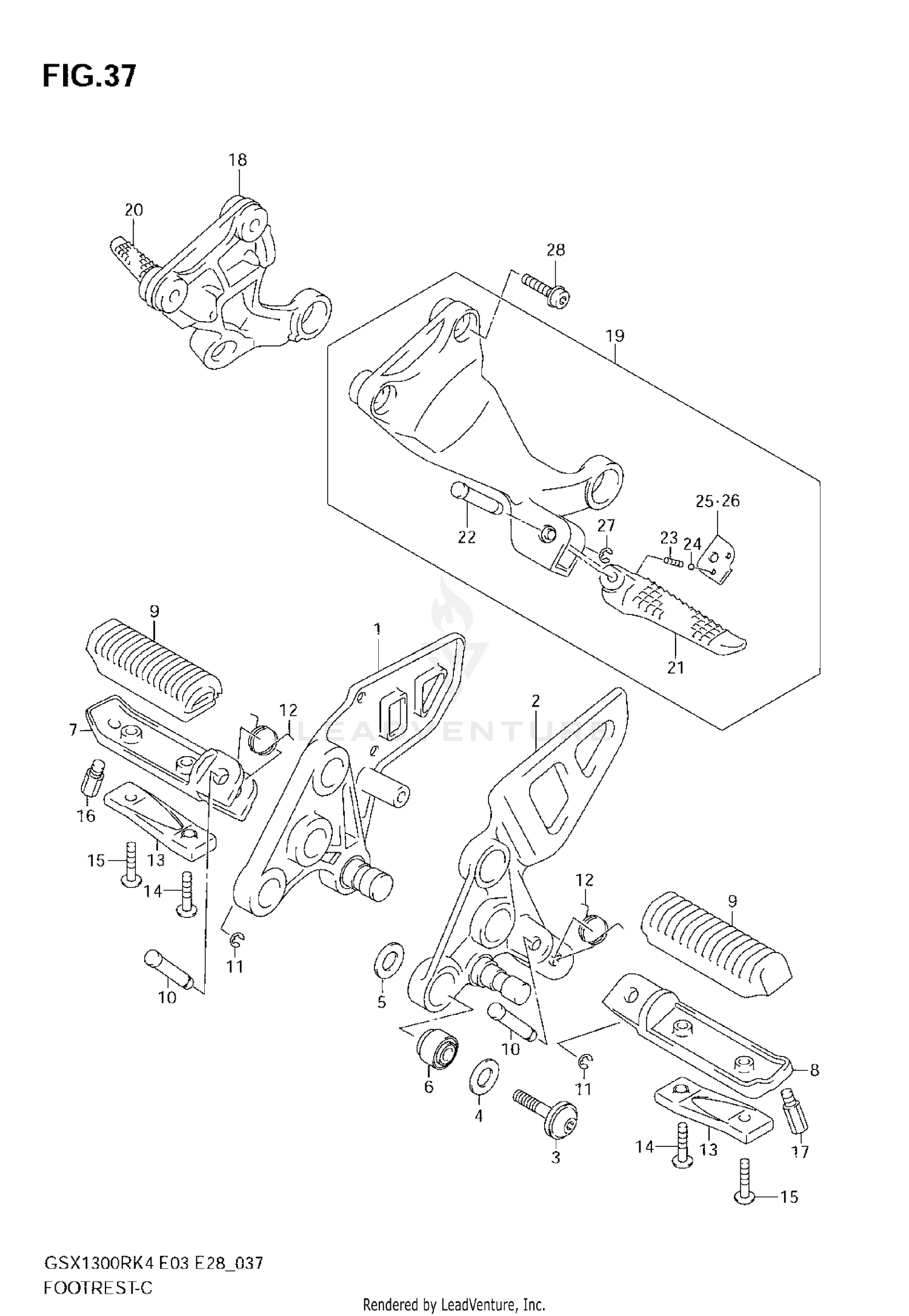

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43510-24F00
|
$235.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-24F00
|
$146.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BRACKET
09106-08147
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OUTER
09161-13004
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, INNER
09161-17002
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
09319-08045
|
$25.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR, FRONT FOOTREST RH
43531-24F00
|
$69.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, FRONT FOOTREST LH
43541-24F00
|
$69.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER
43550-24F00
|
$28.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09208-08016
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09448-18022
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALANCER
43536-31E20
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02142-05353
Superseded by 02142-0535B
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02142-05253
Superseded by 02142-0525B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,BANK SENSOR
43576-48B02
|
$9.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BANK SENSOR LH
43576-48B20
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST ASSY, PILLION RH
43600-24F00
|
$251.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
FOOTREST ASSY, PILLION LH
43700-24F00
|
$309.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAR, PILLION RH
43610-33E11
|
$82.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, PILLION LH
43620-33E11
|
$83.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
09208-06007
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, RH
43816-33E21
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, LH
43826-33E22
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#27
E RING
08332-11043
Superseded by 08332-1104A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, BRACKET
09106-08121
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
