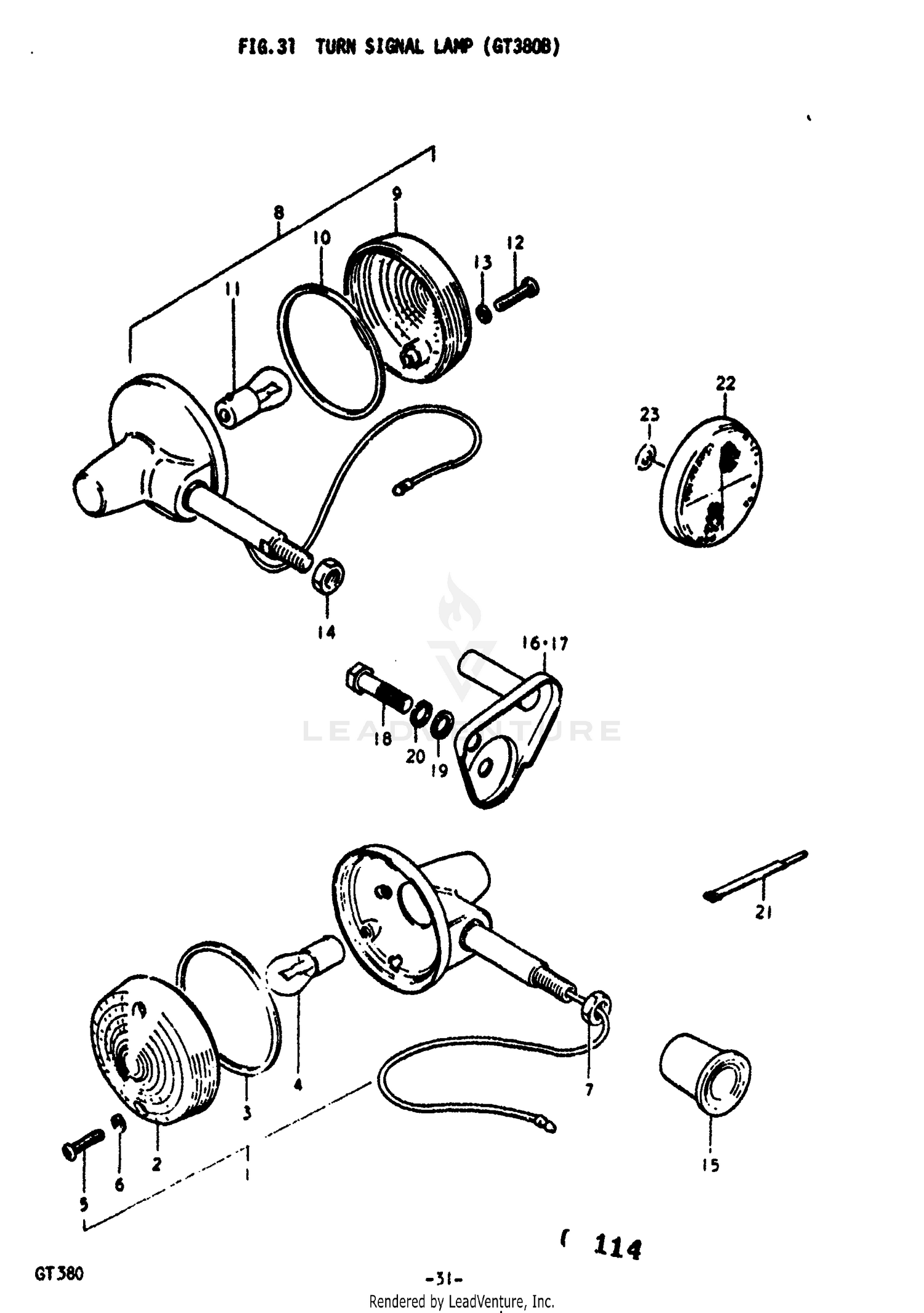

Turn Signal Lamp (gt380b) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
35601-29620
Superseded by 35601-29620-999
|
$35.60 | ||
|
Unavailable |
|||
|
#2
LENS
35612-28620
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35613-28620
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB
09471-12006
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02111-04258
|
|||
|
Unavailable |
|||
|
#6
GASKET
35627-43010
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08312-32108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP RR TURN SI
35603-18411
Superseded by 35603-25610-999
|
$71.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
LENS
35612-28620
|
$11.41 | ||
|
Unavailable |
|||
|
#10
GASKET
35613-28620
|
$5.78 | ||
|
Unavailable |
|||
|
#11
BULB
09471-12006
|
$4.91 | ||
|
Unavailable |
|||
|
#12
SCREW
02111-04258
|
|||
|
Unavailable |
|||
|
#13
GASKET
35627-43010
|
$2.56 | ||
|
Unavailable |
|||
|
#14
NUT
08312-32108
Superseded by 08310-00107
|
$2.64 | ||
|
Unavailable |
|||
|
#15
COVER, FRONT TURNSIGNAL
35698-28000
|
$2.77 | ||
|
Unavailable |
|||
|
#16
BRACKET, TURNSIGNAL LAMP RH
41640-33001
|
$3.34 | ||
|
Unavailable |
|||
|
#17
BRACKET, TURNSIGNAL LAMP LH
41650-33001
|
$9.30 | ||
|
Unavailable |
|||
|
#18
BOLT
01111-10207
Superseded by 01500-1020B
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
08322-21108
Superseded by 08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
09407-11302
Superseded by 09407-18302
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
REFLEX REFLECTOR, FRONT
35950-45010
|
$21.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
08322-21058
Superseded by 08322-01057
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
