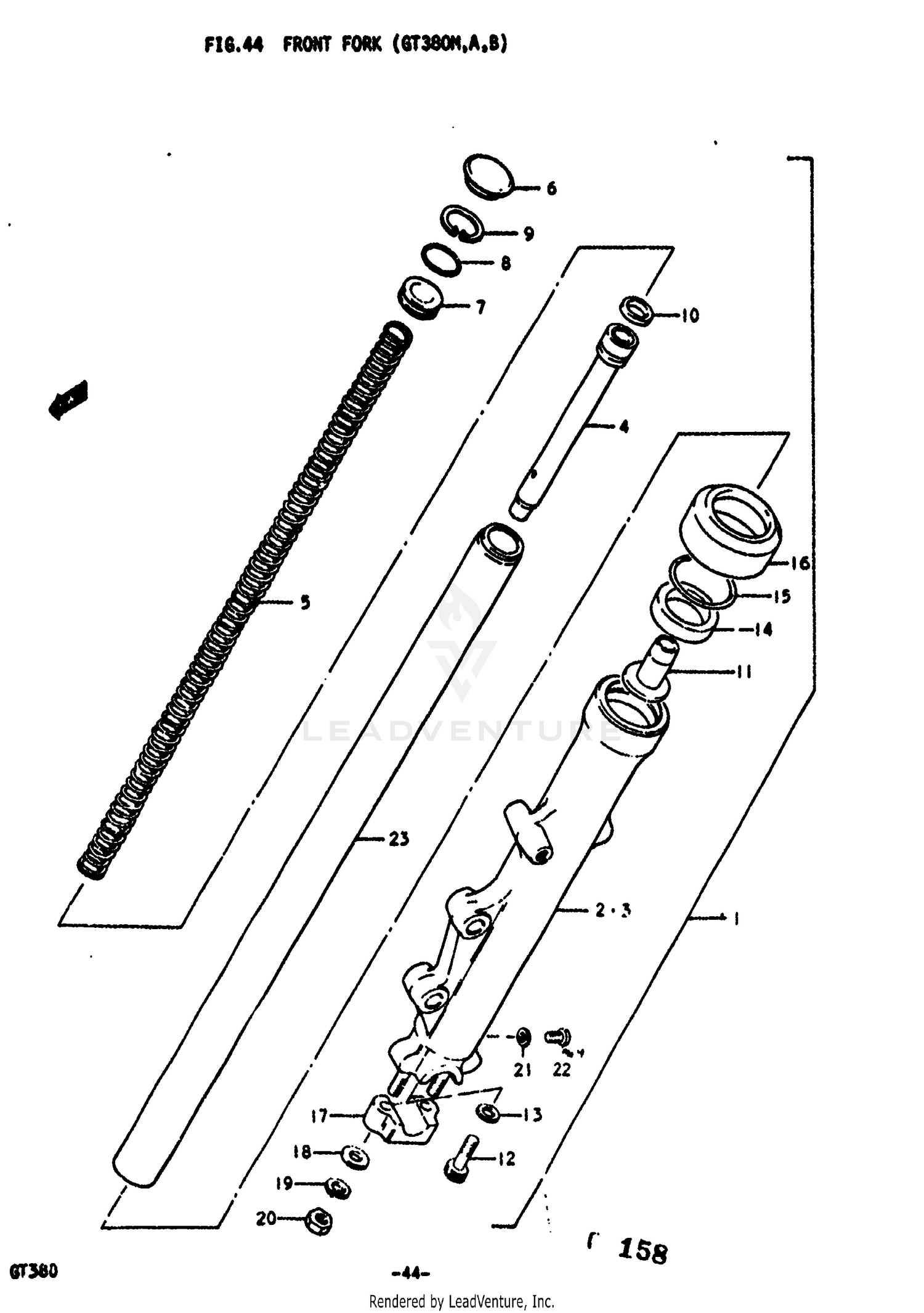

Front Fork (gt380m Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, RH
51103-33131
Superseded by 51103-33132
|
$243.81 | ||
|
Unavailable |
|||
|
#1
DAMPER ASSY, RH
51103-33132
|
$243.81 | ||
|
Unavailable |
|||
|
#1
DAMPER ASSY, LH
51104-33131
|
|||
|
Unavailable |
|||
|
#1
DAMPER ASSY, LH
51104-33132
|
$263.67 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE, RH
51130-33131
Superseded by 51130-33132
|
$135.81 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE, RH
51130-33132
|
$135.81 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE, LH
51140-33131
Superseded by 51140-33132
|
$121.93 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE, LH
51140-33132
|
$121.93 | ||
|
Unavailable |
|||
|
#4
SEAT, PIPE
51146-33130
|
$26.18 | ||
|
Unavailable |
|||
|
#5
SPRING
51171-33131
|
$24.23 | ||
|
Unavailable |
|||
|
#6
NO DESCRIPTION AVAILABLE
51189-33130
Superseded by 51189-13620
|
$3.99 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING
51172-33130
|
$6.28 | ||
|
Unavailable |
|||
|
#8
O RING
51181-33131
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
08331-41268
|
$1.06 | ||
|
Unavailable |
|||
|
#10
PISTON RING
51196-33130
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OLL LOCK
51195-33130
|
|||
|
Unavailable |
|||
|
#12
BOLT
51147-31030
Superseded by 51147-48130
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
51153-33730
Superseded by 51153-02B00
|
$26.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, OIL SEAL STOPPER
51156-33130
Superseded by 51156-02B00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUST SEAL
51571-33131
Superseded by 51571-37310
|
$26.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, AXIE
51132-31030
|
$34.09 | ||
|
Unavailable |
|||
|
#18
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT
08311-11088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
GASKET, DRAIN PLUG
51183-33030
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
02112-06068
Superseded by 02112-06067
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
INNER TUBE
51110-33131
|
$159.31 | ||
|
Unavailable |
|||
