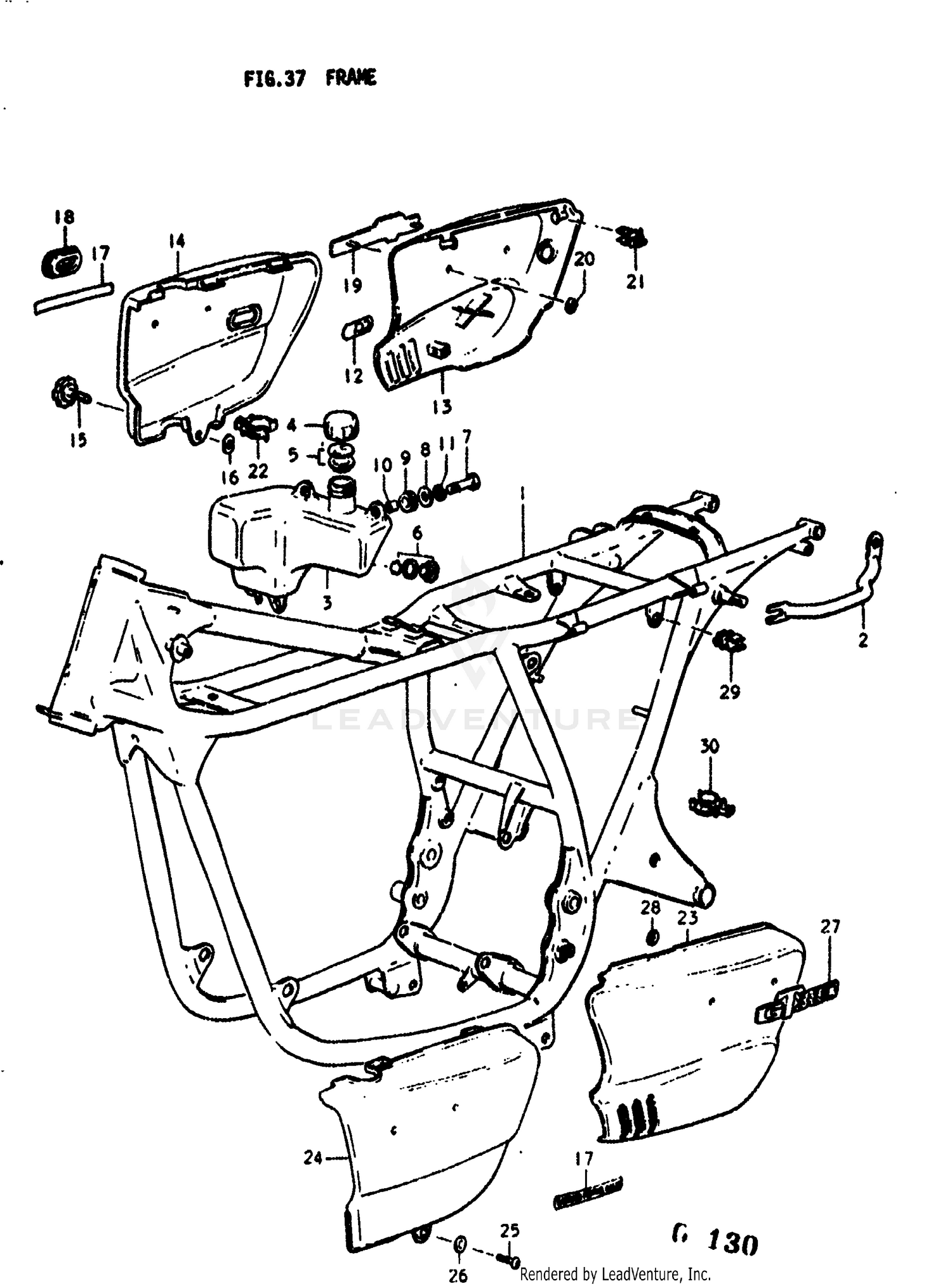

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
41100-33001-019
|
|||
|
Unavailable |
|||
|
#1
FRAME
41100-33002-019
|
|||
|
Unavailable |
|||
|
#1
FRAME
41100-33100-019
|
|||
|
Unavailable |
|||
|
#1
FRAME
41100-33101-019
|
|||
|
Unavailable |
|||
|
#2
GRIP, FRAME HANDLE
41411-33000
|
$11.41 | ||
|
Unavailable |
|||
|
#3
TANK, OIL
44611-33000
|
$41.50 | ||
|
Unavailable |
|||
|
#3
TANK, OIL
44611-33100
|
$42.50 | ||
|
Unavailable |
|||
|
#4
CAP, OIL TANK
44651-05000
Superseded by 44651-05003
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, OIL TANK
44651-05002
Superseded by 44651-05003
|
$6.24 | ||
|
Unavailable |
|||
|
#5
GASKET SET
44600-35820
Superseded by 44600-30833
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET SET
44600-35821
Superseded by 44600-30833
|
$6.70 | ||
|
Unavailable |
|||
|
#6
OIL LEVEL INSPE
44640-31807
Superseded by 44600-31832
|
$13.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL LEVEL INSPE
44600-31830
Superseded by 44600-31832
|
$13.67 | ||
|
Unavailable |
|||
|
#7
BOLT
01112-06258
Superseded by 01500-06257
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01112-06208
Superseded by 01500-06207
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER
09160-06007
Superseded by 09160-06084
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-10008
Superseded by 09320-10075
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X10X10)
09180-06030
Superseded by 09180-06310
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
EMBLEM, CCI
68171-26000
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
NO DESCRIPTION AVAILABLE
47111-33000-279
Superseded by 47111-33000-019
|
$59.63 | ||
|
Unavailable |
|||
|
#13
NO DESCRIPTION AVAILABLE
47111-33000-716
Superseded by 47111-33000-019
|
$59.63 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-156
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-176
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-00J
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-737
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-019
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-797
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-03F
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME RH
47111-34100-291
Superseded by 47111-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#15
KNOB, FRAME COVER RH
47130-33101
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, KNOB
09152-06002
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL, COMPANY NAME
68363-26200
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER, OIL LEVEL INSPECTION
44649-34100
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM, FRAME COVER RH
68141-33000
|
$32.35 | ||
|
Unavailable |
|||
|
#20
NUT
09148-03004
Superseded by 09148-03011
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
09410-00050
|
|||
|
Unavailable |
|||
|
#22
CLAMP
09410-00046
|
|||
|
Unavailable |
|||
|
#23
NO DESCRIPTION AVAILABLE
47211-33000-279
Superseded by 47211-33000-019
|
$39.12 | ||
|
Unavailable |
|||
|
#23
NO DESCRIPTION AVAILABLE
47211-33000-716
Superseded by 47211-33000-019
|
$39.12 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-156
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-176
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-00J
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-737
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-019
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-797
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-03F
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#24
COVER,FRAME LH
47211-34100-291
Superseded by 47211-34100
|
$75.50 | ||
|
Unavailable |
|||
|
#25
SCREW
02141-06168
|
|||
|
Unavailable |
|||
|
#26
WASHER
09169-06019
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (6.5X20X1.2)
09160-06027
Superseded by 09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
EMBLEM, FRAME COVER LH
68141-33000
|
$32.35 | ||
|
Unavailable |
|||
|
#28
NUT
09148-03004
Superseded by 09148-03011
|
$2.20 | ||
|
Unavailable |
|||
|
#29
CLAMP
09410-00050
|
|||
|
Unavailable |
|||
|
#30
CLAMP
09410-00046
|
|||
|
Unavailable |
|||
