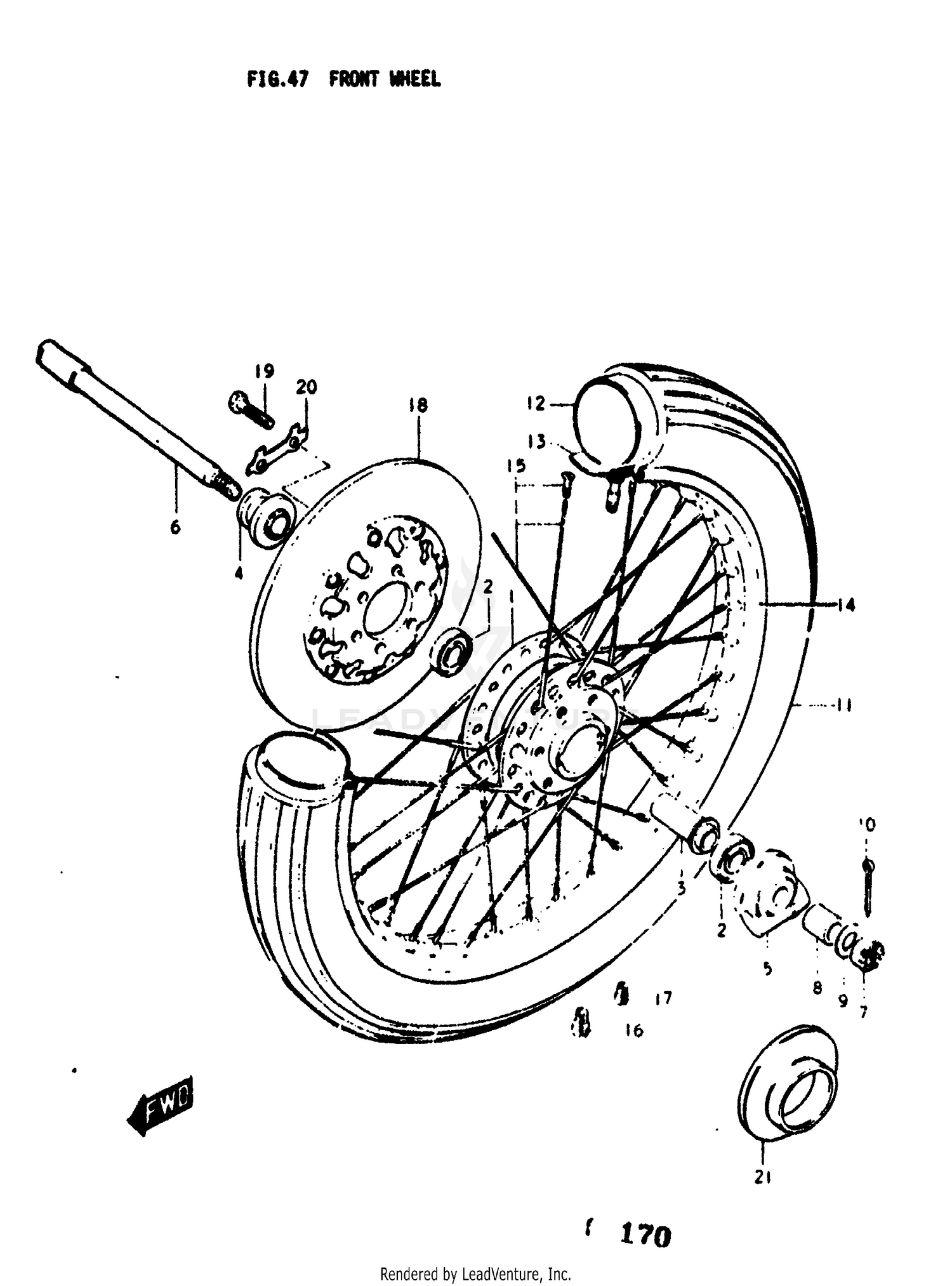

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54100-18830
|
|||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
54100-18831
Superseded by 54111-47002
|
$172.55 | ||
|
Unavailable |
|||
|
#2
BEARING
08123-63020
Superseded by 08123-6302B
|
$28.52 | ||
|
Unavailable |
|||
|
#3
SPACER
54730-18400
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, AXLE, RH
54740-18400
Superseded by 54740-18402
|
$24.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, AXLE, RH
54740-18401
Superseded by 54740-18402
|
$24.90 | ||
|
Unavailable |
|||
|
#5
BOX ASSY,SPEEDO
54600-34000
Superseded by 54600-08C01
|
$116.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOX ASSY,SPEEDO
54600-34001
Superseded by 54600-08C01
|
$116.62 | ||
|
Unavailable |
|||
|
#6
AXLE, FRONT
54711-33000
|
$19.55 | ||
|
Unavailable |
|||
|
#6
AXLE,FRONT
54711-33001
Superseded by 54711-3300V
|
$44.80 | ||
|
Unavailable |
|||
|
#6
AXLE,FRONT
54711-33002
Superseded by 54711-3300V
|
$44.80 | ||
|
Unavailable |
|||
|
#7
NUT
54721-31000
|
$18.14 | ||
|
Unavailable |
|||
|
#7
NUT
08314-31128
Superseded by 08314-3112A
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
09180-15034
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN
04111-30308
Superseded by 04111-3030A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
NO DESCRIPTION AVAILABLE
55100-33030
Superseded by 55100-33610
|
$58.48 | ||
|
Unavailable |
|||
|
#11
TIRE
55100-33012
|
|||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
55100-33600
Superseded by 55100-33610
|
$58.48 | ||
|
Unavailable |
|||
|
#12
TUBE
55200-33030
|
$15.37 | ||
|
Unavailable |
|||
|
#12
TUBE
55200-29010
|
$21.56 | ||
|
Unavailable |
|||
|
#13
PROTECTOR
55261-15030
|
|||
|
Unavailable |
|||
|
#13
PROTECTOR, WHEEL INNER TUBE FRONT
55261-15010
Superseded by 55261-15020
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIM
55311-33600
|
$70.82 | ||
|
Unavailable |
|||
|
#15
SPOKE SET
55320-34805
Superseded by 55320-45000
|
$94.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALANCER,WHEEL (30G)
55412-11000
Superseded by 55413-41F00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALANCER,WHEEL (15G)
55411-11000
Superseded by 55411-26G00
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
DISK, FRONT BRAKE
59210-18400
|
|||
|
Unavailable |
|||
|
#18
NO DESCRIPTION AVAILABLE
59210-18401
Superseded by 59210-18402
|
$340.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, DISK
09100-08094
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
09169-08016
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL
54871-18400
|
$6.40 | ||
|
Unavailable |
|||
