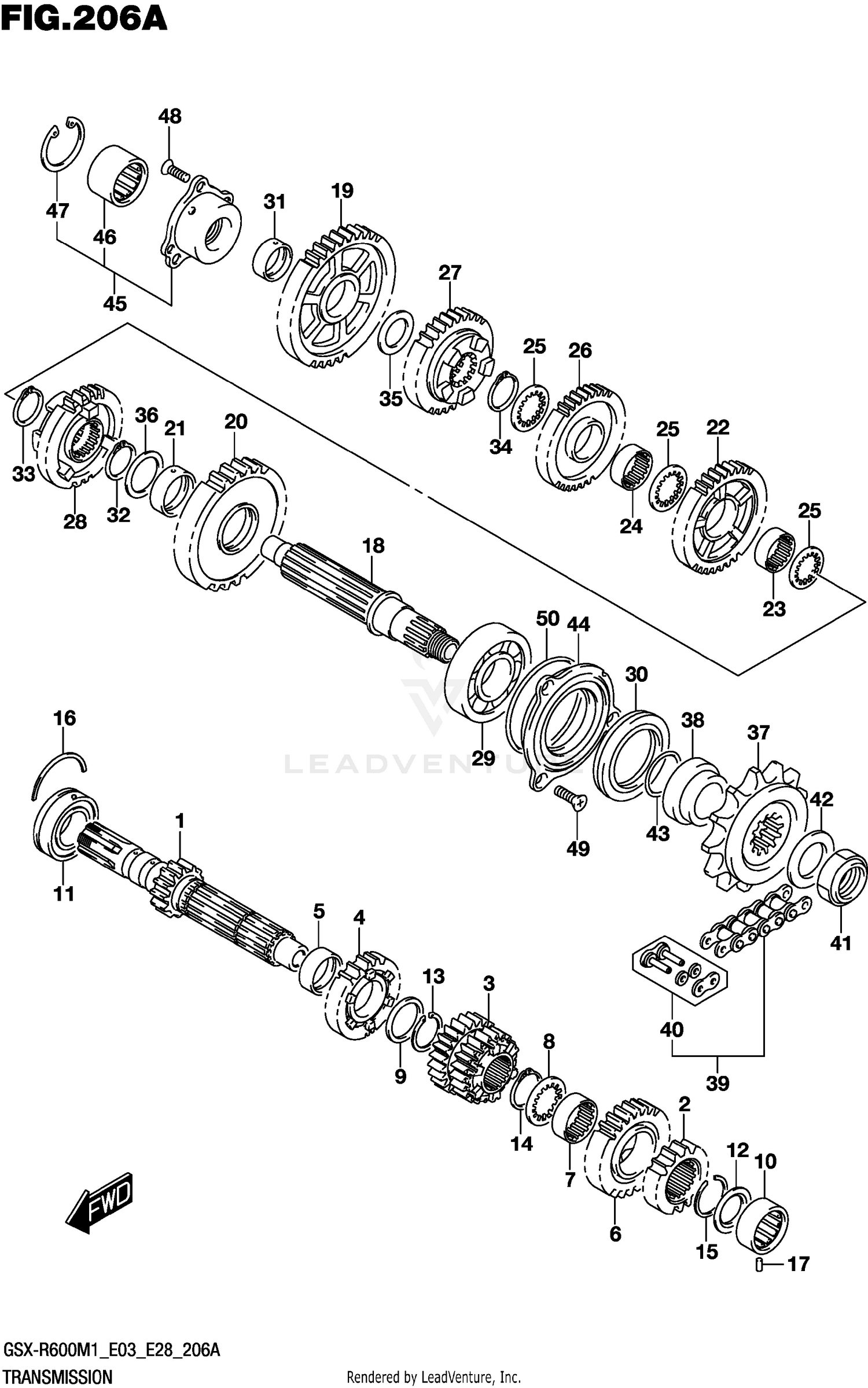

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#9
WASHER (27X36X1.0)
09160-27008
|
$4.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BEARING (20X34X13.5)
09263-20087
|
$54.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (25X62X17)
09262-25150
|
$89.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL,OIL (20X31.2X2.7)
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP
09380-27006
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#15
CIRCLIP
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
C RING
09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN (6X10)
09261-06003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT,DRIVE
24131-14J00
|
$363.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR,1ST DRIVEN (NT:43)
24311-14J00
|
$187.46 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR,2ND DRIVEN (NT40)
24321-14J00
|
$187.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH,2ND DRIVEN GEAR
24322-35F00
|
$23.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR,3RD DRIVEN (NT:37)
24331-14J00
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH,3RD DRIVEN GEAR
24332-46H00
|
$43.96 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH,3RD DRIVEN GEAR
24332-46H00
|
$43.96 | ||
|
Unavailable |
|||
|
#25
WASHER,3RD & 4TH DRIVEN
24333-02F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR,4TH DRIVEN (NT:35)
24341-14J00
|
$196.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR,5TH DRIVEN (NT:31)
24351-01H01
|
$171.01 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR,6TH DRIVEN (NT:32)
24361-14J00
|
$181.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING (28X68X18)
09262-28045
|
$113.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (42X62X7)
09283-42018
|
$45.64 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH (22X26X9)
09300-22008
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#33
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#34
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#35
SHIM (22X34X1)
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER (27X36X1.0)
09160-27008
|
$4.01 | ||
|
Unavailable |
|||
|
#37
SPROCKET,ENGINE (NT:16)
27510-20A10
|
$82.08 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER,ENGINE SPROCKET
27531-14J00
|
$46.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
CHAIN ASSY,DRIVE (RK 525SMOZ8
27600-06G40-114
|
$221.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
.JOINT SET,DRIVE CHAIN
27620-06G40
|
$23.83 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER (25X41X3)
09160-25009
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#43
O RING (D:2.4,ID:23.7)
09280-24010
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#44
RETAINER,DRIVE SHAFT BRG LH
24751-14J00
|
$134.53 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOUSING,DRIVE SHAFT SET
24771-01810
|
$187.46 | ||
|
Available to order. Add to View Price |
|||
|
#46
.BEARING (20X34X17.5)
09263-20069
|
$56.65 | ||
|
Unavailable |
|||
|
#47
CIRCLIP
08331-41349
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW (6X20)
09139-06159
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW (6X20)
09139-06159
|
$4.47 | ||
|
Unavailable |
|||
|
#50
O RING (D:1.8,ID:67.5)
09280-68010
|
$15.21 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHAFT,CNTR (NT:16)
24120-14J00
|
$367.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR,2ND DRIVE (NT:19)
24221-14J00
|
$105.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,3RD & 4TH DRIVE (NT:21/2
24231-14J00
|
$235.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR,5TH DRIVE (NT:23)
24251-01H00
|
$189.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH,5TH DRIVE GEAR
24252-35F00
|
$27.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR,6TH DRIVE (NT:26)
24261-14J00
|
$139.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH,6TH DRIVE GEAR
24262-35F10
|
$32.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK (27X36X1)
09167-27001
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
