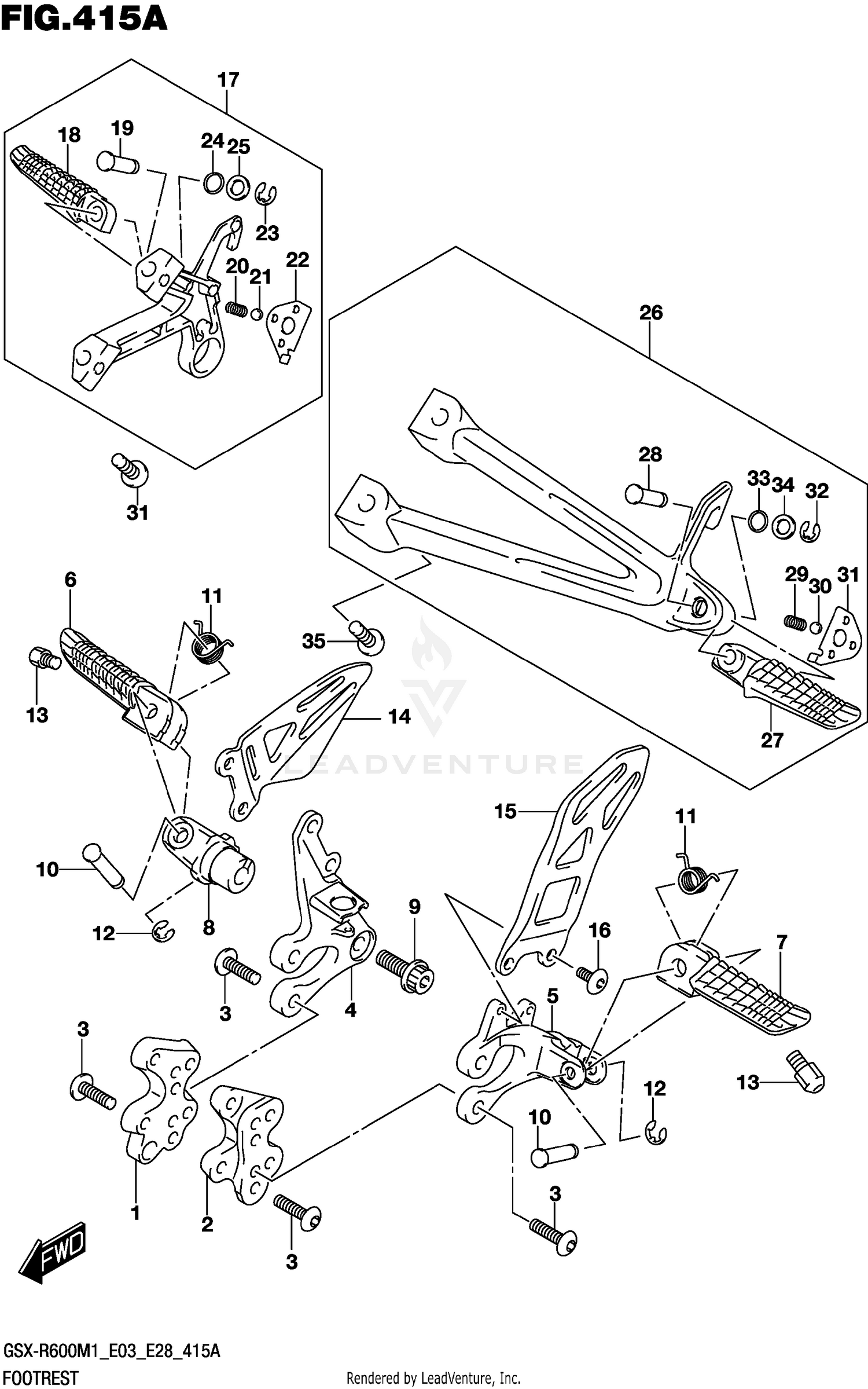

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,FR FOOTREST NO.1 RH
43541-14J10
|
$51.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET,FR FOOTREST NO.1 LH
43551-14J10
|
$51.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X23)
09106-08186
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,FR FOOTREST NO.2 RH
43511-14J10
|
$118.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET,FR FOOTREST NO.2 LH
43521-47H20
|
$112.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, FOOTREST RH
43516-37H10
|
$43.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR, FOOTREST LH
43526-37H10
|
$67.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, FOOTREST
43531-41G20
|
$100.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (10X28)
09106-10064
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09208-08018
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
43581-47H00
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
E-RING
08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,BANK SENSOR
43576-07D10
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, FOOTREST LH
43576-47H40
|
$91.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FOOTREST RH
43571-47H30
|
$87.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,FOOTREST GUARD LH
43577-35F10
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST, PILLION RH
43600-14J30
|
$219.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAR, PILLION FOOTREST RH
43611-37H30
|
$57.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
09208-08020
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-05003
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
.PLATE,PILLION FOOTREST RH
43816-47H00
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
E-RING
08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#24
.O RING (D:2.4,ID:6.9)
09280-08013
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
09160-08091
Superseded by 09160-08082
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTREST, PILLION LH
43700-14J30
|
$209.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAR, PILLION FOOTREST LH
43621-37H30
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN
09208-08020
|
$3.62 | ||
|
Unavailable |
|||
|
#29
SPRING
09440-05003
|
$1.79 | ||
|
Unavailable |
|||
|
#30
BALL
06111-07004
|
$1.53 | ||
|
Unavailable |
|||
|
#31
.PLATE,PILLION FOOTREST LH
43826-47H00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#32
E-RING
08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#33
.O RING (D:2.4,ID:6.9)
09280-08013
|
$2.67 | ||
|
Unavailable |
|||
|
#34
WASHER
09160-08091
Superseded by 09160-08082
|
$2.05 | ||
|
Unavailable |
|||
|
#35
BOLT (8X23)
09106-08186
|
$4.29 | ||
|
Unavailable |
|||
