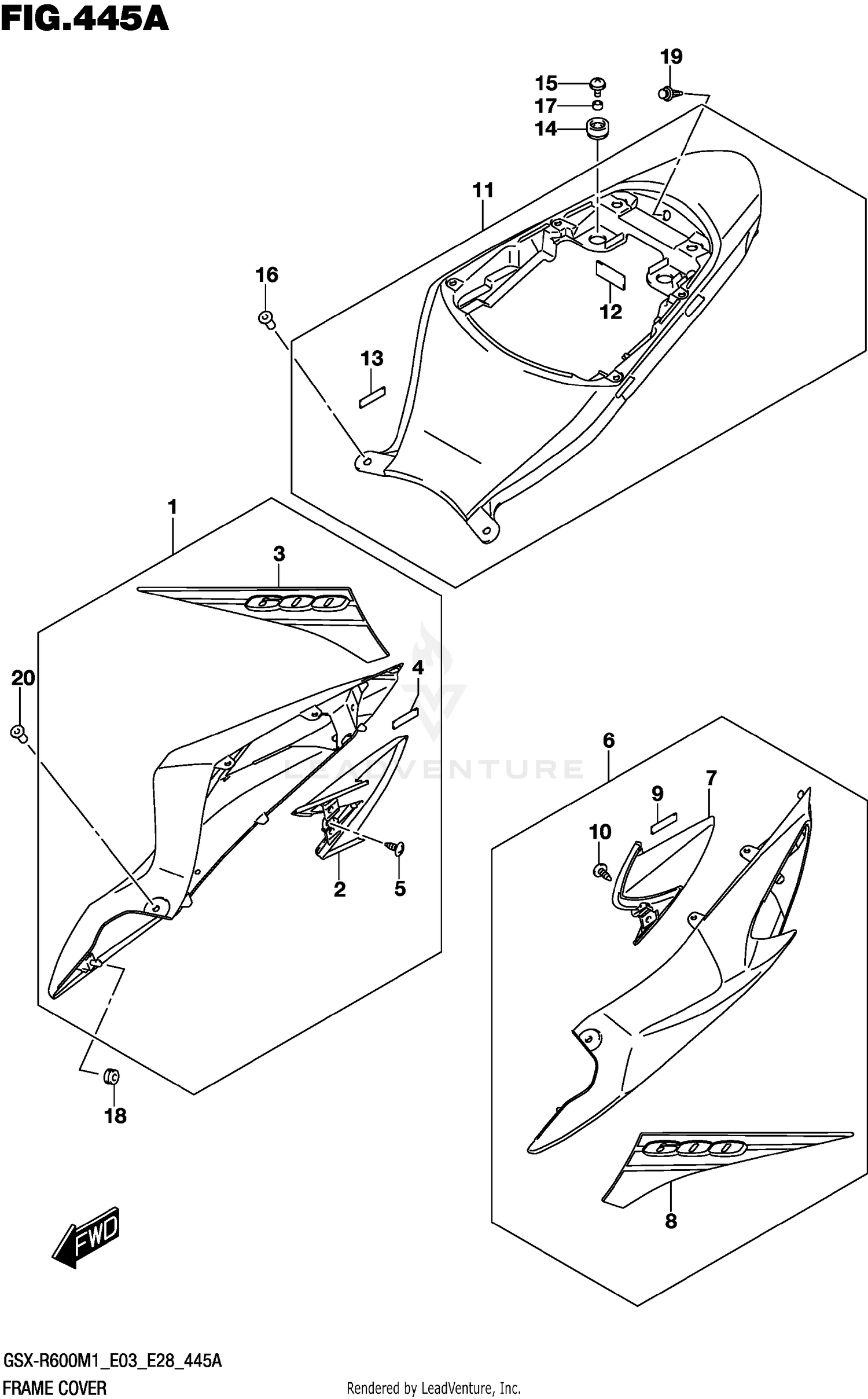

Frame Cover (gsx-r600) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
COVER ASSY,FRAME,R (BLACK)
47100-14J10-4TX
|
|||
|
Unavailable |
|||
|
#1-2
COVER ASSY,FRAME,R (WHITE)
47100-14J10-YUH
|
$125.03 | ||
|
Unavailable |
|||
|
#2
.COVER,FRAME REAR RH
47611-14J00
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
.EMBLEM,"600" (BLACK)
68131-14J00-CRU
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
.EMBLEM,"600" (BLACK,WHITE)
68131-14J00-BSS
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03541-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
COVER ASSY,FRAME,L (BLACK)
47200-14J10-4TX
|
|||
|
Unavailable |
|||
|
#6-2
COVER ASSY,FRAME,L (WHITE)
47200-14J10-YUH
|
$141.35 | ||
|
Unavailable |
|||
|
#7
.COVER,FRAME REAR LH
47621-14J00
|
$24.25 | ||
|
Available to order. Add to View Price |
|||
|
#8-1
.EMBLEM,"600" (BLACK)
68131-14J00-CRU
|
$11.02 | ||
|
Unavailable |
|||
|
#8-2
.EMBLEM,"600" (BLACK,WHITE)
68131-14J00-BSS
|
$11.02 | ||
|
Unavailable |
|||
|
#9
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Unavailable |
|||
|
#10
SCREW
03541-0512A
|
$1.70 | ||
|
Unavailable |
|||
|
#11
COVER ASSY,FRAME CTR
47300-14J01
Superseded by 47300-14J10
|
$124.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION (10X24X1)
48128-14FA0
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Unavailable |
|||
|
#14
.CUSHION (10X24X13)
47312-37H10
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (6X16)
09136-06056
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT (M5)
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPACER (6.5X10X7)
09180-06283
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION
09320-06504
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW
02142-1520B
|
$2.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
