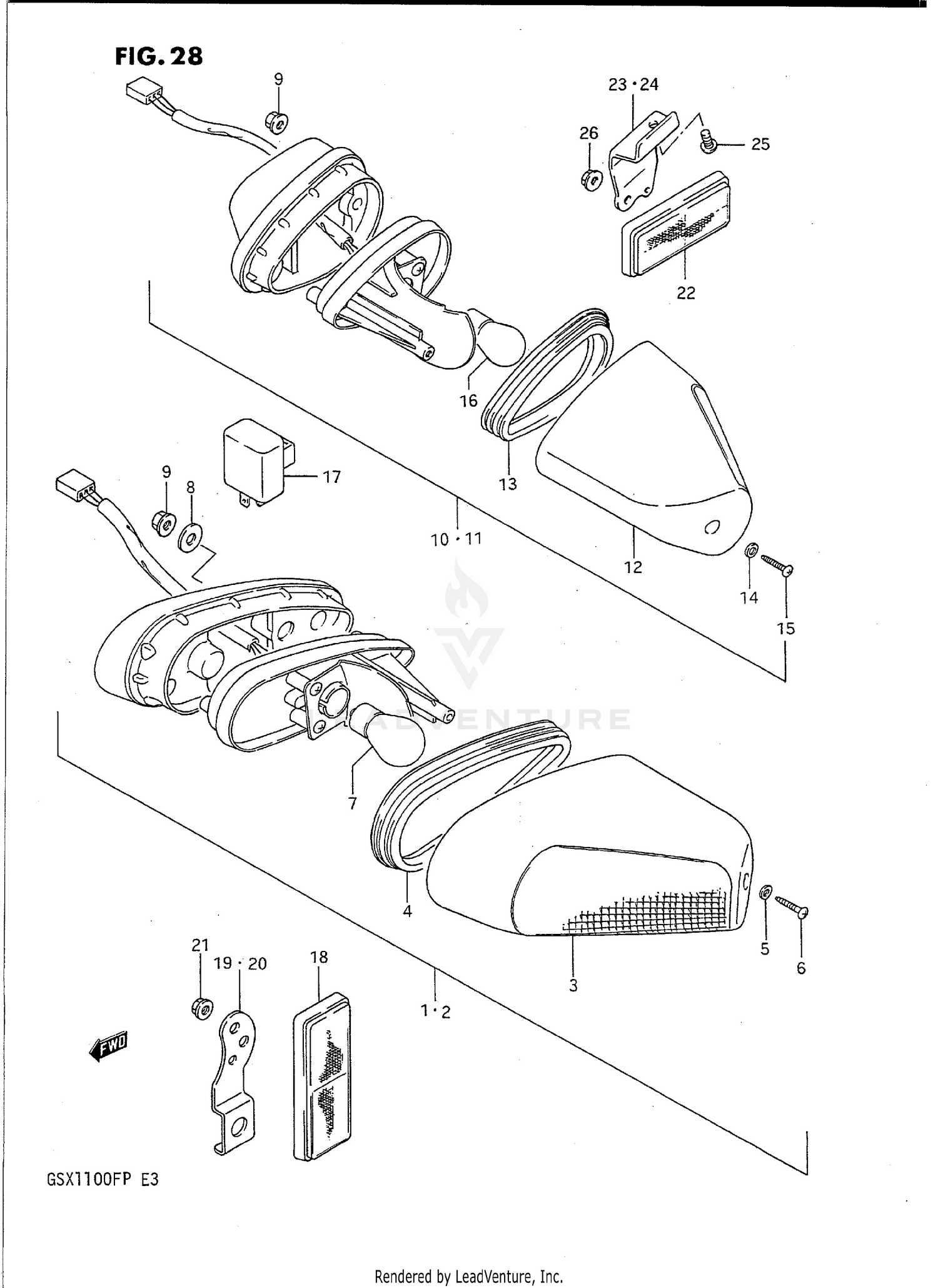

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURN SIGNAL
35601-48B31-291
|
$151.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP ASSY, FRONT TURN SIGNAL
35602-48B31-291
|
$155.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS
35612-48B20-291
|
$65.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
35643-48B20
|
$12.02 | ||
|
Unavailable |
|||
|
#5
GASKET
35627-43010
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03211-04165
Superseded by 03211-0416A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB (12V,21/5W)
09471-12046
Superseded by 09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-06039
Superseded by 09160-06109
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08316-16064
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
LAMP ASSY, REAR TURN SIGNAL
35603-48B30-291
|
$104.71 | ||
|
Unavailable |
|||
|
#11
LAMP ASSY, REAR TURN SIGNAL
35604-48B30-291
|
$139.14 | ||
|
Unavailable |
|||
|
#12
LENS
35652-48B20-291
|
$62.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
35643-48B20
|
$12.02 | ||
|
Unavailable |
|||
|
#14
GASKET
35627-43010
|
$2.68 | ||
|
Unavailable |
|||
|
#15
SCREW
03211-04165
Superseded by 03211-0416A
|
$1.80 | ||
|
Unavailable |
|||
|
#16
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY ASSY,TURN SIGNAL
38610-31310
Superseded by 38610-31X50
|
$90.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
REFLEX REFLECTOR, FRONT SIDE
35950-43431
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, FRONT SIDE RH
35956-48B10
|
$4.81 | ||
|
Unavailable |
|||
|
#20
BRACKET, FRONT SIDE LH
35957-48B10
|
$5.16 | ||
|
Unavailable |
|||
|
#21
NUT
08316-16055
|
$1.00 | ||
|
Unavailable |
|||
|
#22
REFLEX REFLECTOR, REAR SIDE
35970-00A10
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, REAR SIDE RH
35975-48B10
|
$5.31 | ||
|
Unavailable |
|||
|
#24
BRACKET, REAR SIDE LH
35976-48B10
|
$5.43 | ||
|
Unavailable |
|||
|
#25
.SCREW
02142-06164
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08316-16055
|
$1.00 | ||
|
Unavailable |
|||
