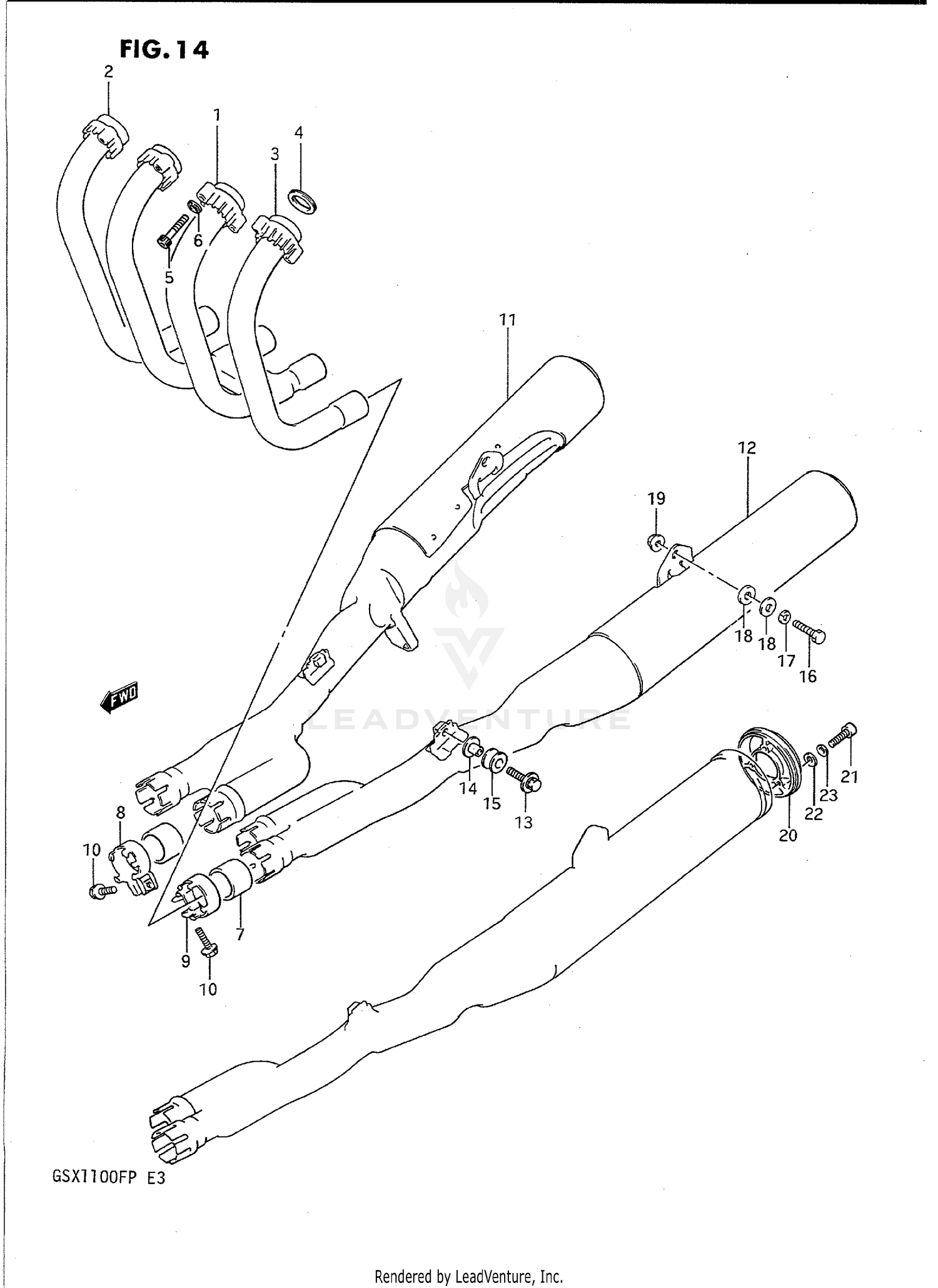

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST ASSY, CENTER
14100-48B01-H01
|
$241.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, EXHAUST RH
14150-48B01
|
$145.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, EXHAUST LH
14160-48B01
|
$98.08 | ||
|
Unavailable |
|||
|
#4
.GASKET,EXHAUST
14181-48B00
Superseded by 14181-18C00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
.GASKET,EXHAUST
14181-18C00
|
$9.32 | ||
|
Unavailable |
|||
|
#5
BOLT
07110-08355
Superseded by 07130-0835B
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR, MUFFLER
14771-48B01
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP,MUFFLER C
14459-32C00
Superseded by 14459-48B00
|
$12.50 | ||
|
Unavailable |
|||
|
#9
CLAMP,MUFFLER C
14469-32C00
Superseded by 14469-48B00
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-08355
Superseded by 01550-0835A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
NO DESCRIPTION AVAILABLE
14305-48B30-H01
Superseded by 14305-48C11-H01
|
$308.97 | ||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
14305-48C30-H01
Superseded by 14305-48C11-H01
|
$308.97 | ||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
14305-48C80-H01
Superseded by 14305-48C63-H01
|
$424.02 | ||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
14305-48C81-H01
Superseded by 14305-48C63-H01
|
$424.02 | ||
|
Unavailable |
|||
|
#12
NO DESCRIPTION AVAILABLE
14306-48B30-H01
Superseded by 14306-48C11-H01
|
$308.97 | ||
|
Unavailable |
|||
|
#12
NO DESCRIPTION AVAILABLE
14306-48C30-H01
Superseded by 14306-48C11-H01
|
$308.97 | ||
|
Unavailable |
|||
|
#12
NO DESCRIPTION AVAILABLE
14306-48C80-H01
Superseded by 14306-48C63-H01
|
$279.31 | ||
|
Unavailable |
|||
|
#12
NO DESCRIPTION AVAILABLE
14306-48C81-H01
Superseded by 14306-48C63-H01
|
$279.31 | ||
|
Unavailable |
|||
|
#13
NO DESCRIPTION AVAILABLE
09118-08072
Superseded by 09118-08154
|
$4.60 | ||
|
Unavailable |
|||
|
#14
SPACER
09180-08151
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-12043
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (10X38)
09100-10227
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
NO DESCRIPTION AVAILABLE
09103-10207
Superseded by 09103-10279
|
$2.59 | ||
|
Unavailable |
|||
|
#17
LOCK WASHER
08321-21107
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOWER (10.5X24X2.3)
09160-10001
Superseded by 09160-10093
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, WHEEL SET
08316-16108
Superseded by 08316-10107
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, MUFFLER TAIL
14791-48C40
|
$36.24 | ||
|
Unavailable |
|||
|
#21
BOLT (6X15)
09106-06069
Superseded by 09106-06078
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (6X15)
09106-06078
|
$3.67 | ||
|
Unavailable |
|||
|
#22
WASHER (7X12X1)
09160-06055
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
LOCK WASHER
09164-06013
|
$2.15 | ||
|
Unavailable |
|||
