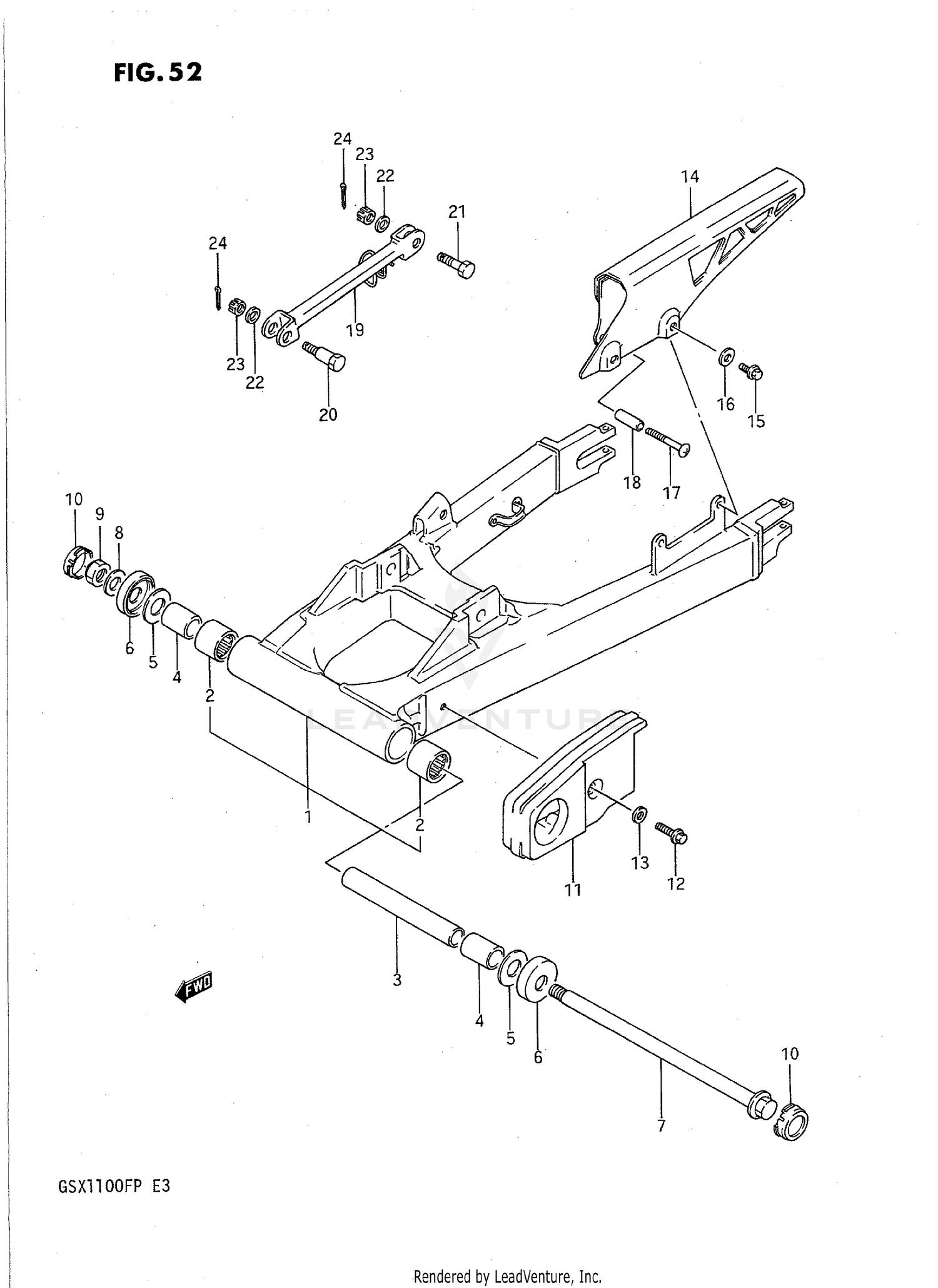

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR
61000-48B10
|
$704.74 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM ASSY, REAR
61000-48C00
|
$862.22 | ||
|
Unavailable |
|||
|
#2
BEARING
09263-25024
|
$33.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, CENTER
61282-48B00
|
$12.64 | ||
|
Unavailable |
|||
|
#4
SPACER, PIVOT SHAFT
61251-49000
|
$35.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
08211-16381
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER,RR SWINGI
61262-49201
Superseded by 61262-49202
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, SWINGING ARM PIVOT
61211-48B11
|
$41.17 | ||
|
Unavailable |
|||
|
#7
SHAFT, SWINGING ARM PIVOT
61211-20C00
|
$40.05 | ||
|
Unavailable |
|||
|
#8
WASHER
09160-14015
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-14013
Superseded by 09159-14019
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, SWINGING ARM PIVOT
61222-48B00
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUFFER, CHAIN TOUCH DEFENSE
61273-48B11
|
$55.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01517-06207
Superseded by 01550-06207
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09169-06040
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE, CHAIN
61310-48B00
|
$63.07 | ||
|
Unavailable |
|||
|
#15
BOLT, CLAMP
01517-06125
Superseded by 01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
09169-06026
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
NO DESCRIPTION AVAILABLE
02142-06558
Superseded by 02142-06557
|
$2.03 | ||
|
Unavailable |
|||
|
#18
SPACER
09180-06130
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
TORQUE LINK, REAR
64310-48B10
|
$18.03 | ||
|
Unavailable |
|||
|
#20
BOLT,10X39
09111-10011
Superseded by 09111-10022-XC0
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, REAR
09101-10039
|
$2.47 | ||
|
Unavailable |
|||
|
#22
WASHER
08322-11104
Superseded by 08322-0110A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT
08314-41108
Superseded by 08314-4010B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
