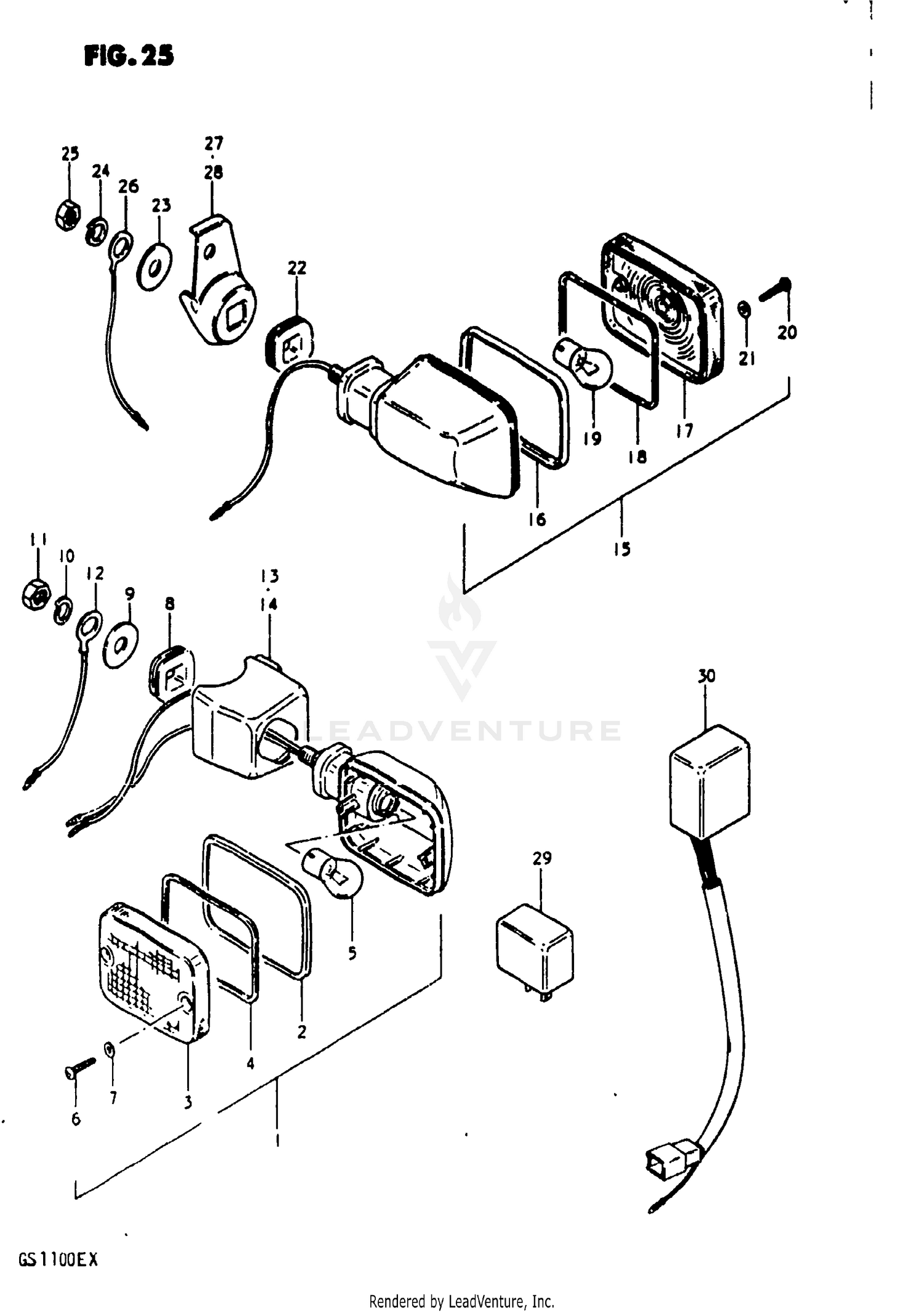

Turn Signal Lamp (gs1100ex) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP, FRONT TURN SIGNAL
35601-49210
Superseded by 35601-49330
|
$52.64 | ||
|
Unavailable |
|||
|
#2
RIM
35611-49230
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS
35612-49010
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
35613-49230
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB (12V,23V/8W)
09471-12035
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03211-04208
Superseded by 03211-04207
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
35627-43010
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-15002
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, UPPER, OUTER
09160-10006
Superseded by 09160-10501
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08310-12108
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEAD WIRE, EARTH
36851-49000
|
$3.07 | ||
|
Unavailable |
|||
|
#13
COVER, RH
35697-49200
|
$9.25 | ||
|
Unavailable |
|||
|
#14
COVER, LH
35698-49200
|
$8.70 | ||
|
Unavailable |
|||
|
#15
NO DESCRIPTION AVAILABLE
35601-44130
Superseded by 35601-44184-999
|
$98.19 | ||
|
Unavailable |
|||
|
#16
RIM
35611-49230
|
$14.35 | ||
|
Unavailable |
|||
|
#17
LENS
35612-49230
Superseded by 35612-49231
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
35613-49230
|
$6.08 | ||
|
Unavailable |
|||
|
#19
BULB (12V,23W)
09471-12006
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
03211-04208
Superseded by 03211-04207
|
$1.63 | ||
|
Unavailable |
|||
|
#21
GASKET
35627-43010
|
$2.68 | ||
|
Unavailable |
|||
|
#22
CUSHION
09320-15002
|
$5.26 | ||
|
Unavailable |
|||
|
#23
WASHER, UPPER, OUTER
09160-10006
Superseded by 09160-10501
|
$2.81 | ||
|
Unavailable |
|||
|
#24
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Unavailable |
|||
|
#25
NUT
08310-12108
Superseded by 08310-00107
|
$2.72 | ||
|
Unavailable |
|||
|
#26
LEAD WIRE, EARTH
36660-33000
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, REAR RH
35620-49200
Superseded by 35621-49200
|
$6.68 | ||
|
Unavailable |
|||
|
#28
BRACKET, REAR LH
35640-49200
Superseded by 35641-49200
|
$6.68 | ||
|
Unavailable |
|||
|
#29
RELAY, TURN SIGNAL
38610-49231
|
$59.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
UNIT,TURN SIG C
38830-49200
Superseded by 38830-49X00
|
$346.34 | ||
|
Available to order. Add to View Price |
|||
