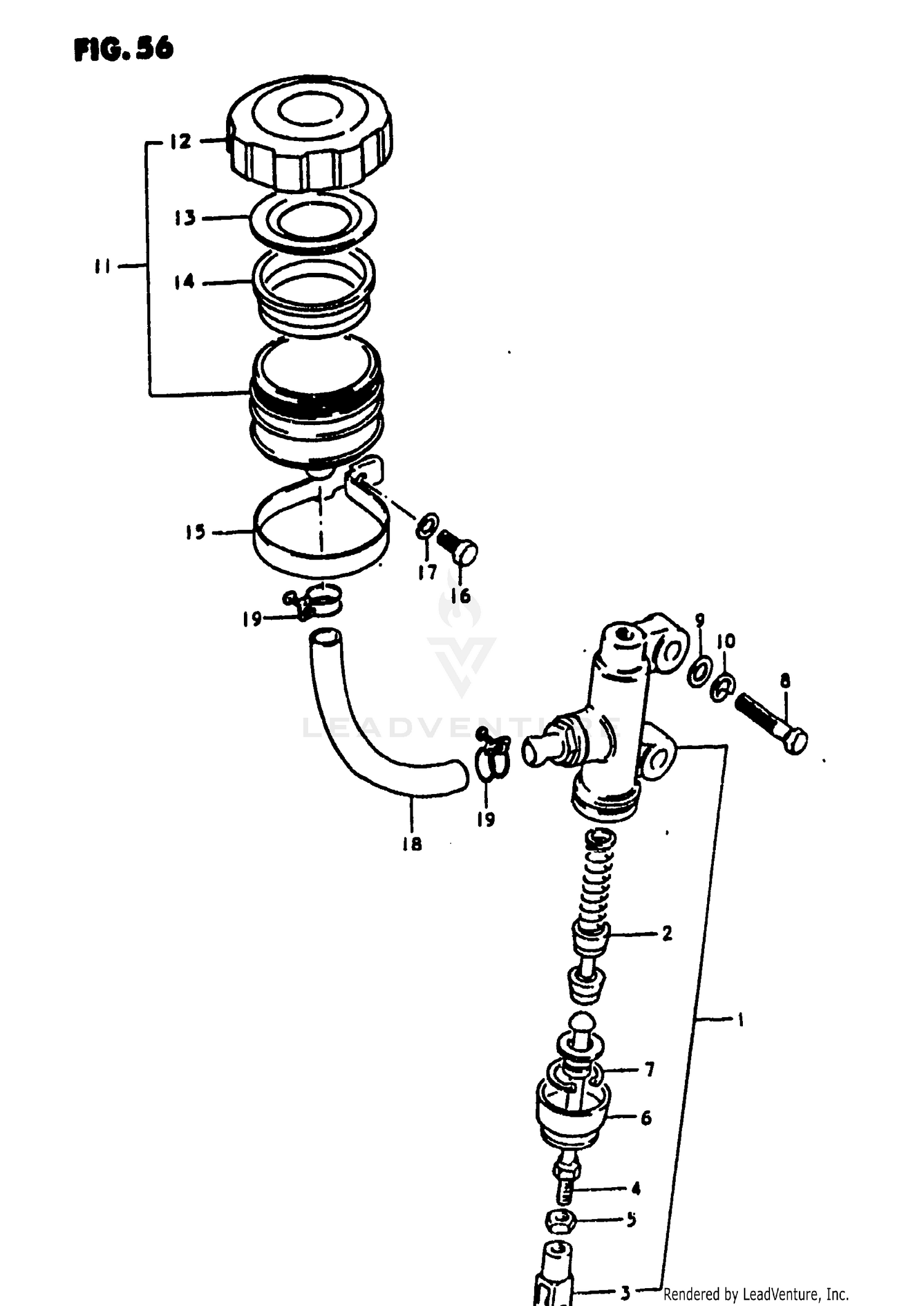

Rear Master Cylinder (gs1100ex) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,R
69600-47001
Superseded by 69600-47011
|
$274.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON & CUP SET
69600-45810
Superseded by 69600-45820
|
$60.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, PUSH
69670-45000
Superseded by 69670-45001
|
$20.21 | ||
|
Unavailable |
|||
|
#3
YOKE
69692-45001
Superseded by 69692-34300
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOOT
69691-45001
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
51162-70040
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01107-08308
Superseded by 01500-08307
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
TANK ASSY, RESE
69740-47011
Superseded by 69740-470V0
|
$59.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP
59669-33603
Superseded by 59669-07D00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PLATE
59668-18441
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
59667-18441
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09402-51601
Superseded by 09402-51602
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HOSE,BRAKE RESE
69731-49000
Superseded by 51241-85X50
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
09400-16301
Superseded by 09400-16304
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
