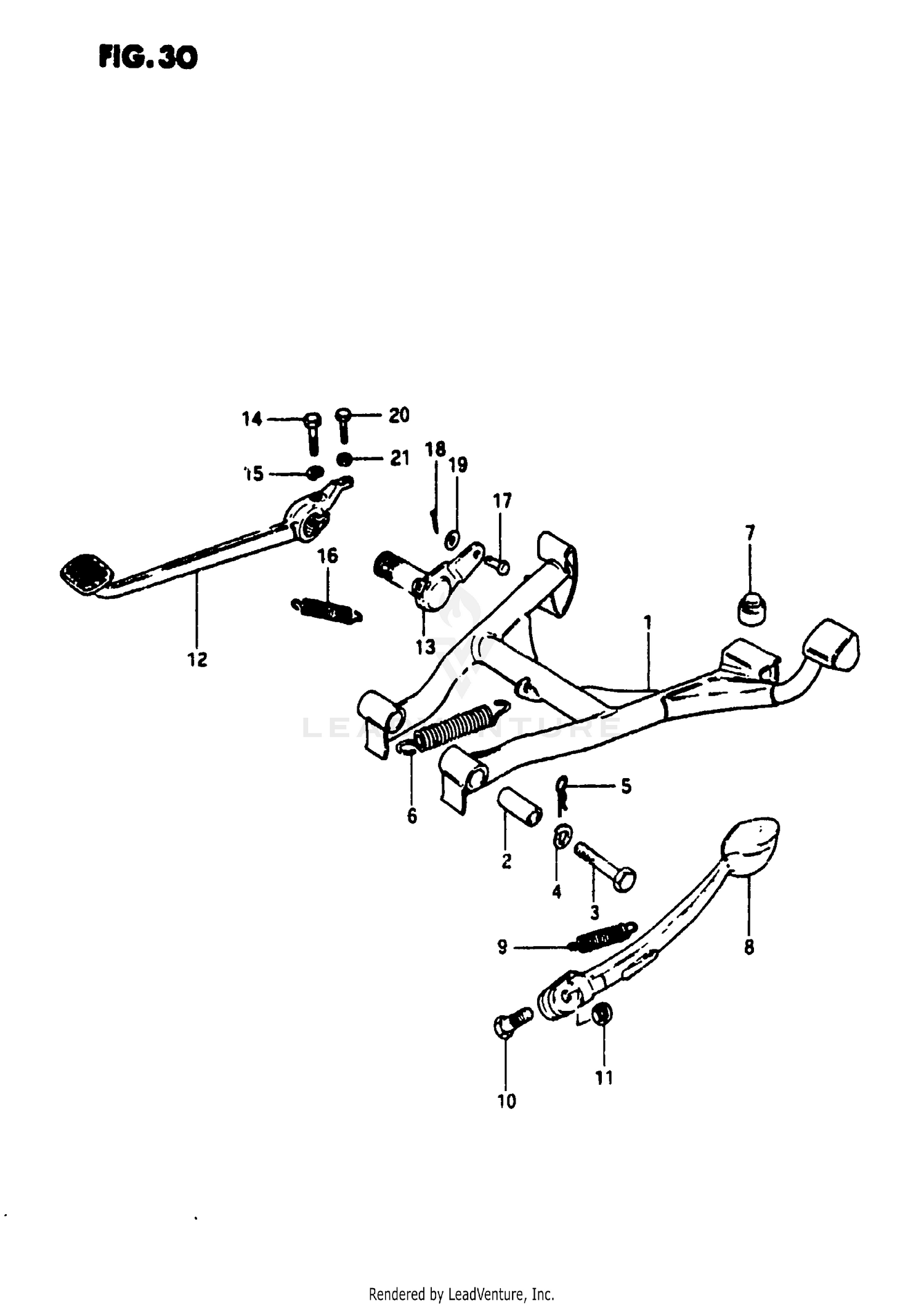

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, CENTER
42100-49200
|
$72.60 | ||
|
Unavailable |
|||
|
#2
SPACER (10.7x15.9x38)
09180-10040
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, 10 X 65
09101-10018
Superseded by 09101-10030
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
09385-10001
Superseded by 09385-10005
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09443-20001
Superseded by 09443-20001-XC0
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09321-10001
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAND, PROP
42311-49200
|
$40.90 | ||
|
Unavailable |
|||
|
#9
SPRING
09443-17005
Superseded by 09443-17008-XC0
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
09443-17008
Superseded by 09443-17008-XC0
|
$8.93 | ||
|
Unavailable |
|||
|
#10
BOLT (10x30)
09100-10067
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08310-22108
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
PEDAL, BRAKE
43110-49200
|
$66.21 | ||
|
Unavailable |
|||
|
#13
ARM, BRAKE PEDAL ROD
43120-49210
|
$29.12 | ||
|
Unavailable |
|||
|
#14
BOLT
01107-08258
Superseded by 01500-08257
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING
09443-14013
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
09200-06029
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
01107-06208
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
