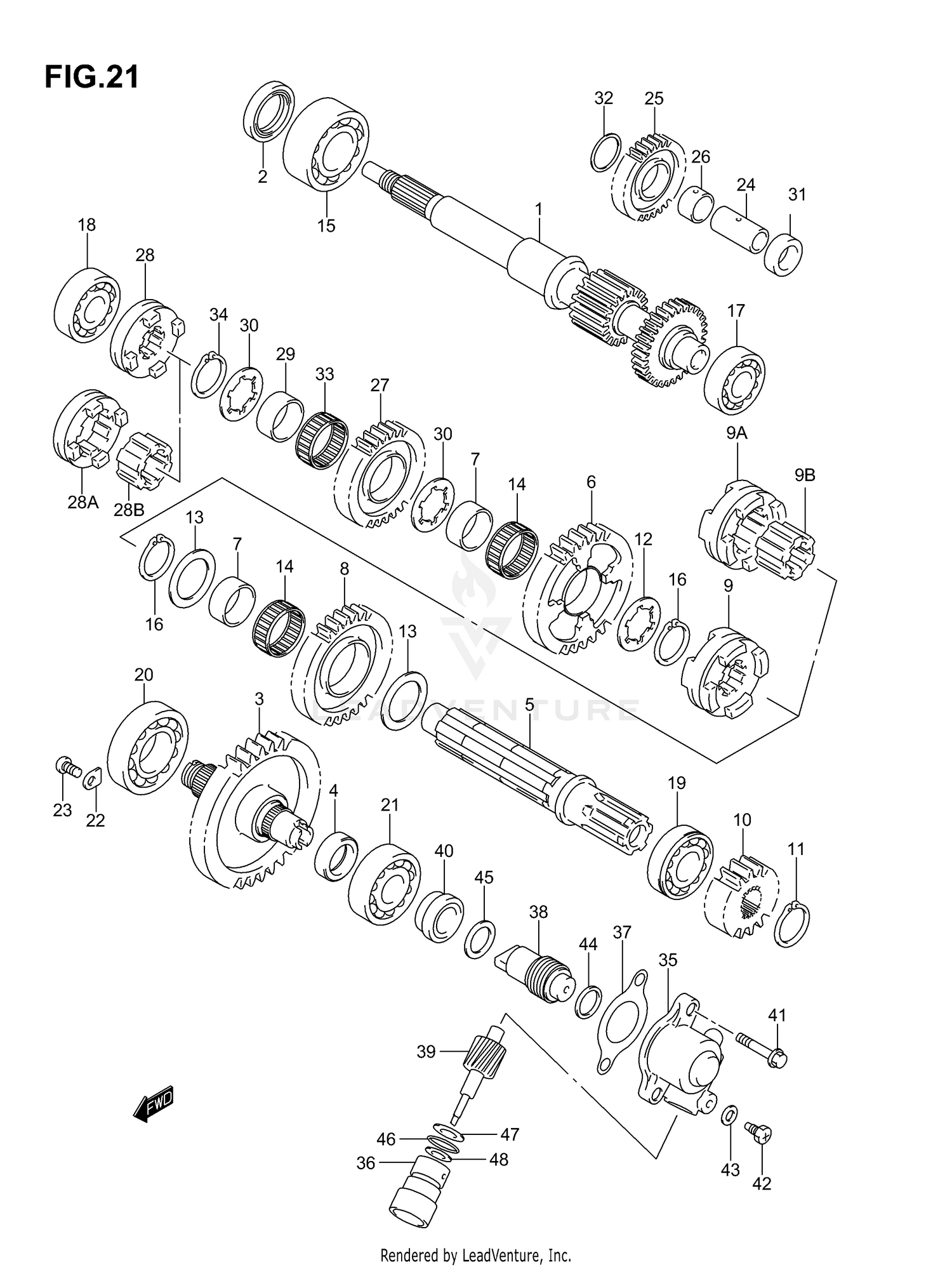

Transmission (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#28B
SPACER, REVERSE IDLE
24582-38F10
|
$31.03 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH, REVERSE DRIVEN GEAR
29315-09F51
|
$31.71 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, REVERSE DRIVEN GEAR
09167-25017
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPACER, REVERSE IDLE
09180-20082
|
$5.65 | ||
|
Unavailable |
|||
|
#32
WASHER, REVERSE IDLE GEAR
09181-20195
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, REVERSE DRIVEN GEAR
09263-30018
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#34
RING,SNAP
09380-25003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOUSING, ODOMETER GEAR
26441-19B01
|
$71.67 | ||
|
Available to order. Add to View Price |
|||
|
#36
SLEEVE
26442-19B00
|
$45.52 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
26451-19B12
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#38
GEAR, DRIVE (NT:9)
26461-38F00
|
$46.74 | ||
|
Unavailable |
|||
|
#39
GEAR, DRIVE (NT:15)
26471-38F00
|
$47.28 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPACER
26481-19B00
|
$22.27 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
09103-06201
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT (6X10)
09135-06013
Superseded by 09135-06501
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER (6.2X11X1.2)
09168-06004
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER (15X20X1.0)
09181-15111
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#45
SHIM,17X24X1 (17X24X1.0)
09181-17139
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#46
O RING (D:1.9,ID:16.6)
09280-17004
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SEAL (5X12X8)
09289-05002
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#47
SEAL (5X12X8)
09283-05001
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER
08211-08151
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHAFT, DRIVE (NT:24/16)
29111-38F00
|
$299.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, DRIVE SHAFT
12281-87J00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, SUB T/M OUTPUT
29120-38F00
|
$191.22 | ||
|
Unavailable |
|||
|
#4
SPACER, SUB T/M NO.2 GEAR
29122-38F00
|
$12.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, SUB T/M COUNTER
29131-38F00
|
$103.47 | ||
|
Unavailable |
|||
|
#6
GEAR, SUB T/M DRIVEN LOW
29311-09F51
|
$204.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, SUB T/M DRIVEN
29315-09F51
|
$31.71 | ||
|
Unavailable |
|||
|
#8
GEAR, SUB T/M DRIVEN HIGH
29321-09F51
|
$193.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
DOG, SUB T/M SELECT
29331-09F50
|
$79.55 | ||
|
Available to order. Add to View Price |
|||
|
#9A
DOG, SUB T/M SELECT
29331-38F10
|
$95.17 | ||
|
Available to order. Add to View Price |
|||
|
#9B
SPACER, SUB T/M SELECT
29332-38F10
|
$26.19 | ||
|
Unavailable |
|||
|
#10
GEAR, SUB T/M DRIVE NO.2
29411-38F00
|
$87.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP SUB DRIVE NO.2
08331-31256
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, DRIVEN GEAR LOW
09167-25017
|
$4.21 | ||
|
Unavailable |
|||
|
#13
WASHER, DRIVEN GEAR HIGH
09181-25251
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, SUB T/M GEAR
09263-30018
|
$28.45 | ||
|
Unavailable |
|||
|
#15
BEARING (30X62X23.8)
09267-30005
|
$129.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING,SNAP
09380-25003
|
$3.89 | ||
|
Unavailable |
|||
|
#17
BEARING, DRIVE SHAFT LH
09262-20069
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, SUB T/M COUNTER RH
09262-20073
|
$29.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BEARING, SUB T/M COUNTER LH
09262-25003
|
$31.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, SUB T/M OUTPUT
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, SUB T/M OUTPUT LH
09262-20073
|
$29.20 | ||
|
Unavailable |
|||
|
#22
RETAINER, BEARING
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, RETAINER (6X12)
09125-06110
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SHAFT,REVERSE IDLE
24551-38F00
|
$16.98 | ||
|
Unavailable |
|||
|
#25
GEAR, REVERSE IDLE (NT:28)
24561-09F50
|
$84.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH, REVERSE IDLE GEAR
29222-44D00
|
$26.34 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, REVERSE DRIVEN (NT:32)
24571-38F00
|
$133.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
DOG, REVERSE GEAR
24581-38F00
|
$79.55 | ||
|
Available to order. Add to View Price |
|||
|
#28A
DOG, REVERSE GEAR
24581-38F10
|
$75.71 | ||
|
Available to order. Add to View Price |
|||
