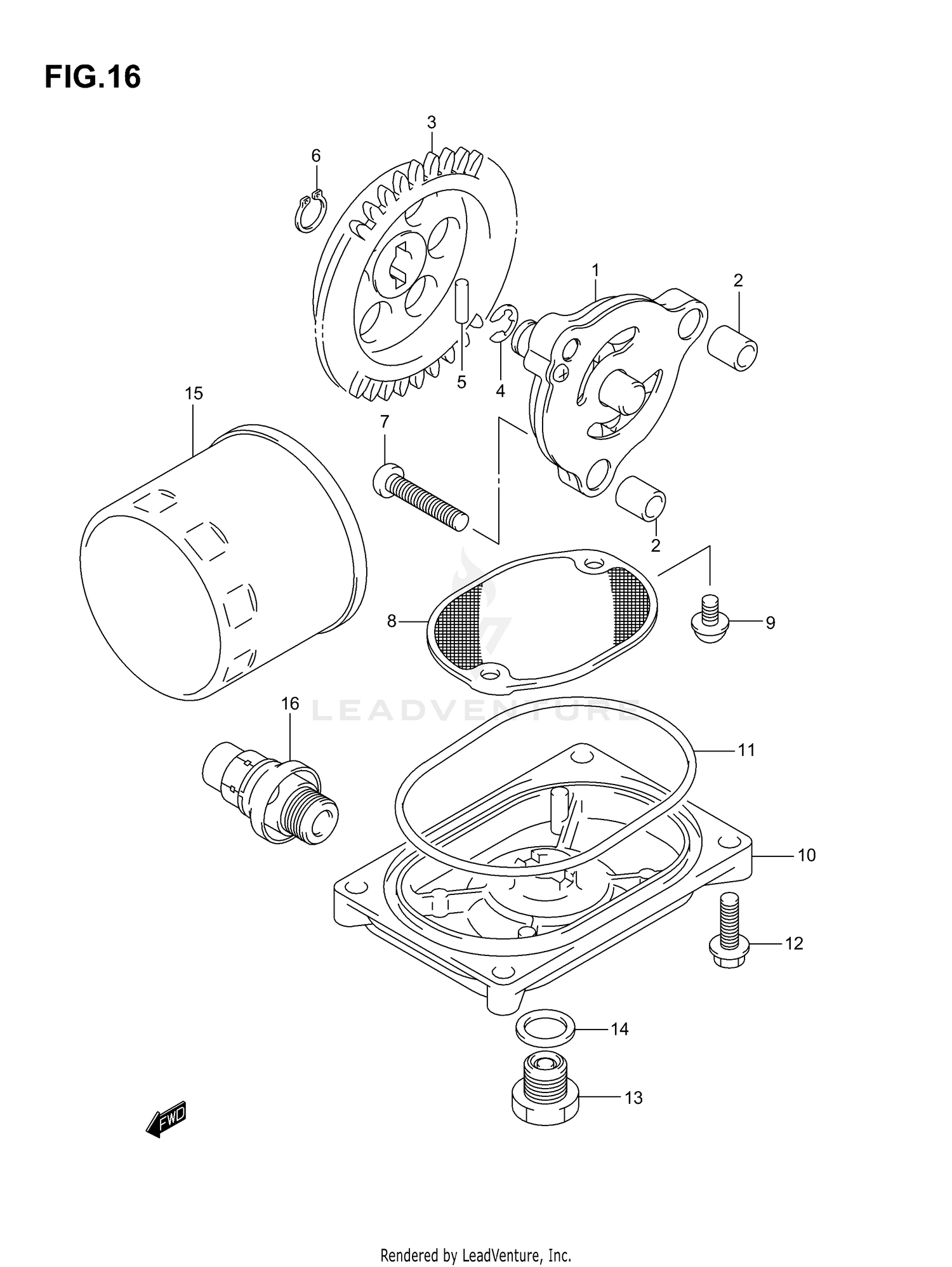

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP, ENGINE OIL
16400-38F00
|
$190.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, OIL PUMP
04211-09109
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, DRIVEN (NT:35)
16331-14D01
Superseded by 16331-14D02
|
$64.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PUMP DRIVEN GEAR
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-06253
Superseded by 02112-0625A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
STRAINER,ENGINE OIL
16520-24500
Superseded by 16520-27H00
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02112-75123
Superseded by 02112-7512A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, OIL STRAINER
16523-24501
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING
16528-24500
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG (MAGNETO)
09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#15
FILTER ASSY,ENGINE OIL
16510-03G00-X07
Superseded by 16510-07J10
|
$16.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
VALVE ASSY, OIL RELIEF
16440-27A01
|
$74.95 | ||
|
Available to order. Add to View Price |
|||
