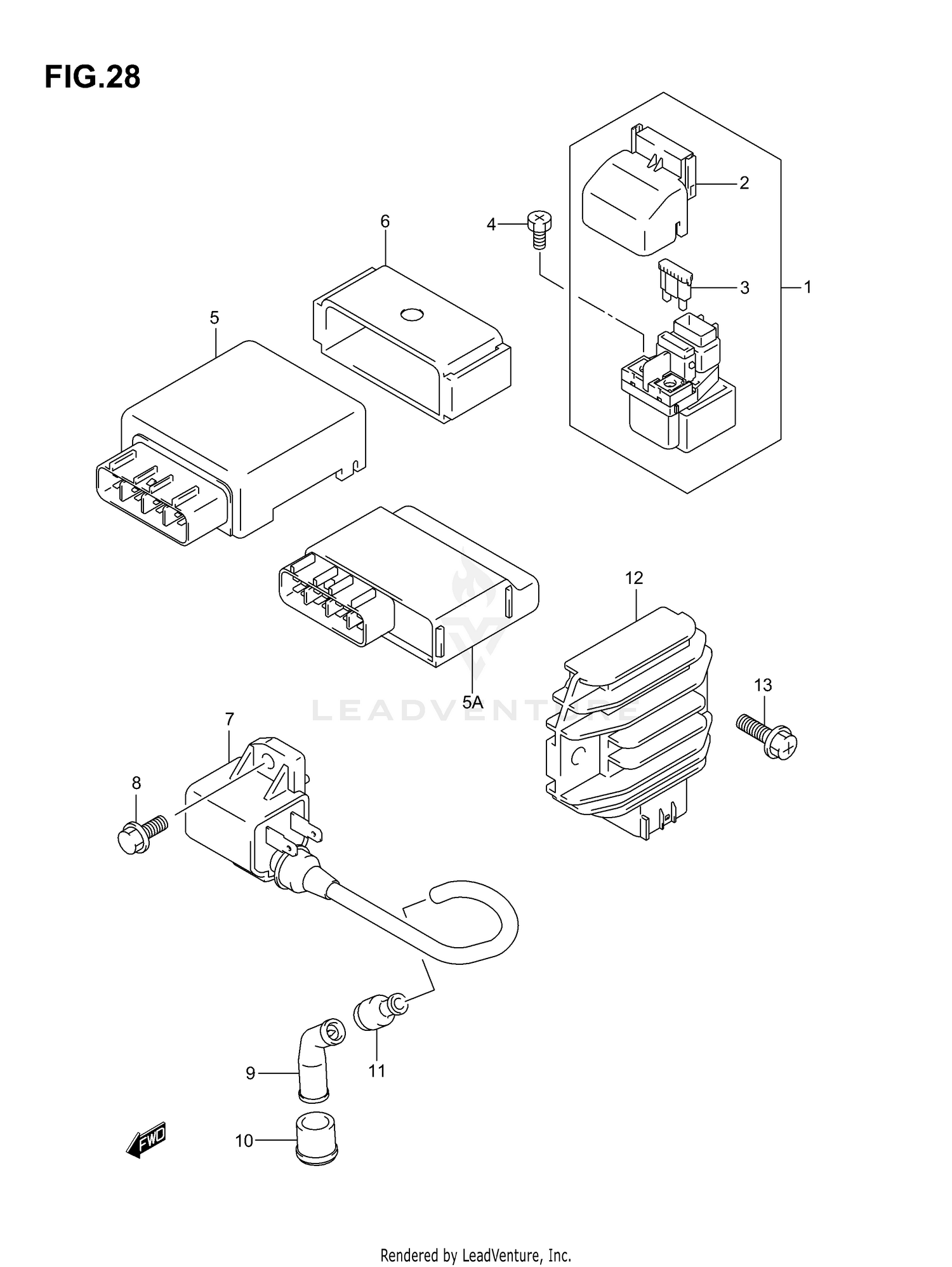

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-03G00
|
$125.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, STARTER RELAY
31861-26E00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE, 30A
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STARTING MOTOR TERM
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
CDI UNIT
32900-38F20
Superseded by 32900-38F40
|
$783.37 | ||
|
Available to order. Add to View Price |
|||
|
#5A
CDI UNIT
32900-38F40
|
$783.37 | ||
|
Unavailable |
|||
|
#6
CUSHION, CDI
32980-38F00
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY, IGNITION
33410-41D20
|
$122.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, SPARK PLUG
33510-43010
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, SPARK PLUG
33541-44D00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
RECTIFIER ASSY
32800-38F10
|
$292.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
02162-0625A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
