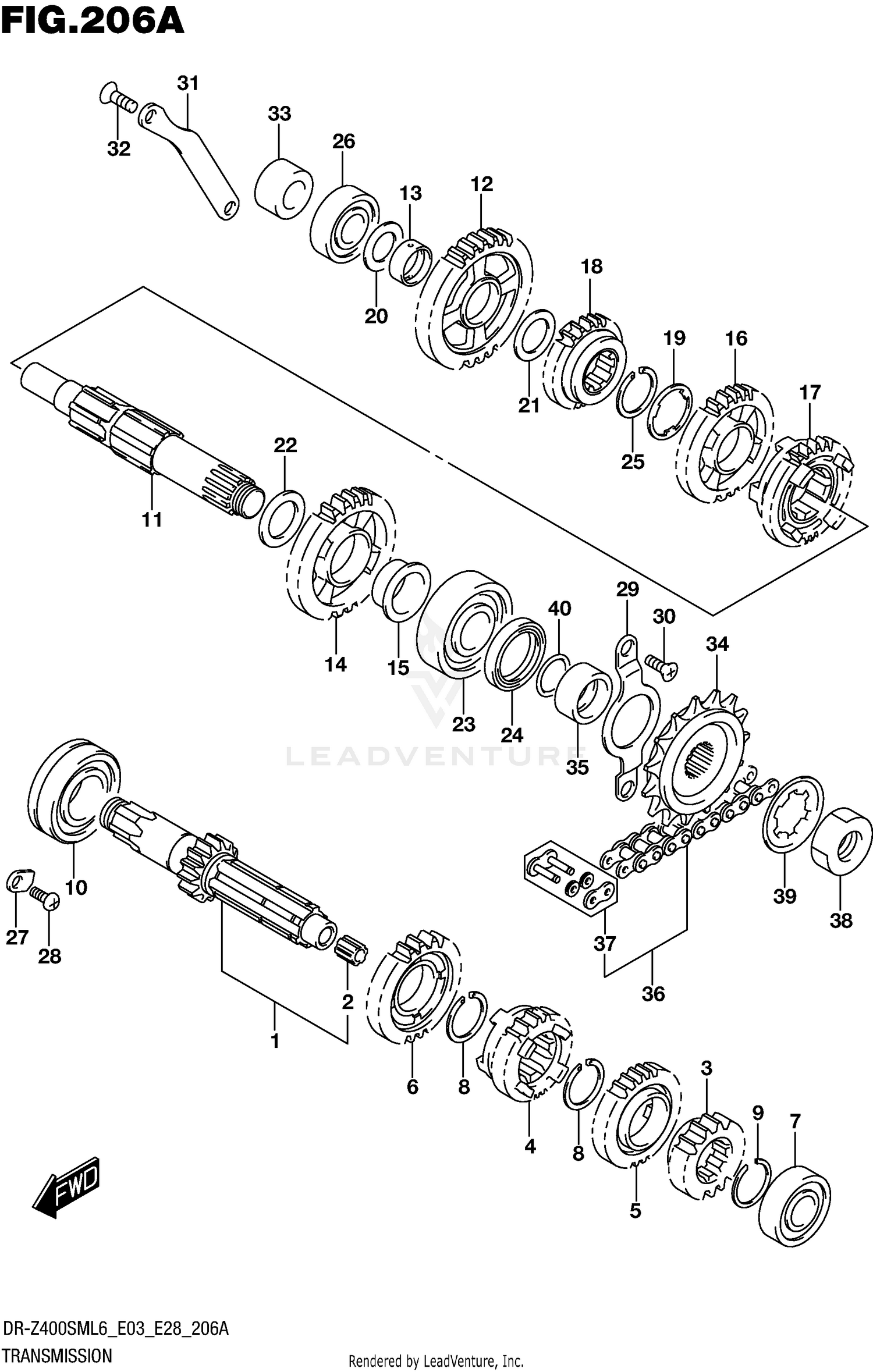

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,COUNTER (NT:14)
24120-05D20
|
$286.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BUSH
24125-38201
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,2ND DRIVE (NT:15)
24221-28C20
|
$126.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR,3RD DRIVE (NT:16)
24231-05D02
|
$145.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR,4TH DRIVE (NT:22)
24241-05D01
|
$126.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR,5TH DRIVE (NT:22)
24251-05D00
|
$126.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING (17X40X12)
09262-17027
|
$36.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
09380-25010
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
09380-25013
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING (25X52X15)
09262-25003
|
$30.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT,DRIVE
24130-05D21
|
$219.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR,1ST DRIVEN (NT:32)
24311-05D00
|
$134.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH,1ST DRIVEN GEAR
24312-29F00
|
$24.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR,2ND DRIVEN (NT:26)
24321-28C02
|
$131.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH,2ND DRIVEN GEAR
24322-44E10
|
$38.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR,3RD DRIVEN (NT:22)
24331-05D01
|
$136.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR,4TH DRIVEN (NT:24)
24341-05D01
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR,5TH DRIVEN (NT:19)
24351-05D20
|
$134.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER,LOCK (25.1X31X1.0)
09167-25012
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM (17X30X1)
09181-17223
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM (20X30X1)
09181-20195
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM (22X34X1)
09181-22223
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING (22X56X16)
09262-22024
|
$73.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (30X40X6)
09283-30053
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
09380-25010
|
$3.36 | ||
|
Unavailable |
|||
|
#26
BEARING (17X40X12)
09262-17023
|
$20.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
RETAINER, COUNTER SHAFT
24741-21A00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW (6X12)
09125-06122
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
RETAINER,DRIVE SHAFT OIL SEAL
24751-29F00
|
$8.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW (6X14)
09126-06007
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
RETAINER,KICK IDLE GEAR
26264-29F00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
02122-0616A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPACER (17X30.5X16.3)
09180-17055
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET,ENGINE
27510-29E10
Superseded by 27510-29E20
|
$35.67 | ||
|
Unavailable |
|||
|
#35
SPACER,ENGINE SPROCKET
27531-29F00
|
$28.87 | ||
|
Available to order. Add to View Price |
|||
|
#36
CHAIN ASSY,DRIVE (RK520KZO,11
27600-29F30-112
|
$177.94 | ||
|
Available to order. Add to View Price |
|||
|
#36
CHAIN ASSY,DRIVE (RK520KZO,11
27600-29F30-112
|
$177.94 | ||
|
Unavailable |
|||
|
#37
.JOINT SET,DRIVE CHAIN
27620-29F30
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
09140-18006
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER,LOCK (22.5X40.3X0.8)
09167-22012
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#40
O RING (D:2.5,ID:21)
09280-21008
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
