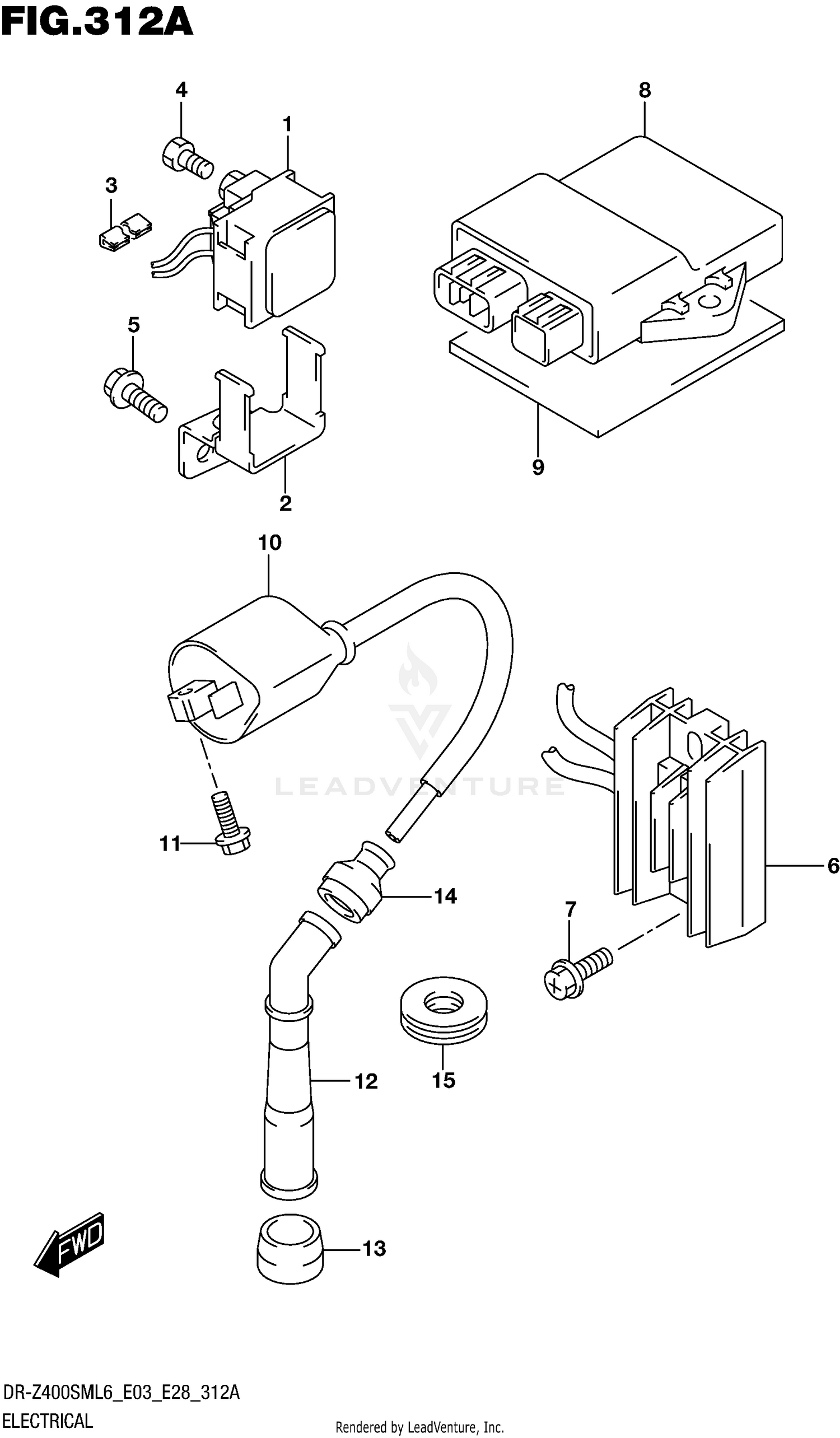

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-29F00
Superseded by 31800-29F01
|
$78.00 | ||
|
Unavailable |
|||
|
#2
BRACKET,STARTING MOTOR RELAY
31811-29F00
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR,STG MOTOR LEAD
31812-29F00
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-0612B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER ASSY
32800-29F00
|
$281.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02162-0620B
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
CDI UNIT
32900-29FD0
|
$842.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, CDI (30X50X3.0)
33652-36000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
COIL ASSY,IGNITION
33410-09F00
|
$118.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0616B
|
$2.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAP ASSY, SPARK PLUG
33510-48B10
|
$39.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, SPARK PLUG CAP
33541-23E10
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, SPARK PLUG CAP
33543-33E01
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
