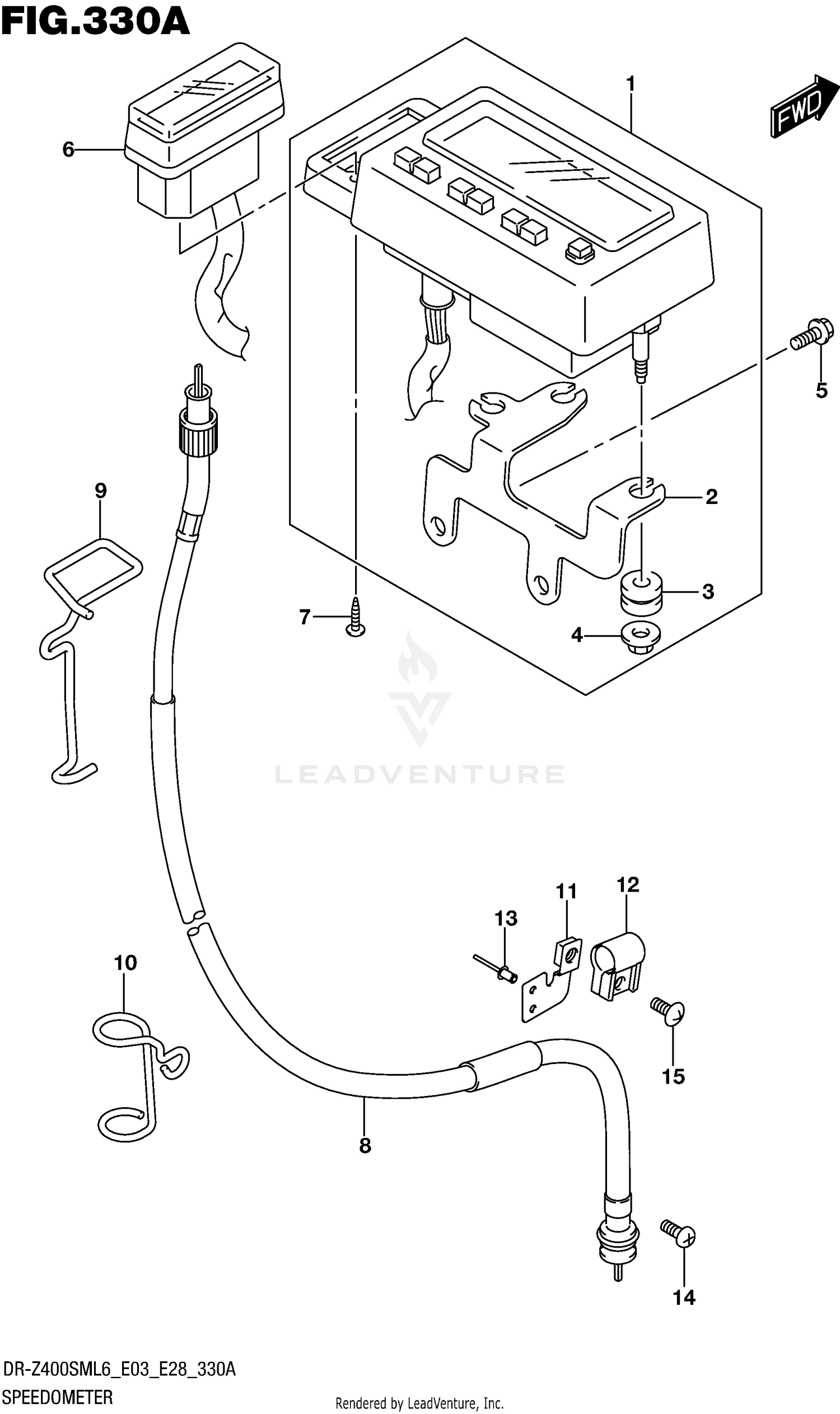

Speedometer (dr-z400sml6 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY
34100-29F40
Superseded by 34100-29F41
|
$1,149.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BRACKET
34950-29F00
|
$52.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION
34996-43410
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
.NUT
08316-1005A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOX ASSY,PILOT LAMP
36380-29F00
|
$307.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
03511-0420B
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE ASSY,SPEEDOMETER
34910-29F20
|
$52.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE,SPEEDOMETER CABLE NO.3
34938-29F10
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE,METER CABLE NO.1
34938-29F20
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE,METER CABLE NO.2
34938-29F30
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP,BRAKE HOSE
58621-07A20
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIVET
09229-03011
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
02112-0516B
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02142-0512B
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
