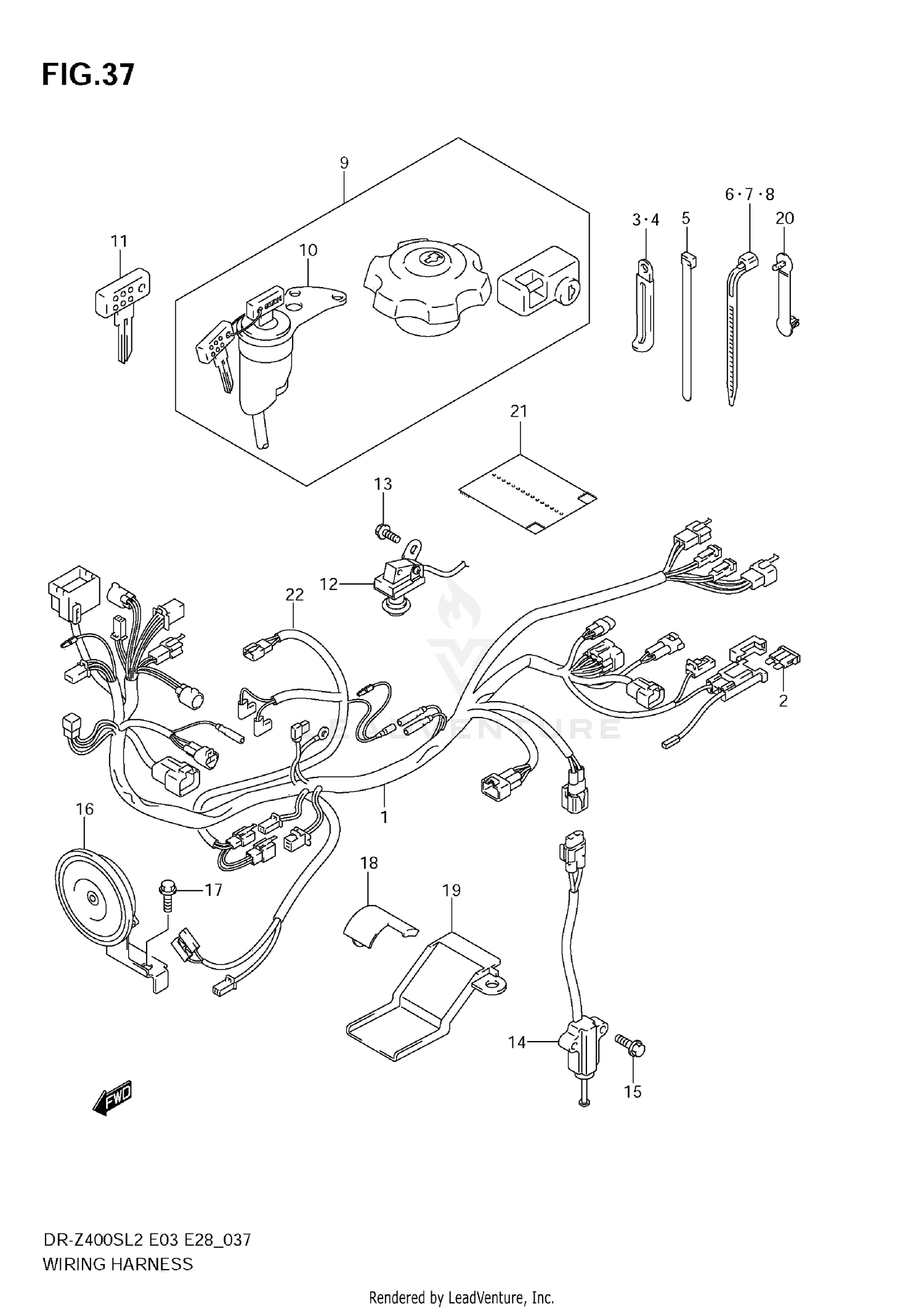

Wiring Harness (e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS WIRING
36610-29FF0
Superseded by 36610-29FF1
|
$346.69 | ||
|
Unavailable |
|||
|
#2
.FUSE (20A)
09481-20101
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#4
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:235)
09407-25401
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK SET
37000-29821
Superseded by 37000-29824
|
$218.56 | ||
|
Unavailable |
|||
|
#10
SWITCH ASSY,IGN
37110-29F00
Superseded by 37110-29F01
|
$149.57 | ||
|
Unavailable |
|||
|
#11
KEY,BLANK (TYPE:C)
37146-01F00
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY,BLANK (TYPE:D)
37146-01F10
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY,BLANK (TYPE:E)
37146-01F20
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY,BLANK (TYPE:F)
37146-01F30
|
$11.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH ASSY, STOP LAMP
37740-29F00
|
$139.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02162-0608B
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH ASSY,SID
37840-11X50
Superseded by 37840-11X52
|
$85.53 | ||
|
Unavailable |
|||
|
#15
.BOLT
01550-0616B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
HORN ASSY
38500-29F01
|
$91.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01550-0612B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR, WIRING HARNESS
36611-29F10
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTECTOR,WIRING HARNESS
36611-29F00
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, WIRING HARNESS
36651-48E00
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER WIRING HARNESS
36618-15D20
Superseded by 36618-15D21
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE,CARB HEATER
36856-29F00
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
