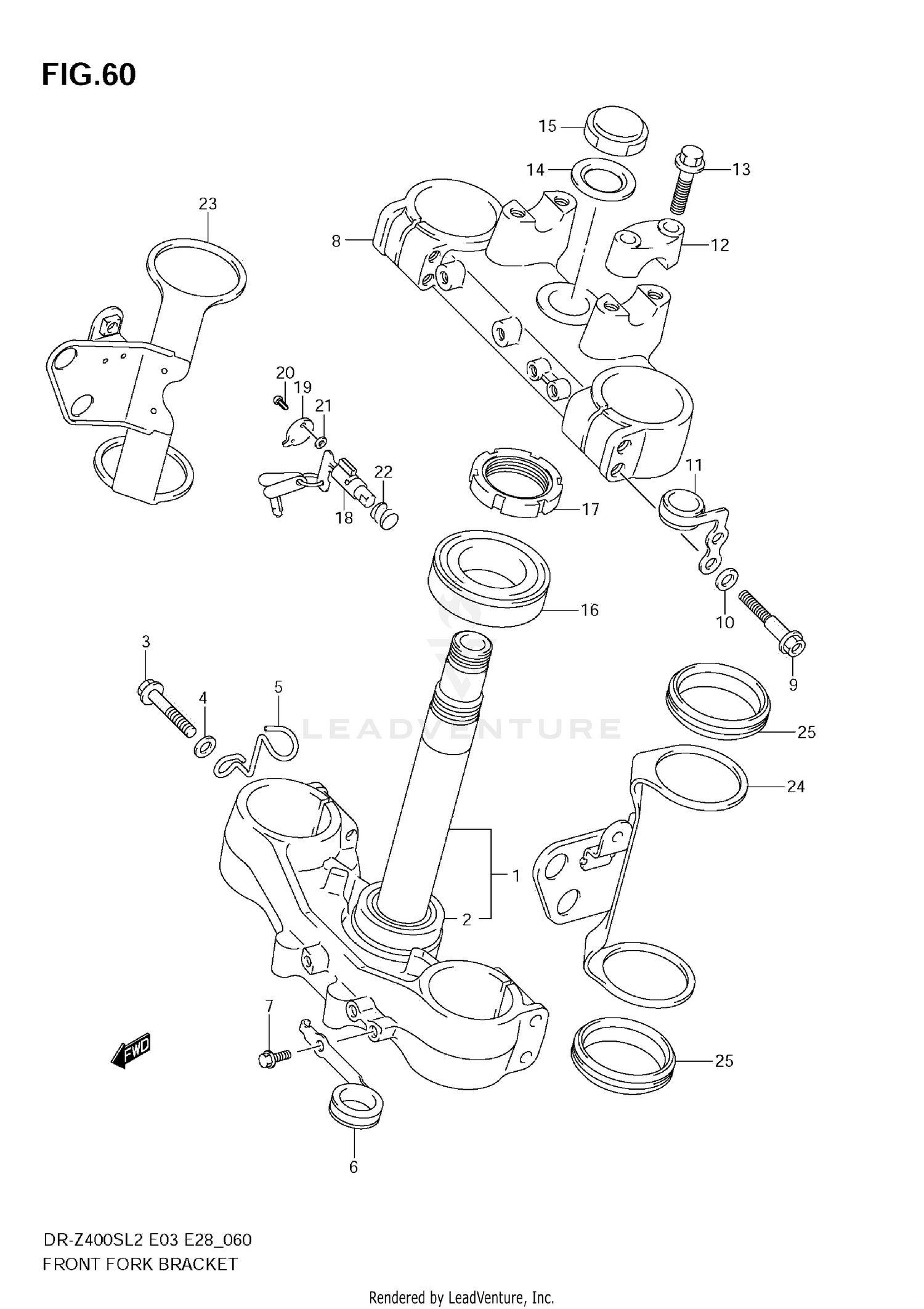

Front Fork Bracket Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET FR FORK UNDER
51410-29F20
Superseded by 51410-29F21
|
$628.08 | ||
|
Unavailable |
|||
|
#2
.BEARING (30X52X16)
09265-30014
Superseded by 09265-30035
|
$56.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, UNDER
51328-36E00
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
51316-36E00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE,SPEEDOMETER CABLE
34938-29E01
|
$12.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE,CABLE
51453-29F20
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,PROTECTOR (6X10)
58627-27C40
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,FRONT FORK,UPPER
51311-29F00
|
$416.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, UPPER
51328-29F20
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
51316-36E00
|
$4.72 | ||
|
Unavailable |
|||
|
#11
GUIDE,CABLE
51288-29F20
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER,HANDLE BAR,UPPER
56211-29F00
|
$32.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BOLT,HANDLE HOLDER (8X35)
51321-27C40
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,STEM HEAD
51356-29E00
|
$19.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
51353-27G00
|
$36.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
.BEARING (30X52X16)
09265-30014
Superseded by 09265-30035
|
$56.89 | ||
|
Unavailable |
|||
|
#17
NUT,STEERING
51631-28E00
|
$31.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK ASSY,STEERING
51900-29F00
|
$222.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP,STEERING LOCK
51912-29F00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN,STEERING LOCK
51913-29F00
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER,STEERING LOCK
51914-29F00
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING,STEERING LOCK
51931-29F00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET,HEADLAMP HOUSING RH
51530-29F00
|
$66.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET,HEADLAMP HOUSING LH
51540-29F00
|
$66.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER,HEADLAMP HSG BRACKET
51553-29F00
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
