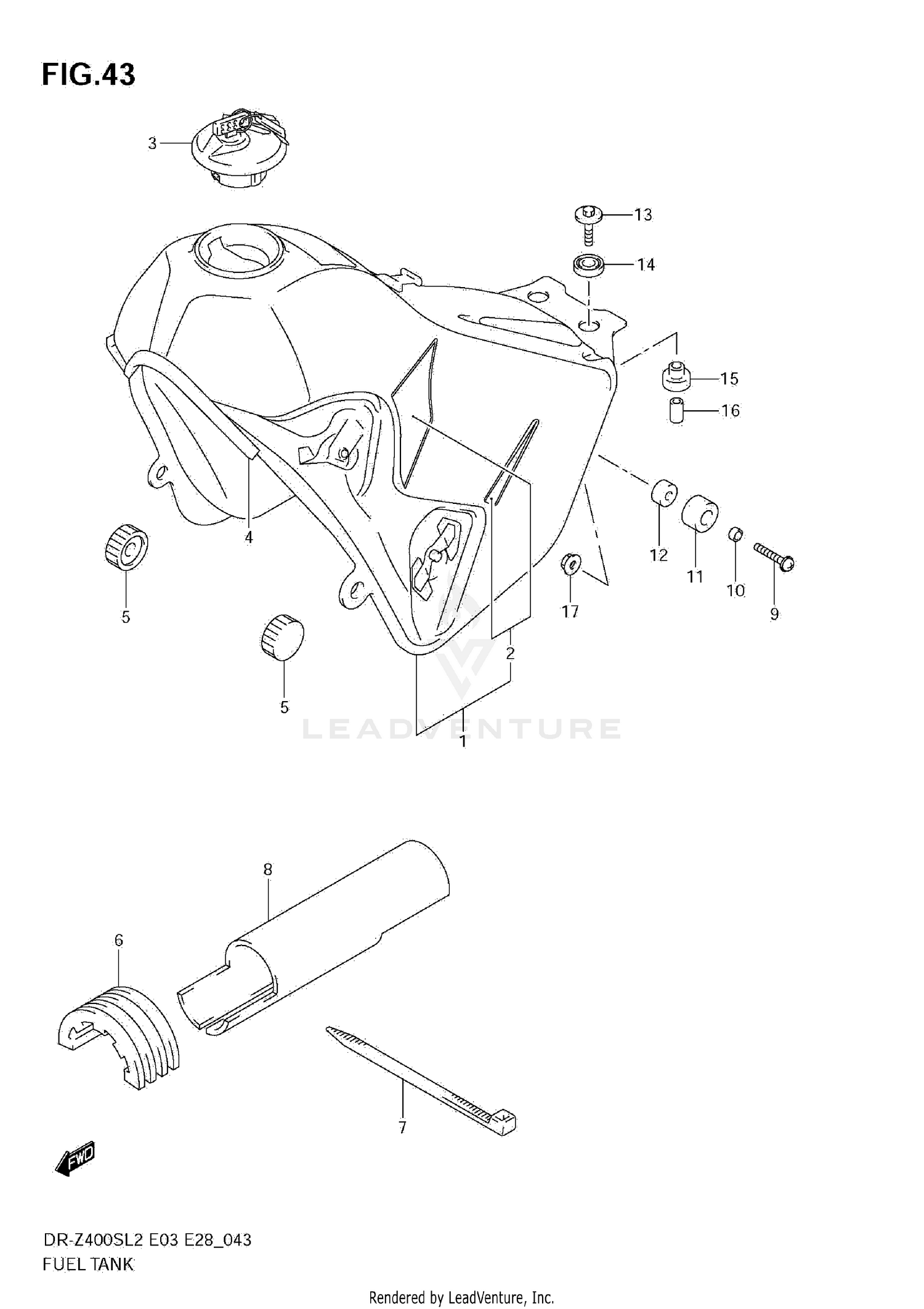

Fuel Tank (e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLACK)
49200-29F30-3WX
|
$1,055.90 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (WHITE)
49200-29F30-5UX
|
$947.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET (WHITE/BLACK)
68120-29F20-HLY
|
|||
|
Unavailable |
|||
|
#2
TAPE SET (WHITE/BLUE)
68120-29F20-HLZ
|
$47.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET FUEL TANK FILLER
44200-29820
Superseded by 44200-29821
|
$150.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOLDING (L:300)
68241-04X50-300
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09329-10016
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION,FUEL TANK
44541-29F00
|
$37.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:300)
09407-30402
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIELD,FUEL TANK
44194-29F00
|
$37.52 | ||
|
Unavailable |
|||
|
#9
SCREW
02112-1630B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X20X9)
09180-06215
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, SIDE
45149-14D00
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.5X9X5)
09180-06306
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X30)
09116-06214
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-14022
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (6.5X9X18)
09180-06271
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT
08319-3106B
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
