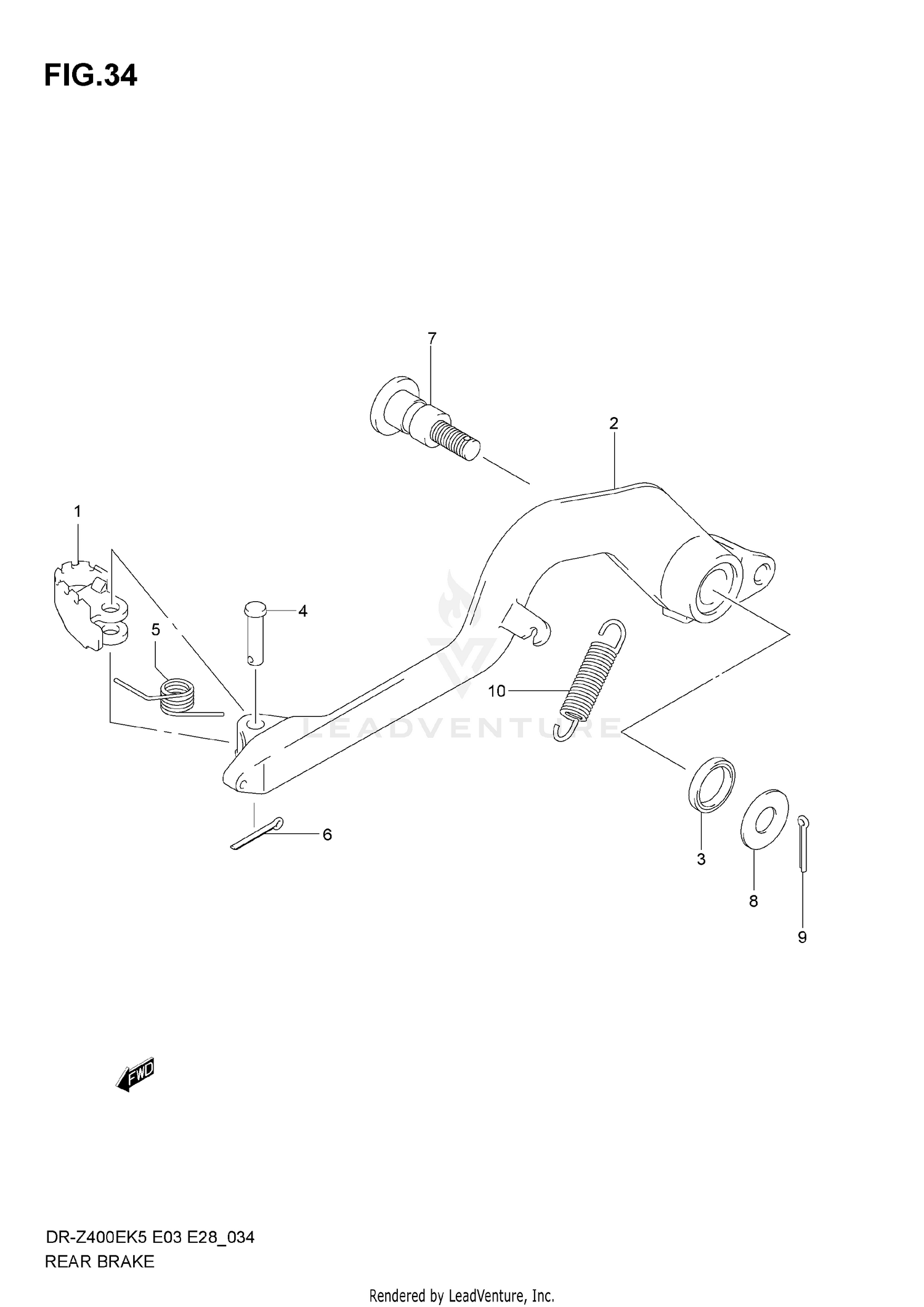

Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL,BRAKE
43110-43D00
|
$17.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, BRAKE PEDAL
43120-29F00
|
$180.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
.OIL SEAL (15X21X3)
09284-15006
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
09200-06062
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09444-11006
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,BRAKE PEDAL
43142-27C00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
08211-10261
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, PEDAL RETURN
09443-11033
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
