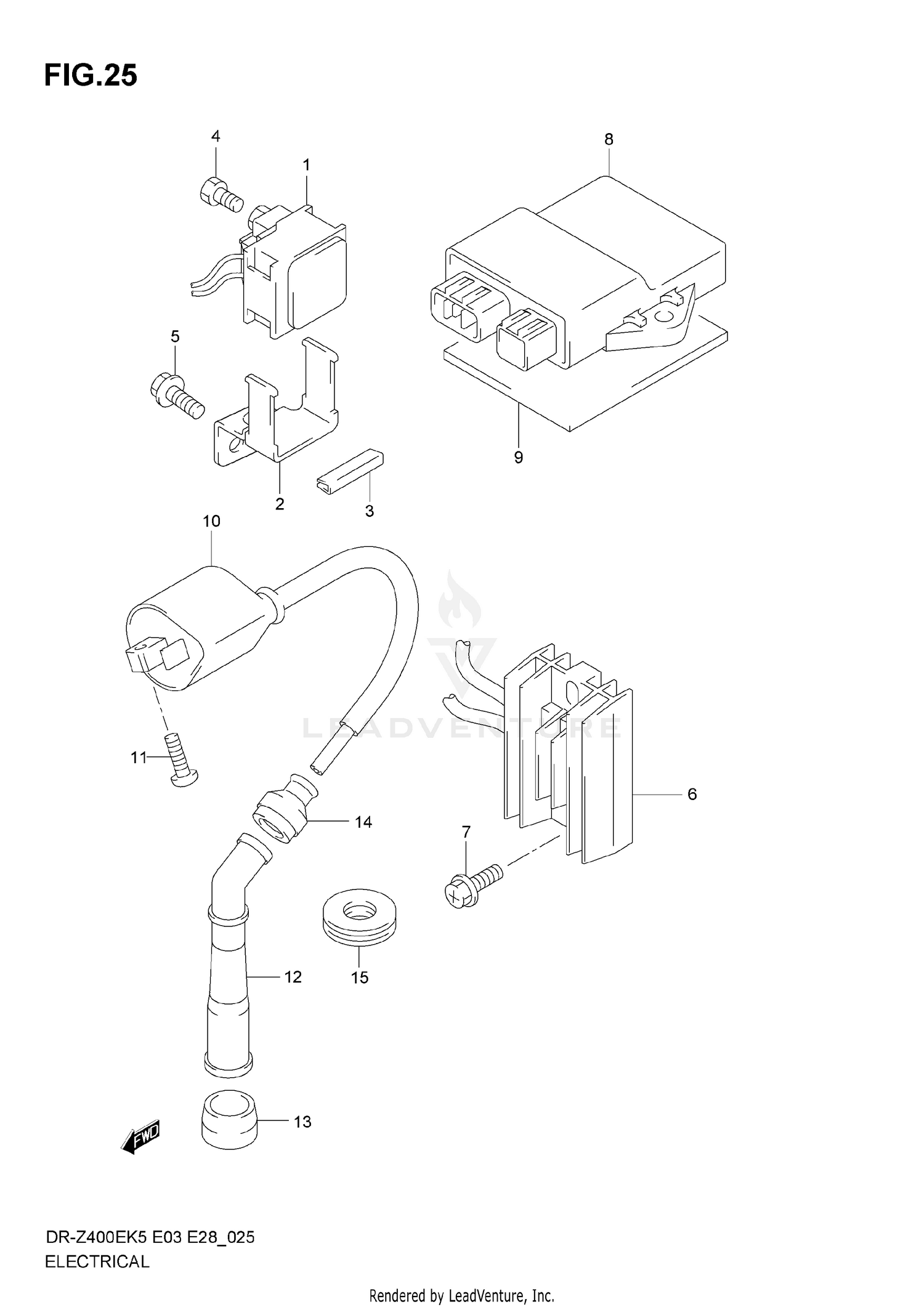

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-29F00
Superseded by 31800-29F01
|
$78.00 | ||
|
Unavailable |
|||
|
#2
BRACKET,STARTING MOTOR RELAY
31811-29F00
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR,STG MOTOR LEAD
31812-29F00
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STARTING MOTOR (6X8)
09128-06013
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, RELAY BRACKET
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RECTIFIER ASSY
32800-29F00
|
$281.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
02162-0620A
Superseded by 02162-0620C
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
CDI UNIT
32900-29F10
|
$787.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
CDI UNIT
32900-29F60
|
$707.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR (170X95X3)
33651-37000
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
COIL ASSY,IGNITION
33410-09F00
|
$118.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-06163
Superseded by 01547-0616B
|
$2.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAP ASSY, SPARK PLUG
33510-48B10
|
$39.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, SPARK PLUG CAP
33541-23E01
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, SPARK PLUG CAP
33543-33E01
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
