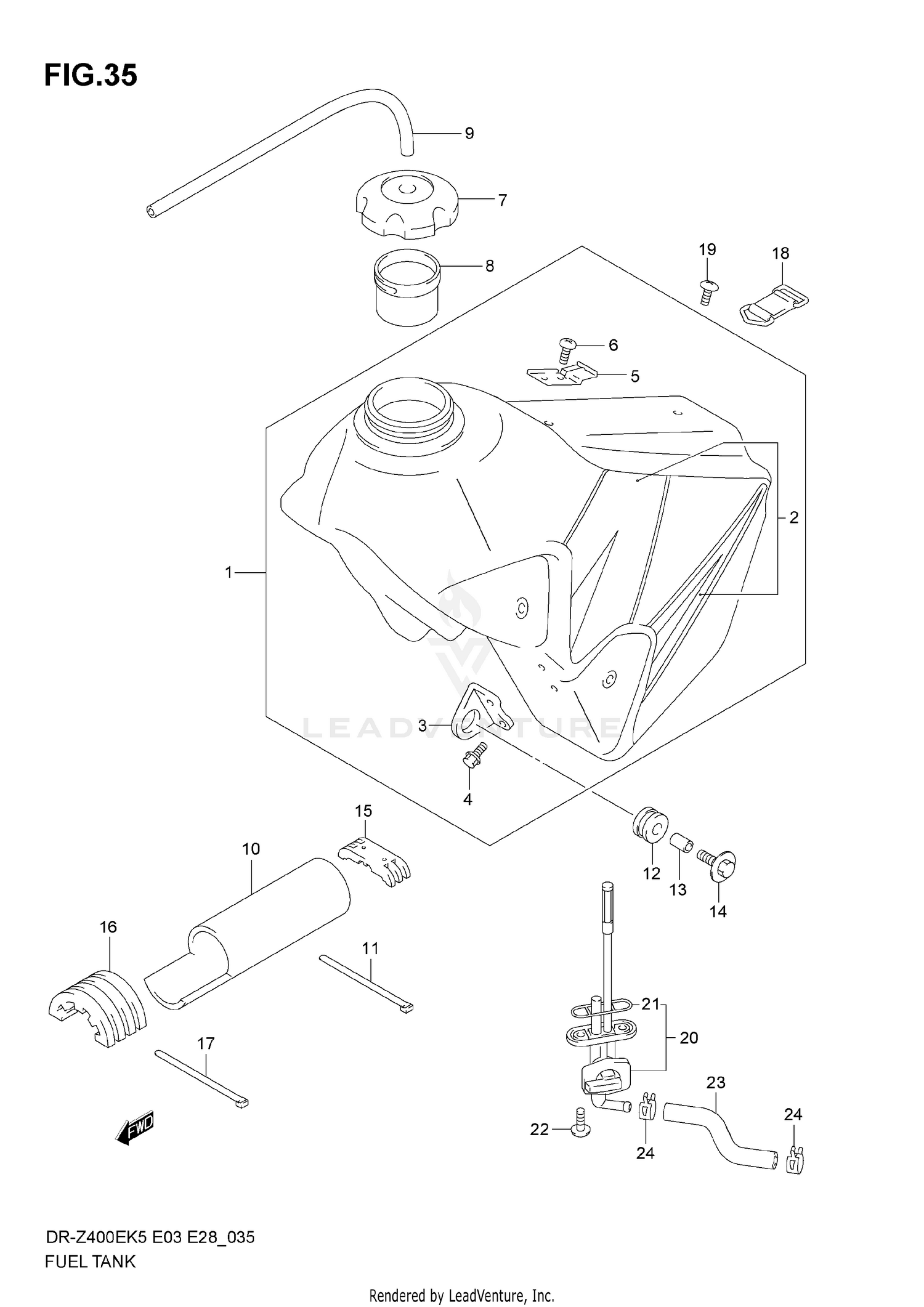

Fuel Tank (model K5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (YELLOW)
49100-29F00-YU1
|
$656.74 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-29FA0-AZR
|
$138.23 | ||
|
Unavailable |
|||
|
#3
.BRACKET, FRONT
44131-27C01
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HOOK, SEAT FRONT
44132-44E01
|
$17.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CAP ASSY,FUEL TANK FILLER
44200-29F00
Superseded by 44200-29F01
|
$49.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TUBE, TANK FILLER
44199-19A00
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIELD,FUEL TANK
44194-29F00
|
$37.52 | ||
|
Unavailable |
|||
|
#11
CLAMP
09407-30402
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION (8.7X26X14)
14762-01B01
Superseded by 14762-01B02
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (6.5X9X13.5)
09180-06268
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
09118-06112
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, REAR
44542-29F00
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION,FUEL TANK
44541-29F00
|
$39.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09407-30402
|
$5.26 | ||
|
Unavailable |
|||
|
#18
BAND, FUEL TANK REAR
44560-44E00
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COCK ASSY, FUEL
44300-29F10
|
$136.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
.GASKET JOINT
44348-87420
Superseded by 44348-87421
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01547-06163
Superseded by 01547-0616B
|
$3.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOSE,FUEL
44421-29F00
Superseded by 44421-29FR0
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE,FUEL
44421-29F10
Superseded by 44421-29FS0
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP (ID:11)
09401-11413
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
