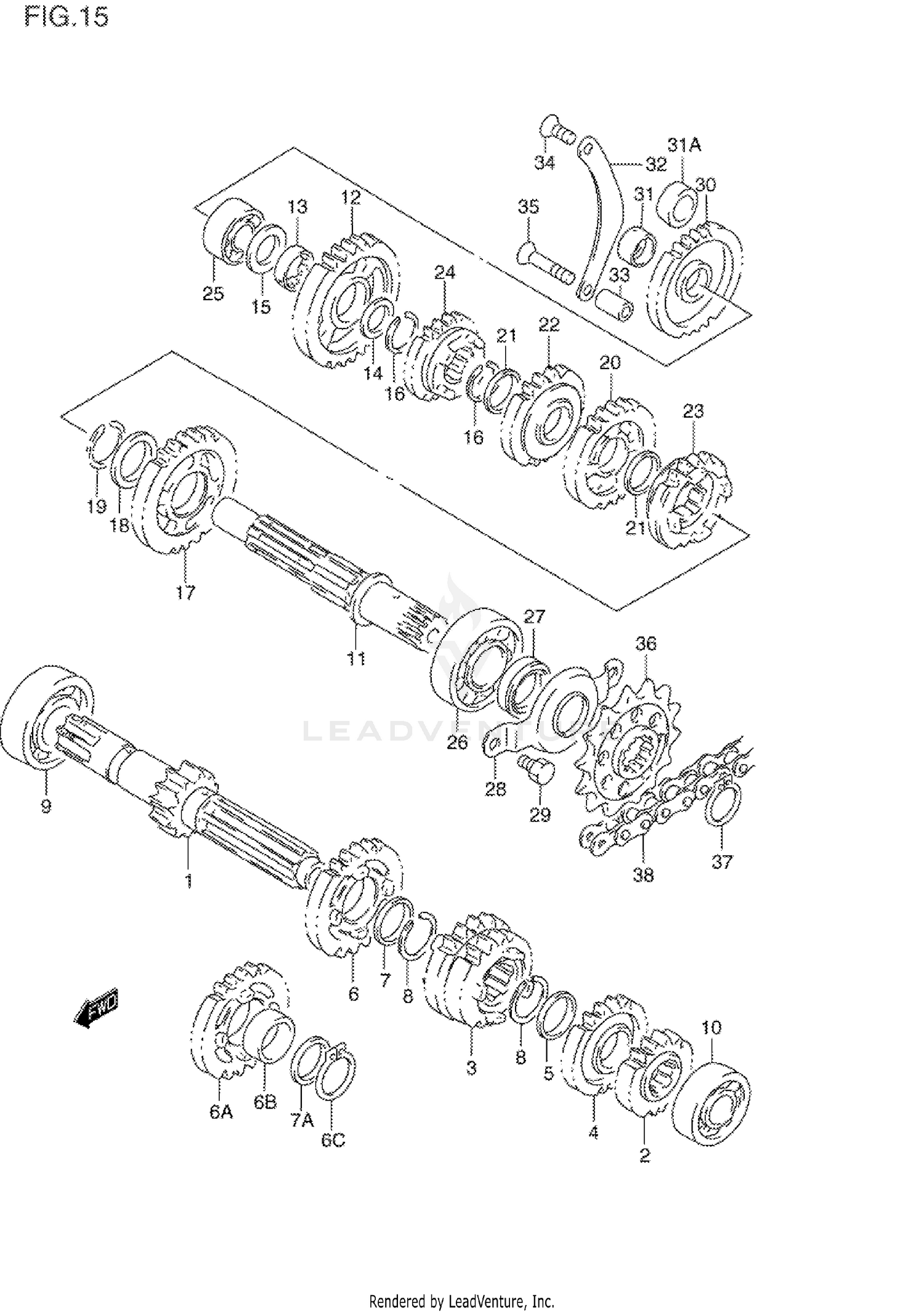

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:12)
24120-14D01
Superseded by 24120-14D03
|
$127.30 | ||
|
Available to order. Add to View Price |
|||
|
#1
COUNTERSHAFT (NT:12)
24120-14D03
|
$127.30 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:15)
24221-14D00
Superseded by 24221-14D01
|
$79.57 | ||
|
Unavailable |
|||
|
#3
GEAR, 3/4TH DRIVE (NT:18/18)
24231-14D00
|
$126.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:21)
24251-14D00
|
$104.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM
08211-22261
Superseded by 09181-22111
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH DRIVE (NT:23)
24260-14D00
|
$77.35 | ||
|
Unavailable |
|||
|
#6A
GEAR, 6TH DRIVE (NT:23)
24261-14D02
|
$100.29 | ||
|
Available to order. Add to View Price |
|||
|
#6B
BUSH, 6TH DRIVE GEAR
09300-22008
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#6C
CIRCLIP
08331-31226
Superseded by 08331-31229
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (22X28X1.0)
08211-22281
Superseded by 09181-22139
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#7A
SHIM (22X30X1)
08211-22301
Superseded by 09181-22167
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
09380-22006
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (20X52X15)
09262-20065
Superseded by 09262-20145
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (20X52X15)
09262-20116
Superseded by 09262-20145
|
$40.99 | ||
|
Unavailable |
|||
|
#10
BEARING (17X40X12)
09262-17018
Superseded by 09262-17027
|
$37.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, LH
09262-17027
|
$37.63 | ||
|
Unavailable |
|||
|
#10
BEARING (17X40X12)
09262-17018
Superseded by 09262-17027
|
$37.63 | ||
|
Unavailable |
|||
|
#11
DRIVESHAFT
24130-14D11
Superseded by 24130-14D14
|
$241.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVESHAFT
24130-14D13
Superseded by 24130-14D14
|
$241.17 | ||
|
Unavailable |
|||
|
#11
DRIVESHAFT
24130-14D14
|
$241.17 | ||
|
Unavailable |
|||
|
#12
GEAR, 1ST DRIVEN (NT:29)
24311-14D00
Superseded by 24311-14D01
|
$75.35 | ||
|
Unavailable |
|||
|
#12
GEAR, 1ST DRIVEN (NT:30)
24311-15D00
|
$113.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH
24312-14D00
|
$24.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LH
08211-17322
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM (22X30X1)
08211-22301
Superseded by 09181-22167
|
$3.77 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
09380-22006
|
$3.89 | ||
|
Unavailable |
|||
|
#17
GEAR, 2ND DRIVEN (NT:26)
24320-14D00
|
$106.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, 5TH DRIVE
08211-25341
Superseded by 09181-25167
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
09380-25010
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 3RD DRIVEN CNT:24)
24331-14D00
Superseded by 24331-14D01
|
$106.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 3RD DRIVEN (NT:24)
24331-14D01
|
$106.85 | ||
|
Unavailable |
|||
|
#21
WASHER (22X28X1.0)
08211-22281
Superseded by 09181-22139
|
$3.79 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH DRIVEN (NT:20)
24341-14D00
|
$97.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 5TH DRIVEN (NT:20)
24351-14D00
Superseded by 24351-14D01
|
$80.75 | ||
|
Unavailable |
|||
|
#24
GEAR, 6TH DRIVEN (NT:19)
24361-14D00
Superseded by 24361-14D01
|
$85.42 | ||
|
Unavailable |
|||
|
#24
GEAR, 6TH DRIVEN (NT:19)
24361-14D01
|
$85.42 | ||
|
Unavailable |
|||
|
#25
BEARING, RH
09267-17003
|
$98.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, LH
09262-22024
|
$76.23 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
09283-22025
|
$17.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, OIL SEAL
24751-14D00
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01107-06126
Superseded by 01500-0612A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.24 | ||
|
Unavailable |
|||
|
#30
GEAR, KICK IDLE (NT:27)
26261-14D10
|
$82.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH, KICK STARTER IDLE GEAR
26262-14D00
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#31A
SPACER, KICK (17X25X10.5)
09180-17004
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#32
RETAINER, KICK IDLE GEAR
26264-14D00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
.SPACER (6.5X12X21)
09180-06229
Superseded by 09180-06314
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
02122-06167
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SCREW
02122-06356
Superseded by 02122-0635B
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
02122-06353
Superseded by 02122-0635B
|
$3.63 | ||
|
Unavailable |
|||
|
#36
SPROCKET, ENGINE (NT:14)
27511-14300
Superseded by 27511-47D00
|
$34.04 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPROCKET (NT:15)
27511-14320
|
$32.92 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP
09380-22012
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
CHAIN, DRIVE (DID520V7x108LE)
27600-05C10-108
Superseded by 27600-01C10-108
|
$160.37 | ||
|
Available to order. Add to View Price |
|||
|
#38
CHAIN, DRIVE (DID520V7X108LE)
27600-01C10-108
|
$160.37 | ||
|
Unavailable |
|||
