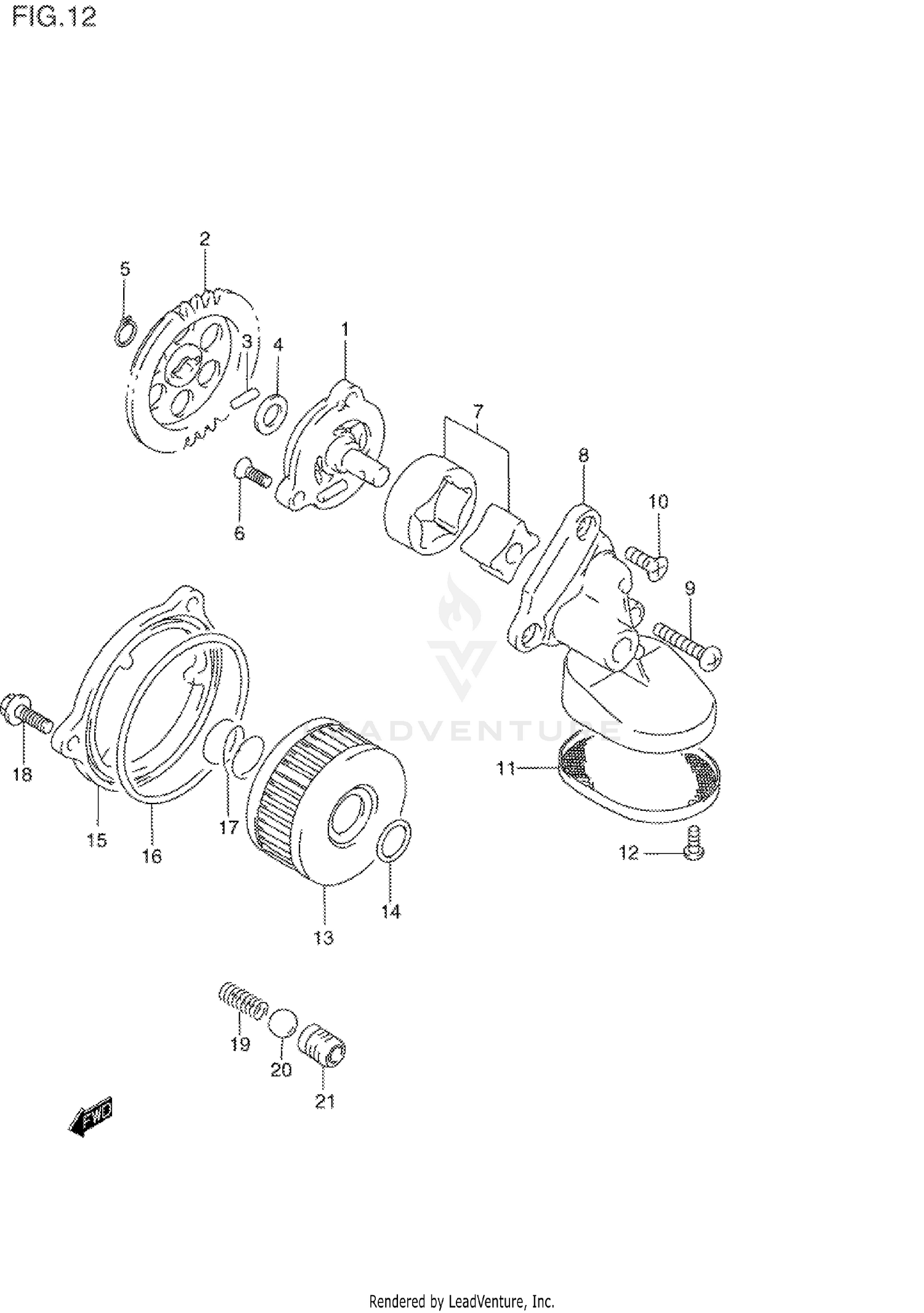

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, ENGINE OIL NO.1
16400-14D01
|
$204.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, DRIVEN (NT:35)
16331-14D00
Superseded by 16331-14D02
|
$61.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, DRIVEN (NT:35)
16331-14D01
Superseded by 16331-14D02
|
$61.46 | ||
|
Unavailable |
|||
|
#3
PIN
09261-04009
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
08221-10185
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02122-06166
Superseded by 02122-0616A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.73 | ||
|
Unavailable |
|||
|
#7
ROTOR SET, OIL PUMP
16410-14D00
|
$58.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, OIL PUMP NO.2
16431-14D01
|
$84.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, SEAT SUPPORT BRK
02112-06306
Superseded by 02112-0630A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, SEAT SUPPORT BRK
02112-06303
Superseded by 02112-0630A
|
$2.18 | ||
|
Unavailable |
|||
|
#10
SCREW
02122-06166
Superseded by 02122-0616A
|
$1.73 | ||
|
Unavailable |
|||
|
#10
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.73 | ||
|
Unavailable |
|||
|
#11
STRAINER, ENGINE OIL
16520-14D00
|
$12.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, THROTTLE
02112-05106
Superseded by 02112-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, THROTTLE
02112-05103
Superseded by 02112-0510A
|
$1.73 | ||
|
Unavailable |
|||
|
#13
FILTER, ENGINE OIL
16510-38240
|
$7.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O RING (D:2.4,ID:15.8)
09280-16005
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (D:2.4,ID:15.8)
09280-15007
|
$2.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CAP,OIL FILTER
16512-14D00
|
$39.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING (D:2.4,ID:73)
09280-72001
|
$6.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPRING
09440-21004
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09440-21006
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-06207
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
.BOLT
01547-06203
Superseded by 01547-0620B
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
09440-07073
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL
06111-12004
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT, OIL CHECK VALVE
16442-14D00
|
$38.30 | ||
|
Available to order. Add to View Price |
|||
