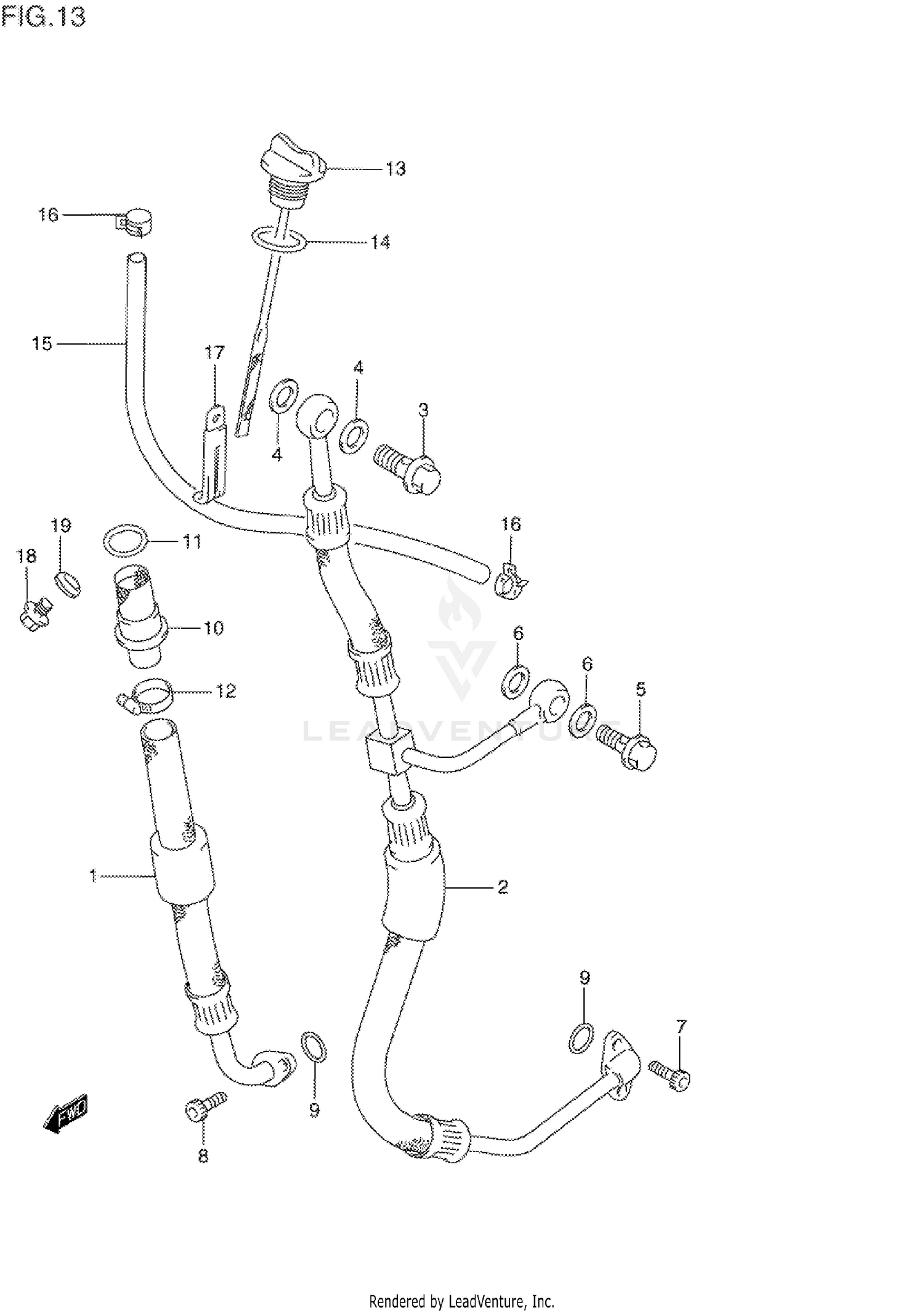

Oil Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, OIL TANK INLET
16460-14D02
Superseded by 16460-14D03
|
$146.94 | ||
|
Available to order. Add to View Price |
|||
|
#1
HOSE, OIL TANK INLET
16460-14D03
|
$146.94 | ||
|
Unavailable |
|||
|
#2
HOSE, OIL TANK OUTLET
16470-14D02
Superseded by 16470-14D51
|
$352.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, OIL TANK OUTLET
16470-14D50
Superseded by 16470-14D51
|
$352.81 | ||
|
Unavailable |
|||
|
#2
HOSE, OIL TANK OUTLET
16470-14D51
|
$352.81 | ||
|
Unavailable |
|||
|
#3
BOLT, UNION
09360-16002
|
$18.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET (16X22X2)
09168-16003
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, UNION (12X27)
09360-12009
Superseded by 09360-12008
|
$12.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, UNION (12X27)
09360-12010
Superseded by 09360-12008
|
$12.10 | ||
|
Unavailable |
|||
|
#6
GASKET (12X16.5X1.5)
09168-12010
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (12X17.0X1.0)
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07110-06165
Superseded by 07130-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07130-06163
Superseded by 07130-0616B
|
$2.95 | ||
|
Unavailable |
|||
|
#8
BOLT, FRONT BRG HOUSING
07110-06205
Superseded by 07130-0620B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FRONT BRG HOUSING
07130-06203
Superseded by 07130-0620B
|
$3.89 | ||
|
Unavailable |
|||
|
#9
O-RING (D:2.4,ID:12.3)
09280-12008
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRAINER, FRAME HEAD UNDER
16550-14D02
|
$61.98 | ||
|
Unavailable |
|||
|
#11
O RING (D:3.1,ID:22.7)
09280-22008
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP
09402-22502
Superseded by 09402-22511
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
09402-22511
|
$8.88 | ||
|
Unavailable |
|||
|
#13
GAUGE, OIL LEVEL
16560-14D01
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOSE, OIL OVER FLOW
16480-14D00
Superseded by 16480-47D00
|
$26.38 | ||
|
Unavailable |
|||
|
#15
HOSE, OIL OVER FLOW
16480-47D00
|
$26.38 | ||
|
Unavailable |
|||
|
#16
CLIP (ID:11.5)
09401-12406
Superseded by 09401-11415
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP (ID:11.5)
09401-11407
Superseded by 09401-11415
|
$2.80 | ||
|
Unavailable |
|||
|
#17
CLAMP
09404-06607
|
$1.87 | ||
|
Unavailable |
|||
|
#18
PLUG, DRAIN
09247-10001
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, DRAIN
09247-10008
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
09168-10002
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
