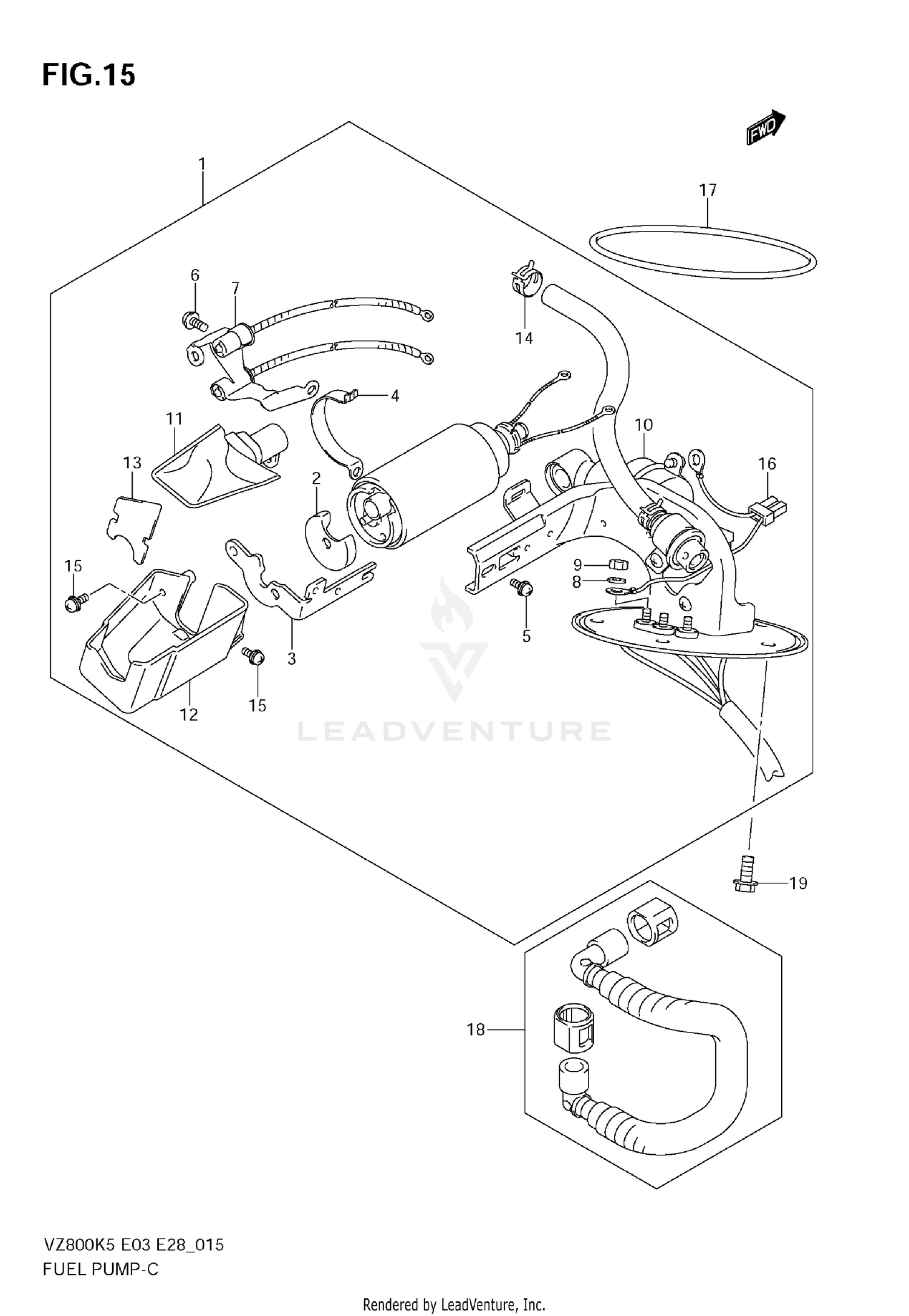

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, FUEL
15100-39G00
|
$817.87 | ||
|
Available to order. Add to View Price |
|||
|
#1
PUMP ASSY, FUEL
15100-39G10
|
$817.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION
15111-41F10
|
$19.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER
15112-39G00
|
$16.42 | ||
|
Unavailable |
|||
|
#4
BAND, FUEL PUMP
15115-10F00
|
$16.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
15116-10F00
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
15116-10F10
|
$3.38 | ||
|
Unavailable |
|||
|
#7
THERMISTOR
15170-39G00
|
$319.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
THERMISTOR
15170-39G10
|
$237.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING WASHER
15172-35F00
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
15173-35F00
|
$5.26 | ||
|
Unavailable |
|||
|
#10
PLATE ASSY
15410-39G00
|
$305.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
STRAINER, FUEL
15420-39G00
|
$115.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
VESSEL
15425-39G00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
COVER
15426-39G00
|
$11.79 | ||
|
Unavailable |
|||
|
#14
CLIP
15427-39G00
|
$7.94 | ||
|
Unavailable |
|||
|
#15
SCREW
15429-41F20
|
$3.38 | ||
|
Unavailable |
|||
|
#16
HARNESS
15185-39G10
|
$67.77 | ||
|
Unavailable |
|||
|
#17
O-RING,FUEL PUMP
15201-35F00
|
$35.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HOSE, FUEL
15810-41F00
|
$74.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, FUEL
15810-39G00
Superseded by 15810-39G03
|
$62.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
07120-0612B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
