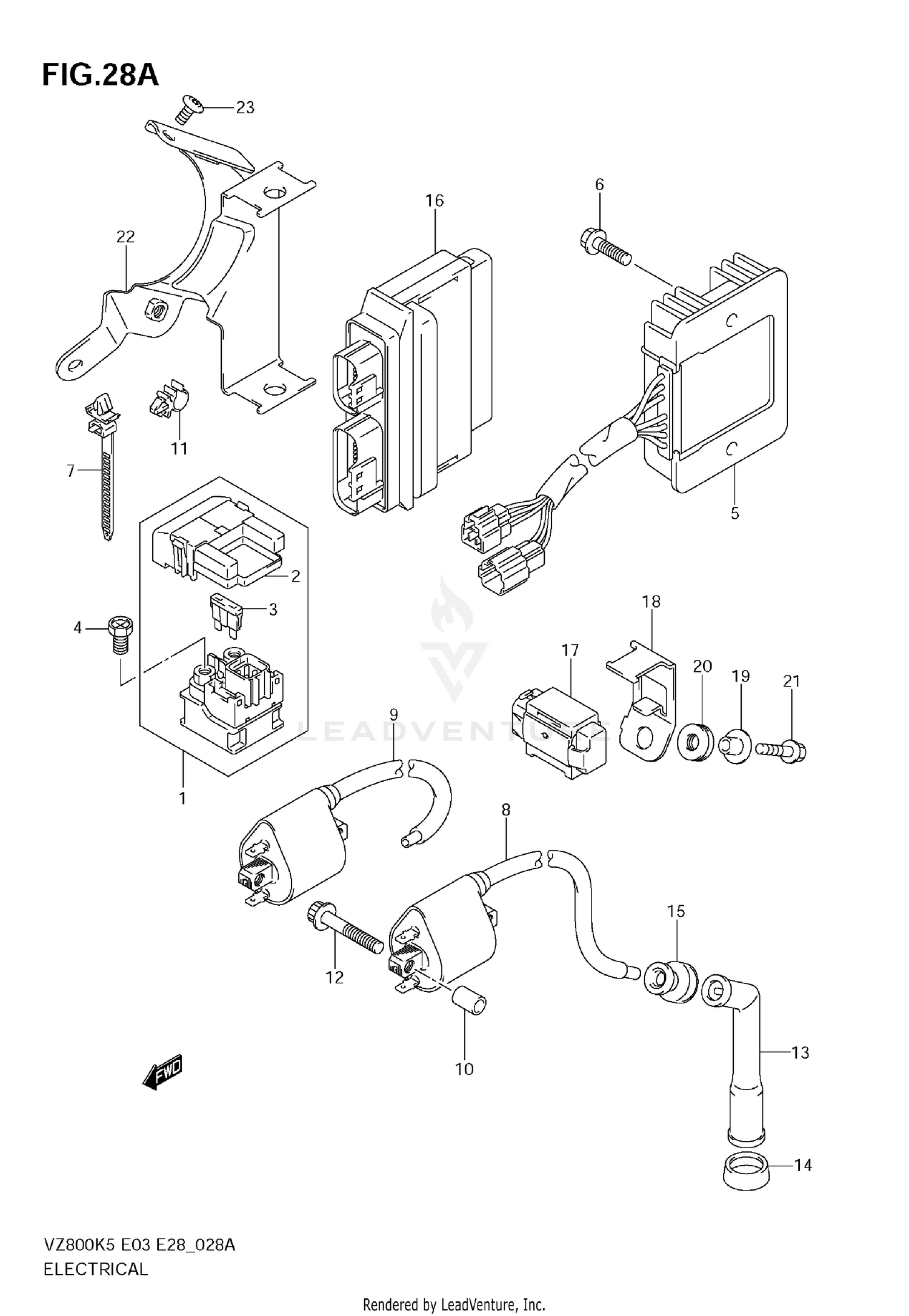

Electrical (model K9 E3,e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-21E20
Superseded by 31800-21E30
|
$86.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, RELAY ASSY
31861-47E00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (30A)
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6x8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-41F11
Superseded by 32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
02162-0620B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:90)
09407-11402
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
COIL ASSY,IGNITION
33410-17G00
Superseded by 33410-17G01
|
$96.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL ASSY,IGNITION
33420-41F10
Superseded by 33420-41F11
|
$97.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.4x10x18)
09180-06195
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
09403-07308
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, IGNITION COIL (5x35)
09106-05033
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, SPARK PLUG
33510-11410
|
$33.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, SPARK PLUG
33541-47D00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
CONTROL UNIT, FI
32920-39GB0
|
$1,810.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, FUEL CUT
33961-41F00
|
$3.58 | ||
|
Unavailable |
|||
|
#19
SPACER, FUEL CUT
09180-06325
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION (8X18X5.8)
09320-06017
Superseded by 09320-08516
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FUEL CUT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, FI UNIT
44880-43H00
|
$21.50 | ||
|
Unavailable |
|||
|
#23
BOLT, FI UNIT (6x12)
09139-06108
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
