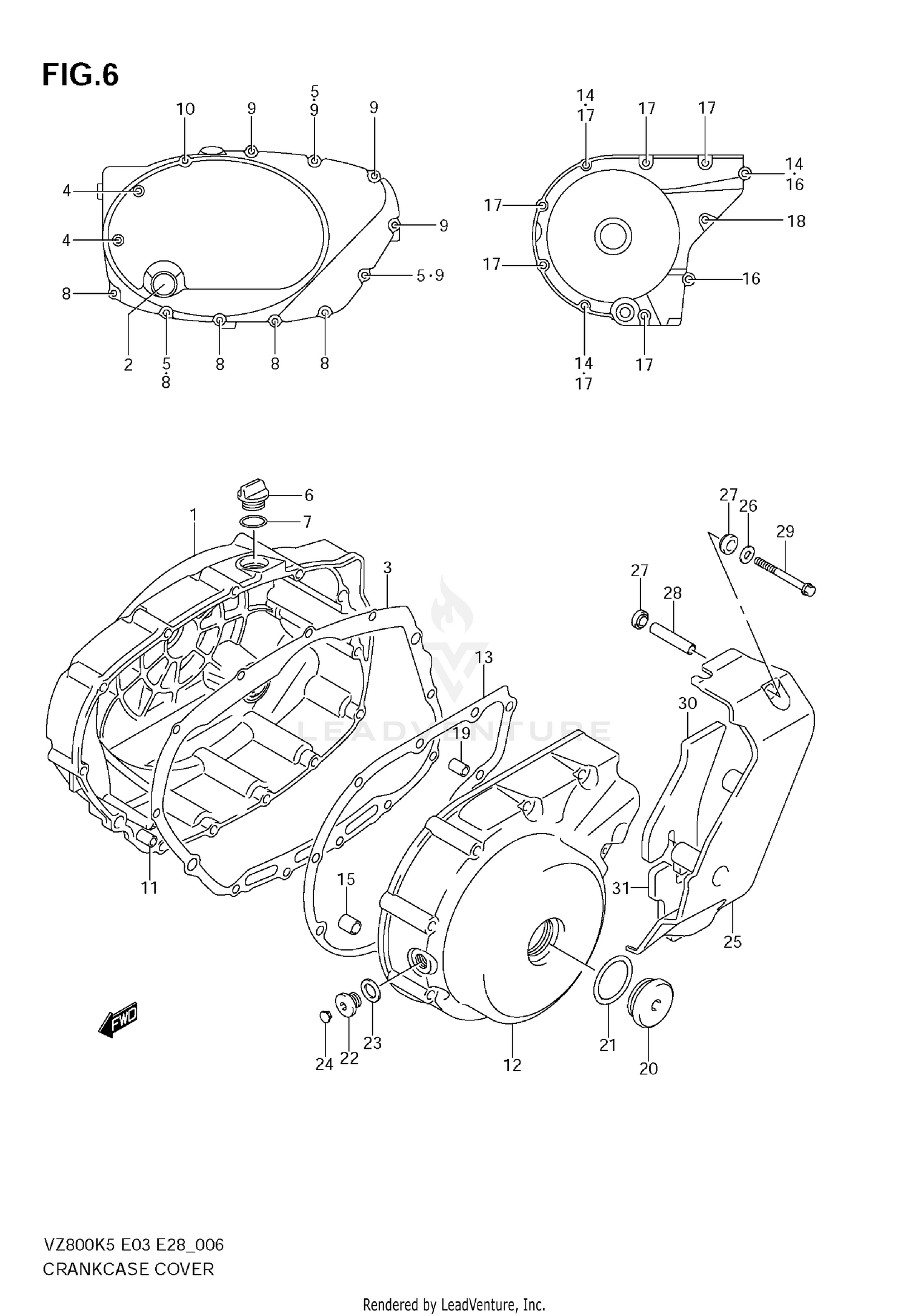

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-39G00
|
$302.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,CLUTCH COVER
11482-41F00
|
$22.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (L:105)
09103-06270
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT (L:30)
09103-06213
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (L:50)
09103-06238
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (L:85)
09103-06226
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, GENERATOR
11351-39G00
Superseded by 11351-39G01
|
$409.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET,GENERATOR COVER
11483-41F00
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, GENERATOR COVER BOLT
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#15
PIN (11x20)
09206-11007
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (L:40)
09103-06215
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (L:55)
09103-06216
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (L:85)
09103-06226
|
$4.19 | ||
|
Unavailable |
|||
|
#19
PIN
04211-09189
|
$2.05 | ||
|
Unavailable |
|||
|
#20
PLUG, CRANKSHAFT HOLE
09259-36008
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING
09280-33004
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PLUG, SHAFT
09248-14005
Superseded by 09248-14011
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#24
CAP, T.D.C.PLUG
09250-08012
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, SECONDARY DRIVE
11361-39G00
|
$191.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
09160-06125
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
CUSHION
09161-09005
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER
09180-06280
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (L:55)
09103-06216
|
$3.33 | ||
|
Unavailable |
|||
|
#30
CUSHION, SEC DRIVE COVER NO.1
11362-39G00
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION, SEC DRIVE COVER NO.2
11363-39G00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
