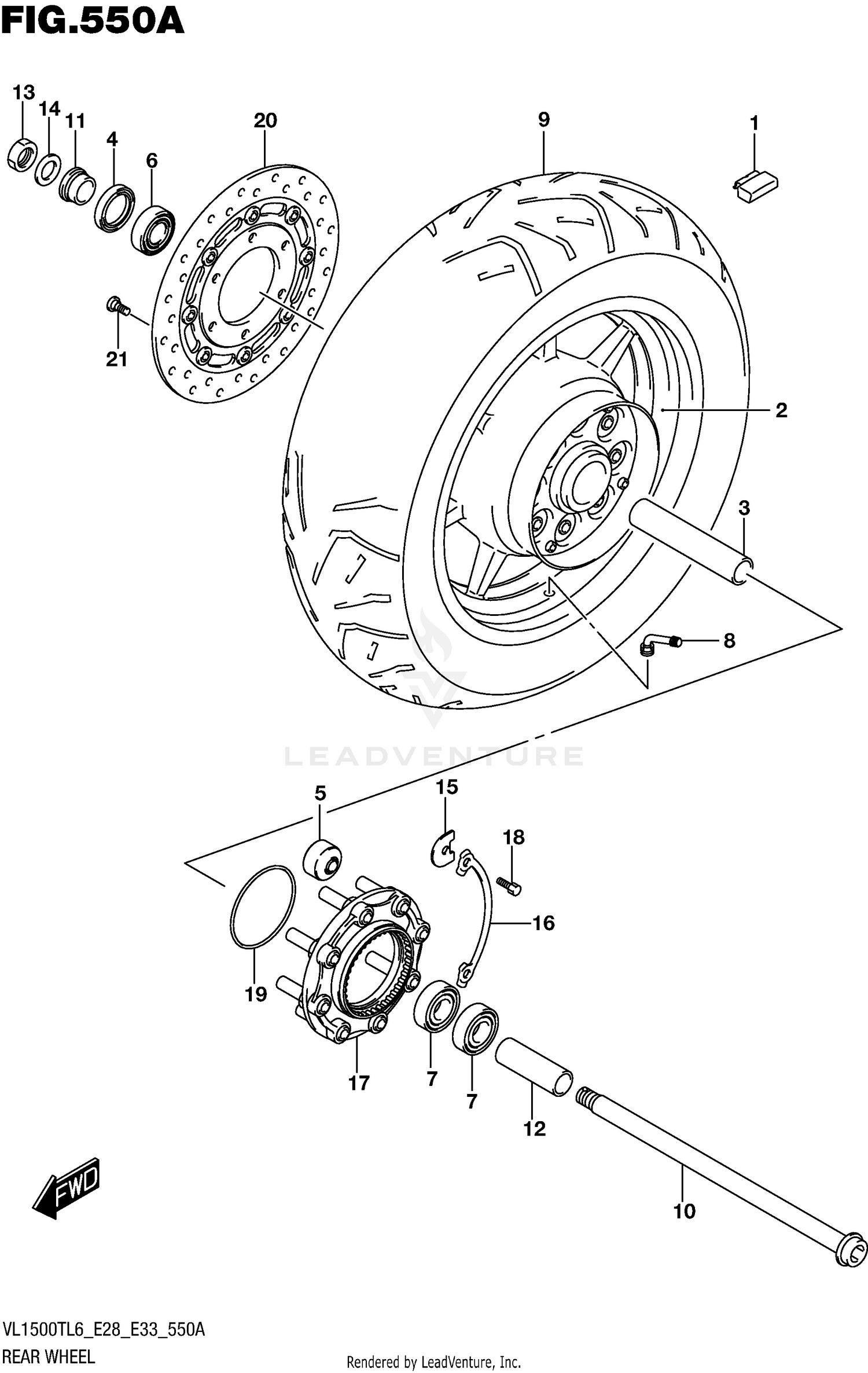

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
BALANCER,WHEEL NO.1 (10G)
55411-22H00
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
BALANCER,WHEEL NO.2 (20G)
55412-22H00
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#1-3
BALANCER,WHEEL NO.3 (30G)
55413-22H00
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
WHEEL, REAR (16M/CXMT5.50)
64111-06J10-20H
|
$904.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
(SILVER)
64111-06J10-20H
|
$904.03 | ||
|
Unavailable |
|||
|
#3
SPACER, REAR WHEEL BEARING
64731-40H00
|
$44.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL (32X52X7)
09285-32004
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
09319-12019
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING (25X52X15)
09262-25167
Superseded by 09262-25191
|
$29.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING (25X52X15)
08143-62057
|
$29.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY, WHEEL RIM (PVR100
43130-39H00
|
$63.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE, REAR (200/60R16M/C 79H)
65110-06J00
|
$651.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE
65110-06J00
|
$651.58 | ||
|
Unavailable |
|||
|
#10
AXLE, REAR
64711-48G00
|
$232.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, REAR AXLE RH
64741-48G00
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER, REAR AXLE LH
64772-48G00
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09159-22007
|
$23.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (22X35X2)
09160-22081
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST
64677-48G10
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, REAR HUB DRIVEN JOINT
64679-48G00
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT ASSY, REAR HUB DRIVEN
64680-48G00
|
$408.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X16)
09119-06049
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING (D:2.4,ID:79.8)
09280-80001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
DISC, REAR BRAKE
69210-10F40
|
$461.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (8X21)
09106-08160
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
